Wind Wings

PROBLEM:

SOLUTION:

MINUSES:

TOOLS / EQUIPMENT NEEDED:

DIFFICULTY RATING:

INSTRUCTIONS

PLUSES:

The following is an alteration done to one of my Reflexs. This is for informational purposes only.

Any modifications are done at your own risk. Check local laws for restrictions on some of these changes.

Windshield works real good blocks a lot of wind. In really hot weather more air is needed behind the windshield

Wind Wings ( Picture WW2 )

There are several manufactures but I would suggest Baker Built

These wind wings are from an old Gold Wing they are an older style make unknown.

They were obtained from a used parts bin at a motorcycle show.

They measure 10in log by 6 in wide. The brackets had to be bend straight to mount.

This brings air back onto the driver.

It also removes the vacuum between the driver and the windscreen.

This reduces the felt wind force coming over the windshield.

Additional rain deflection.

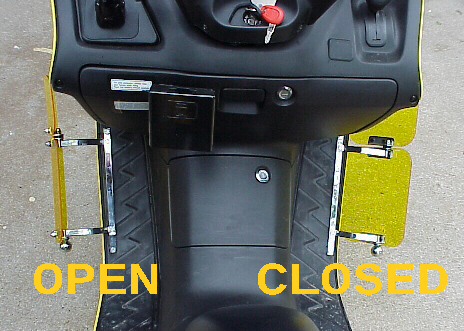

Vent can be opened and closed with your foot. ( Airflow adjustable )
( Picture WW5, WW^, WW7, WW8 )

It is possible to break them off since the hang out to the side.

You could on accident break them off with your foot.

Wings

Driver for above

Easy

Mine were put on the upsweep area between flat floorboard and bottom of dash.

2.   Hold in place and check to make sure they can be opened and closed.

3.   Make sure there is nothing under plastic that could get screwed into to.

4.   Screw wings into place. ( Picture WW4 )

5.   Test

Sheet metal or Self Tapping Screws

Enjoy
