This is a brushless ESC motor driving system for RC models. The ESC is came from new the box of RC car, it is free! The ESC and motor are sensored-type, it's mean is need the feedback signal return to ESC. |
|||
|

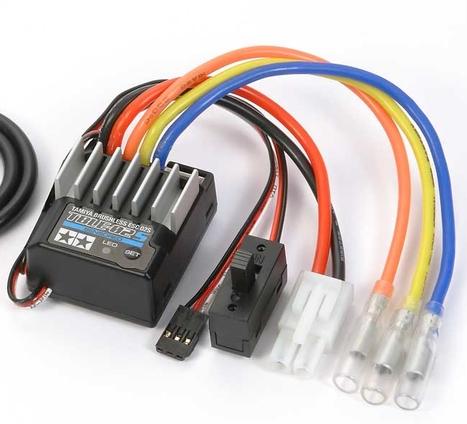

The connecting.  Tble-02S

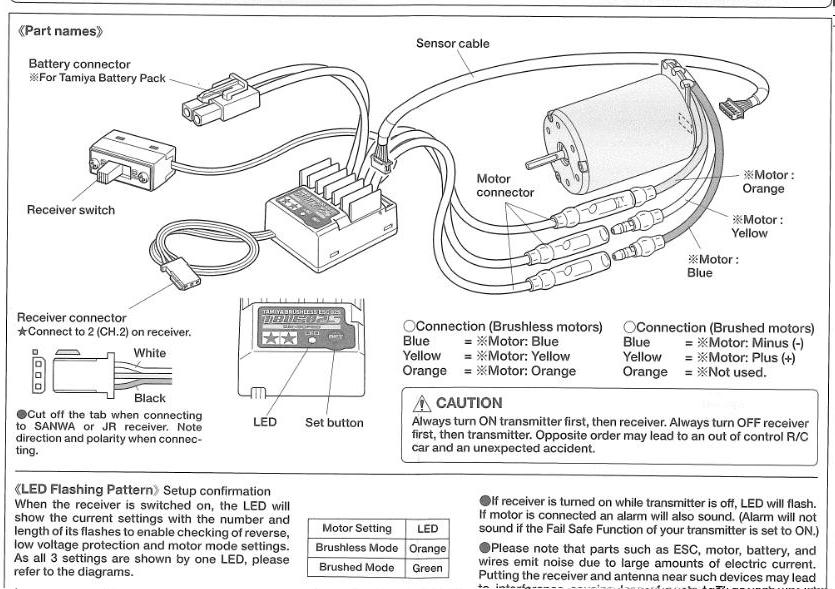

Brushless Esc manual
|
|||
|

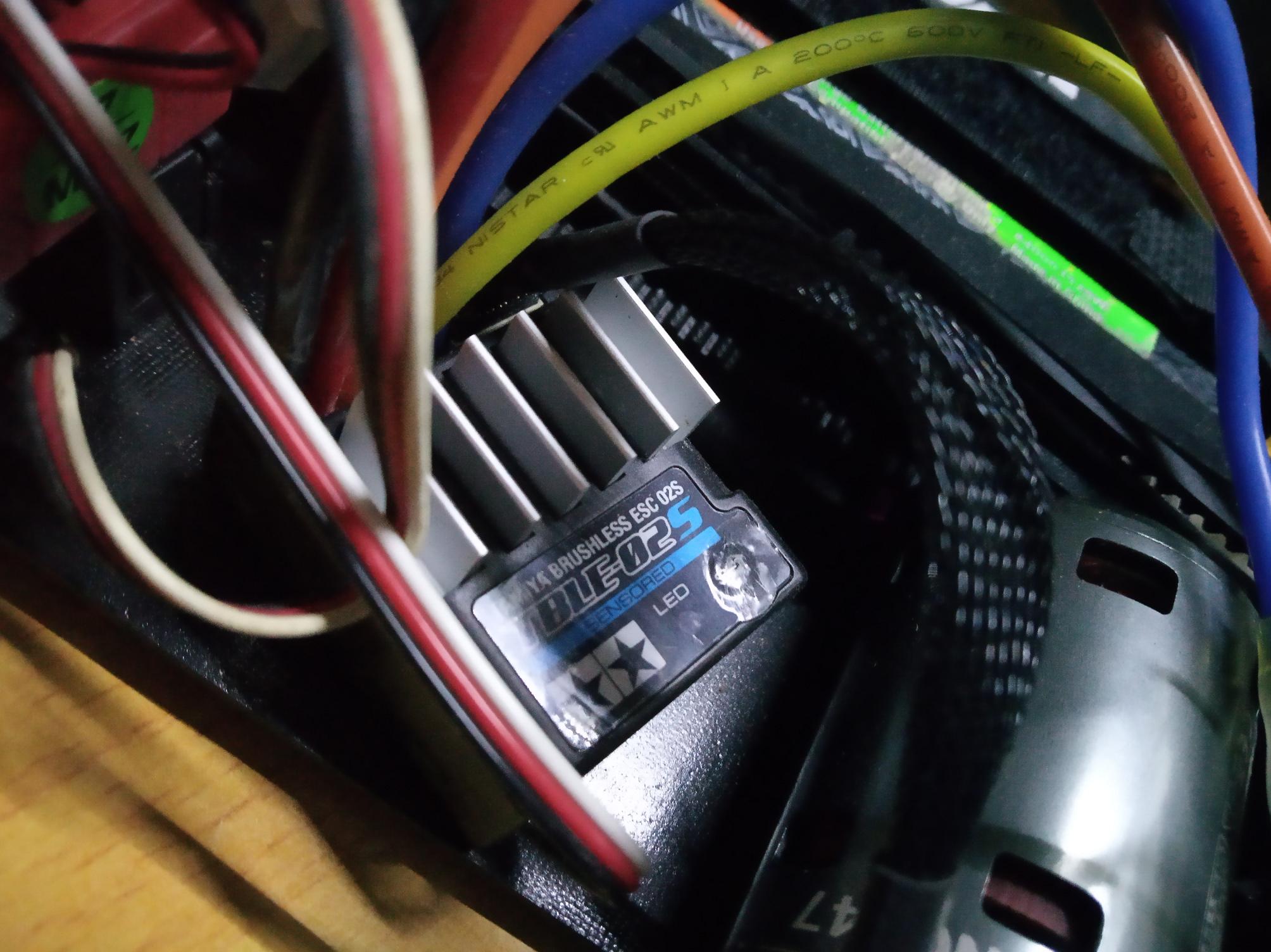

The setting according to TBLE-02S manual is not difficult but pay attention the colour of orange and red LED light, they are too same. I be blocked too long here. |
|||
|

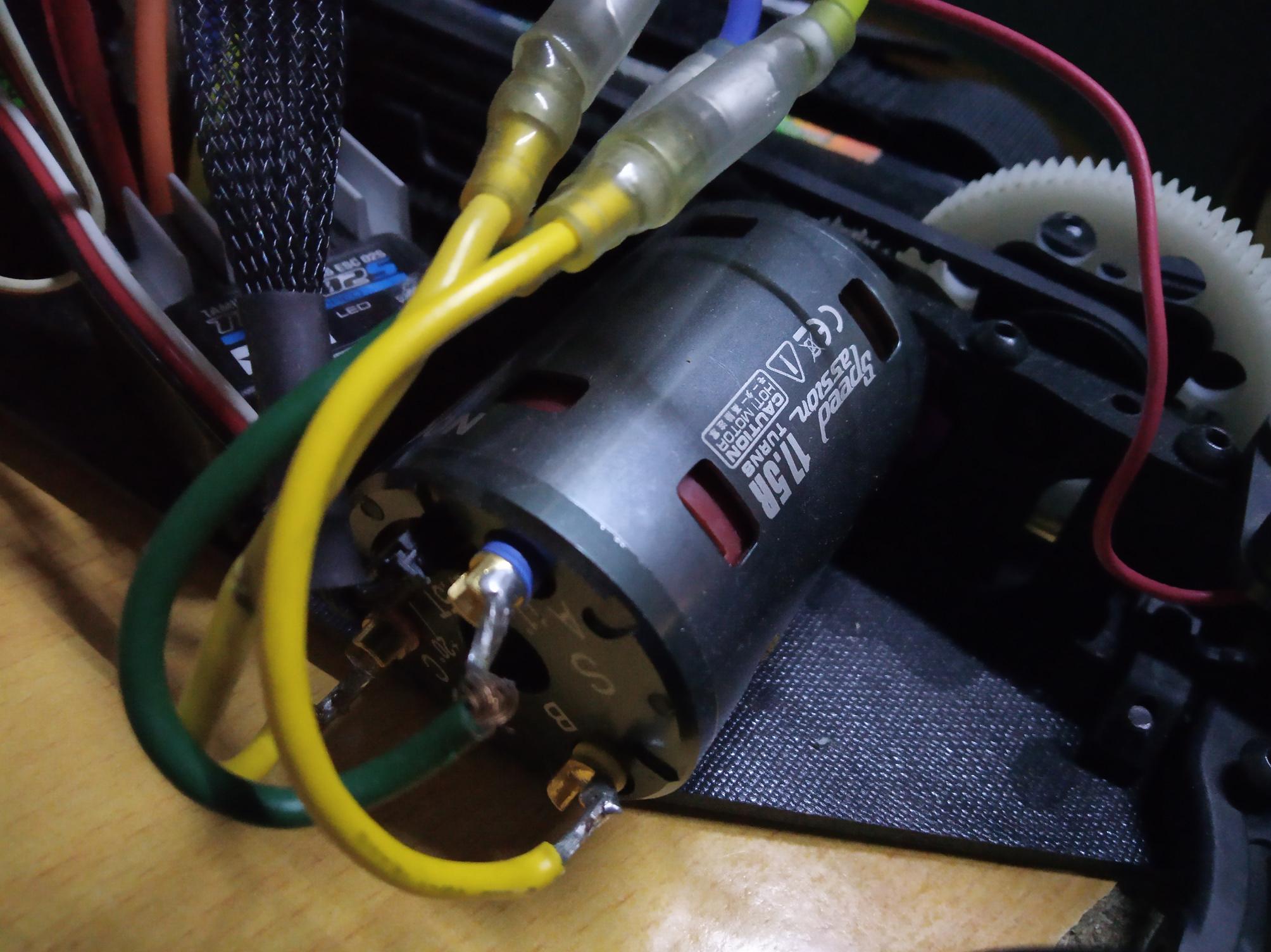

This motor is 17.5 turns and cheap about $160 HKD. I adjust the motor timing to higher speed because I feel low. | |||
|

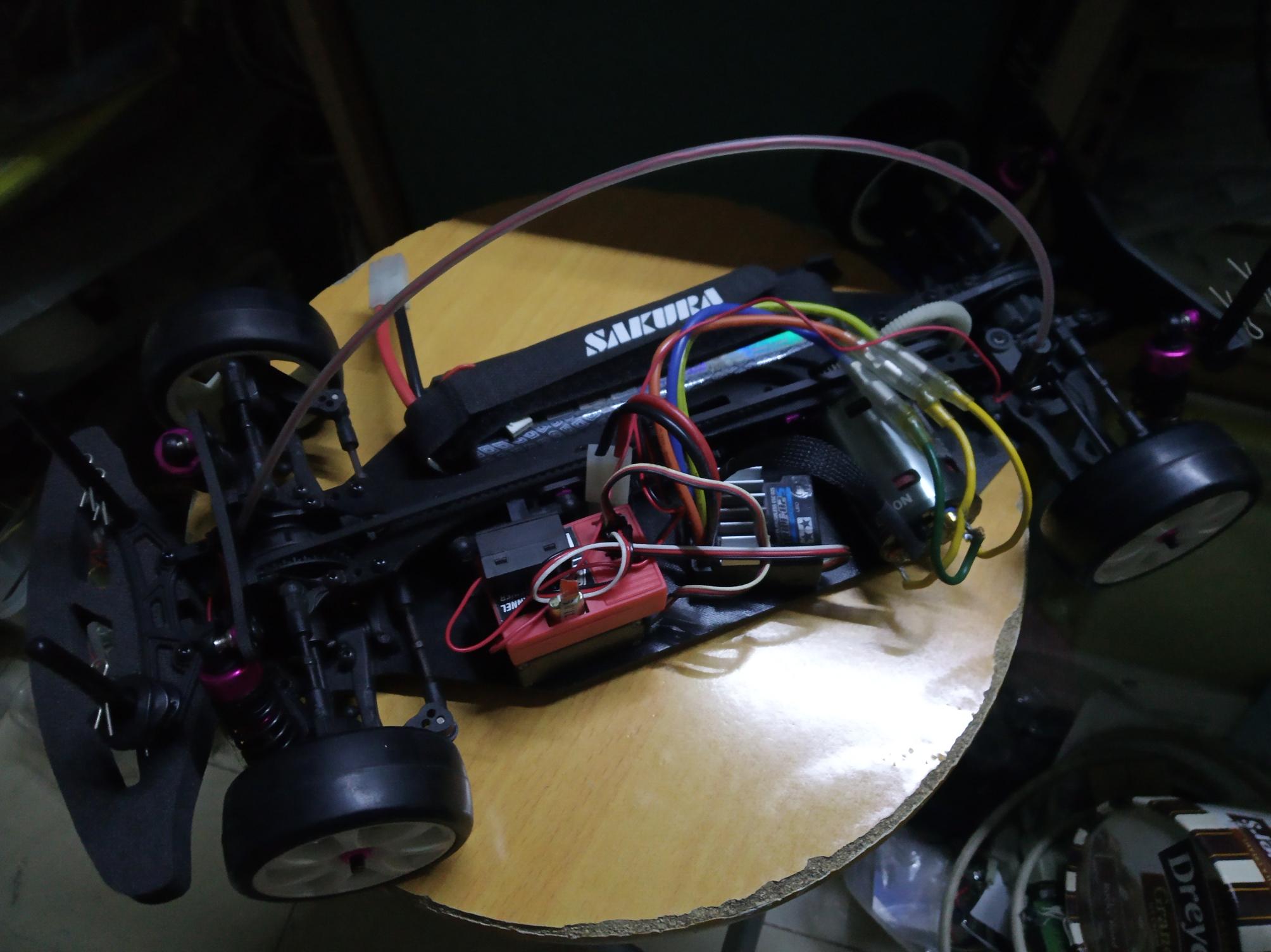

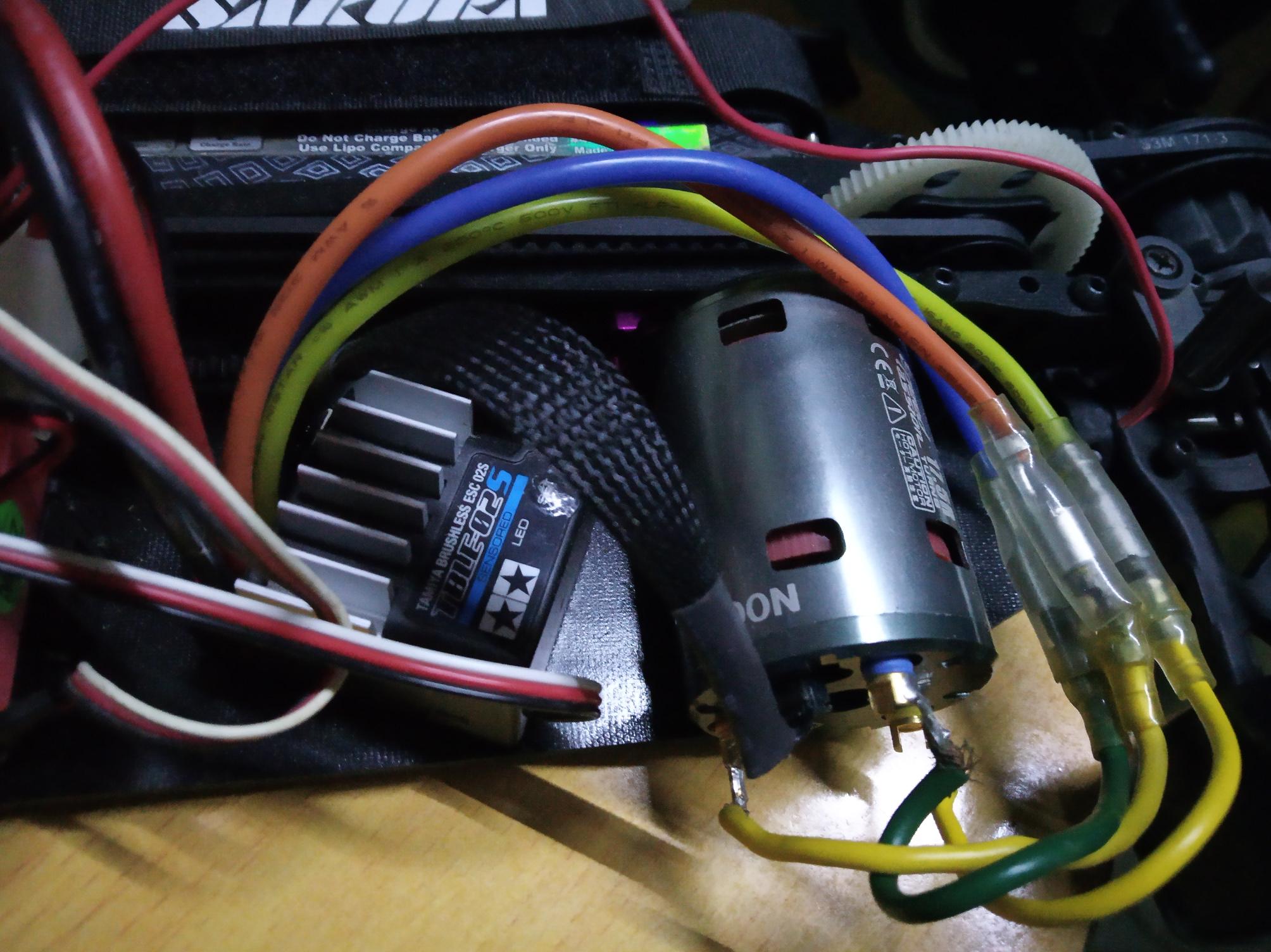

The full setting. |
|||
