Win/ Mac mouse improvement 4 Feb 2020

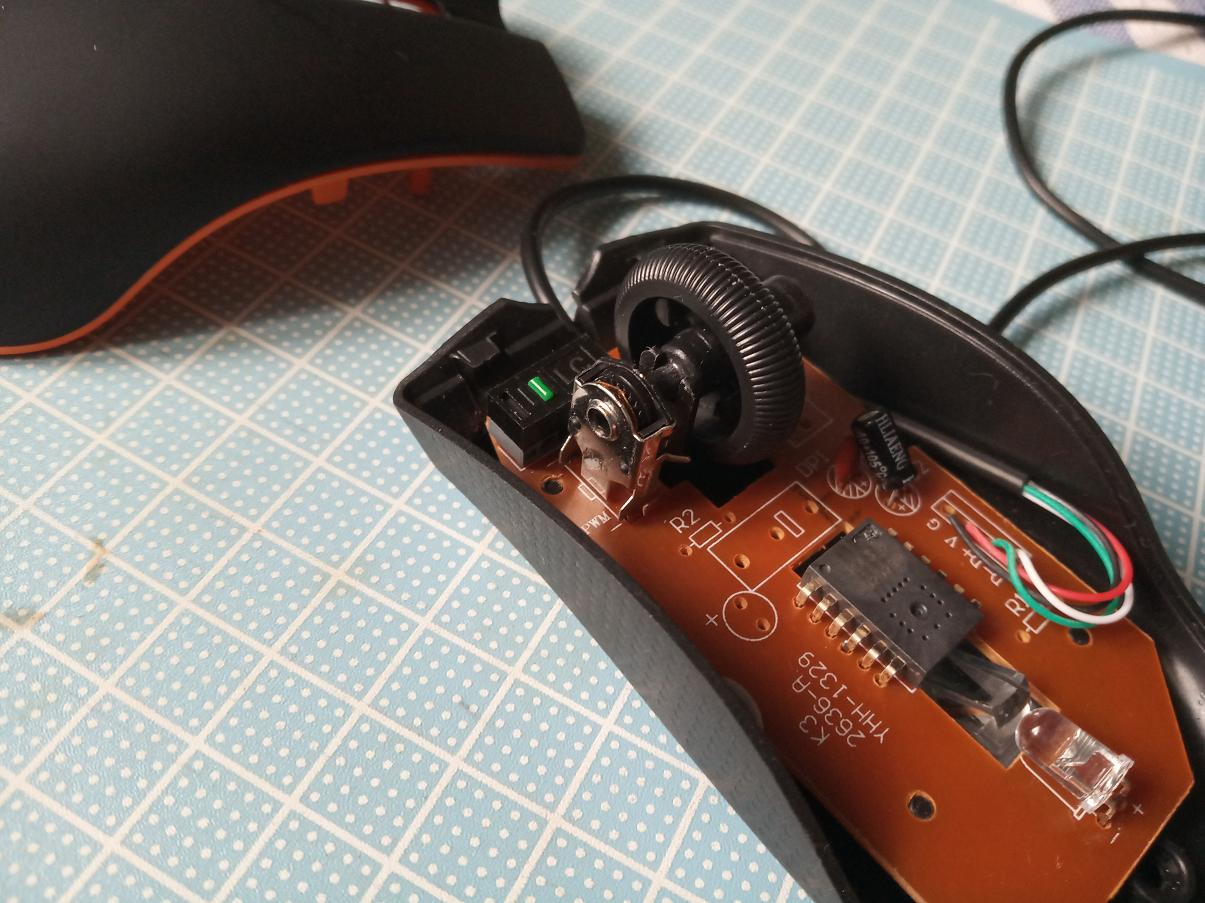

This is PC mouse for Win OS. It is too low cost as $19 HKD in Hong Kong. I bought 3 pieces totally.

I toke a computer course and using Mac machine for studying. There are hard to operate the Mac mouse. Both mouse are compactable after my testing. Therefore it is improvement easily.

¡@

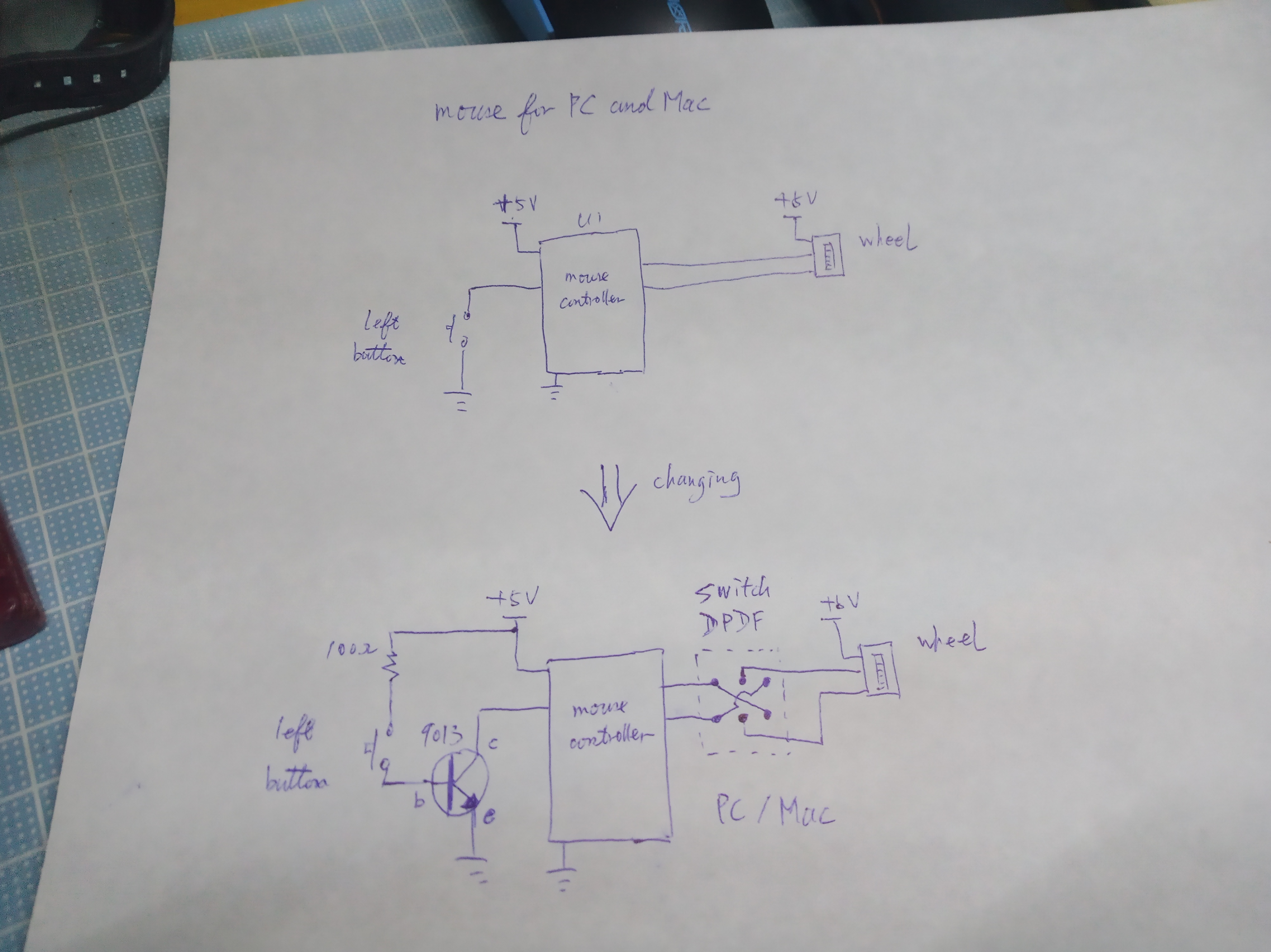

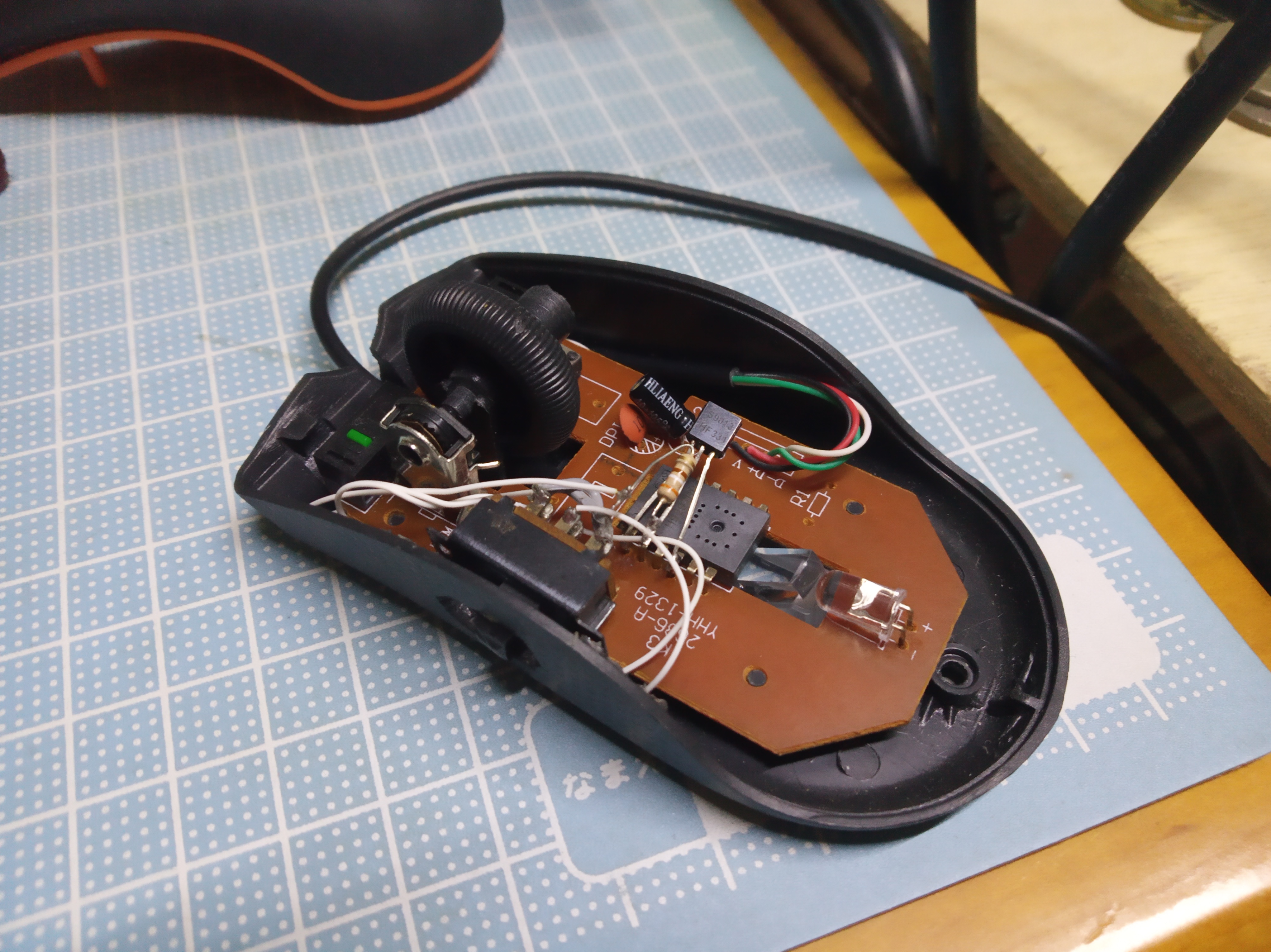

I drew the Schematic, please reading. The wheel of scroll direction is different between Win and Mac machine but just exchange 2 pin only. Adding switch for selecting Win/Mac easily too.

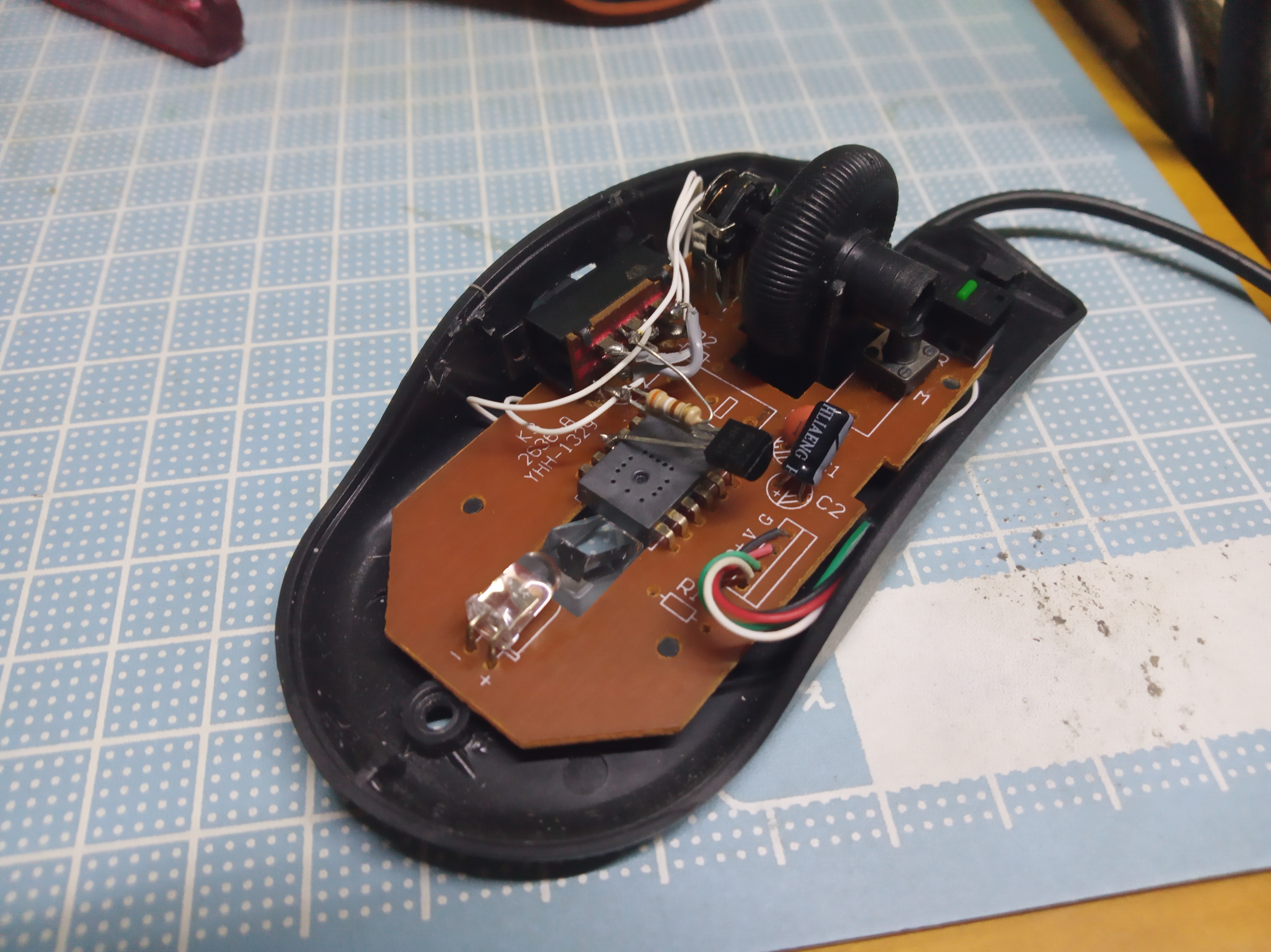

I also improved the left button of mouse. It is reduced the cost for factory but the result is not sensitive. I adding the electronic component is NPN 9013 transistor and resistor 100 ohm. There are amp circuit to increase the sensitivity.
