2001 Mercedes-Benz E320
Oil Change Using an Oil Extractor

Oil Filter Housing Cap and Oil Cap/Filler with Engine Cover Installed
Make sure engine is warmed up so oil will extract easily (68 degrees - 158 degrees)

Oil Filter Housing Cap, Oil Cap/Filler and Oil Dipstick with Engine Cover Partially Removed
Simply pull up the engine cover to remove; no tools required

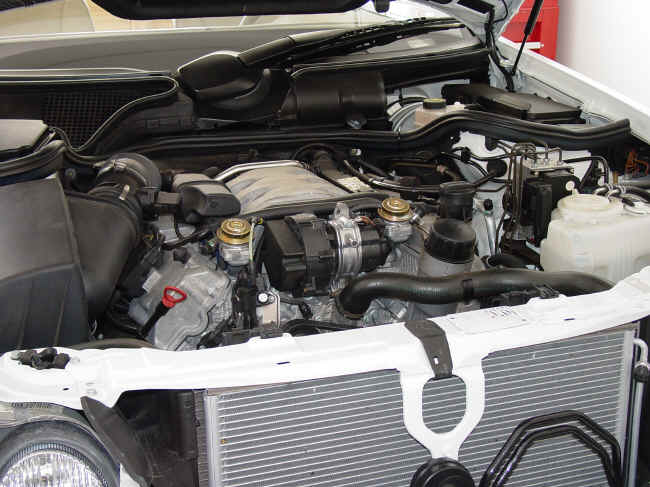

Engine Cover Removed
With engine cover removed, access to oil filter assembly is a lot easier

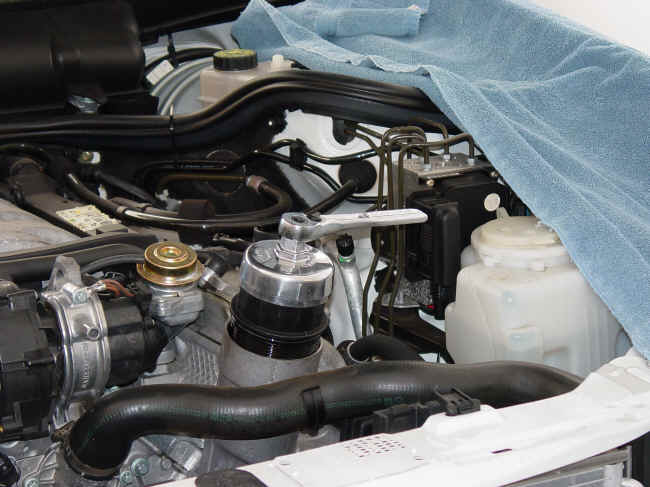

Oil filter wrench with oil filter assembly almost removed

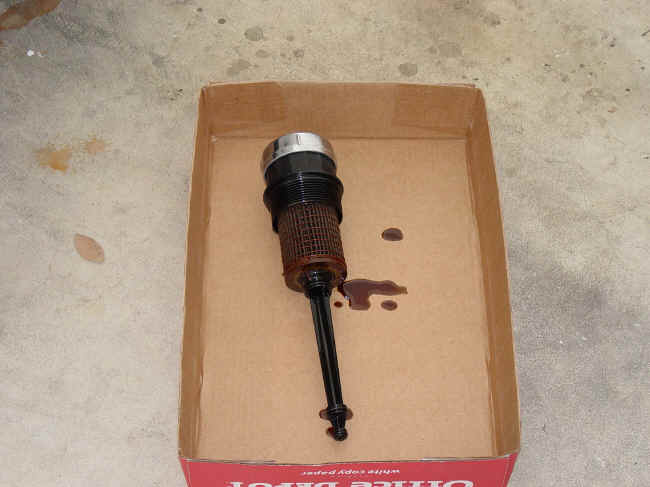

Oil filter assembly removed


Old filter pulls straight off of shaft; may have to twist to remove filter
Remove and replace all O-rings, install new oil filter

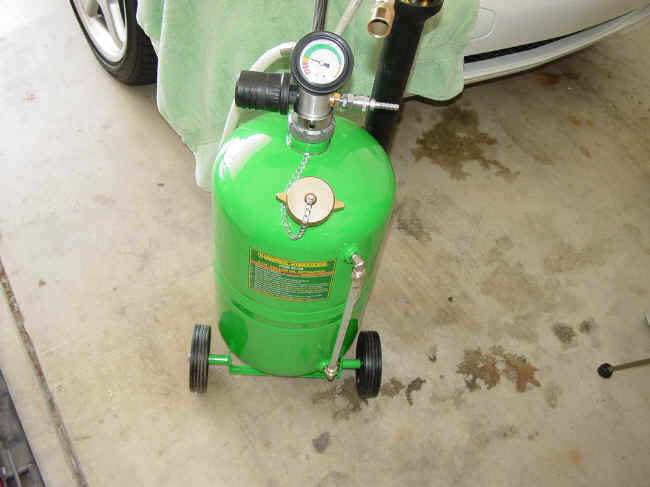

Harbor-Freight 6-1/4 Gal. Oil Extractor, Model 46149
Many extractor brands and models to choose from; some pressurize with a hand pump
This model uses air from an air compressor; no hand-pumping to pressurize
and comes with 5 different extractor probes, 3 nylon and 2 copper
Gauge shows air pressure almost full and ready for use
Sight-gauge on tank makes it easy to see oil level in recovery tank

Line from extractor with nylon probe attached and fed into dipstick tube

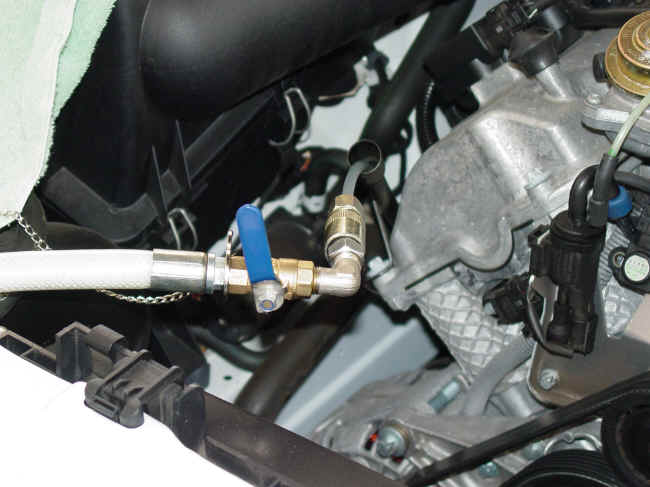

Valve in 'off' position; ready to extract oil

Oil being extracted into tank
Re-install oil filter; torque to 18 lbs. and re-insert oil dipstick

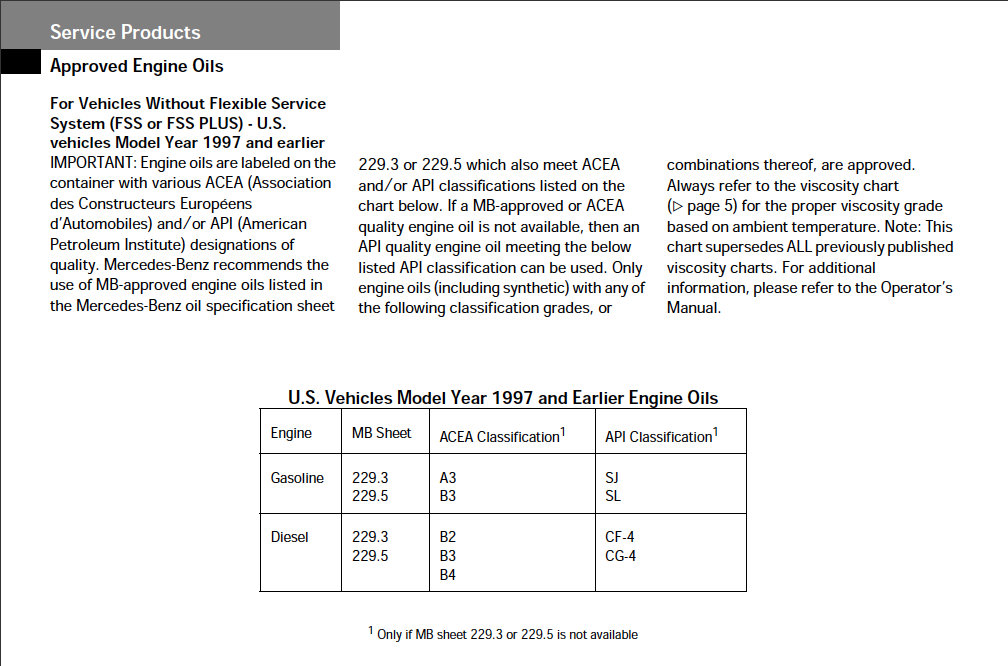

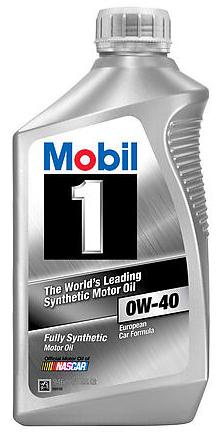

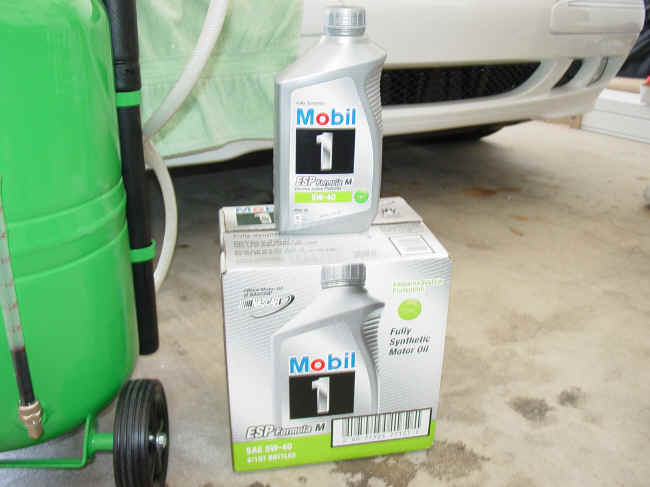

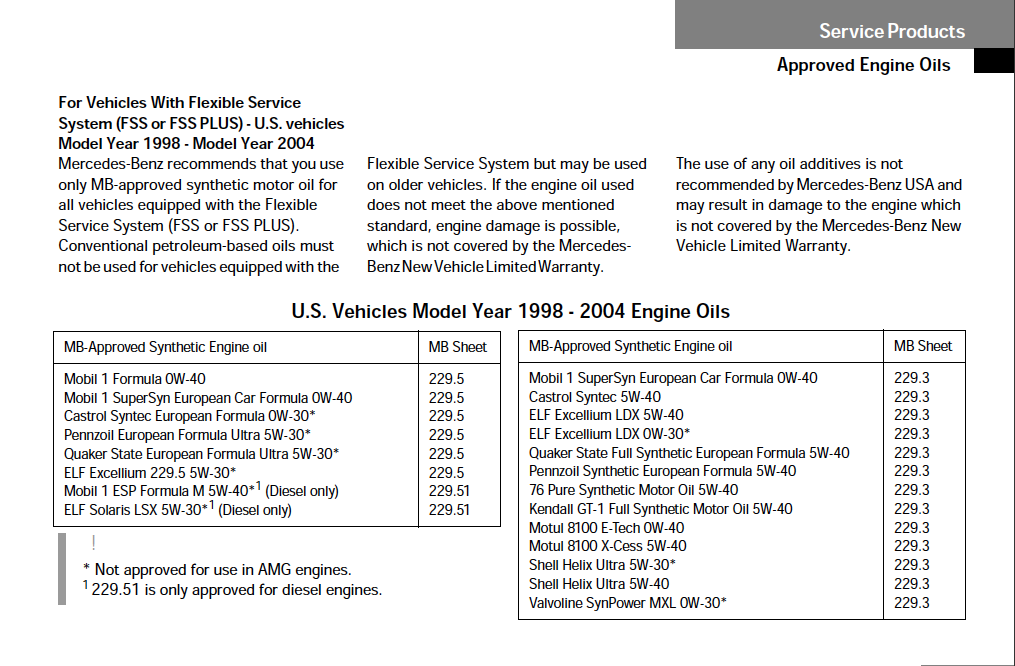

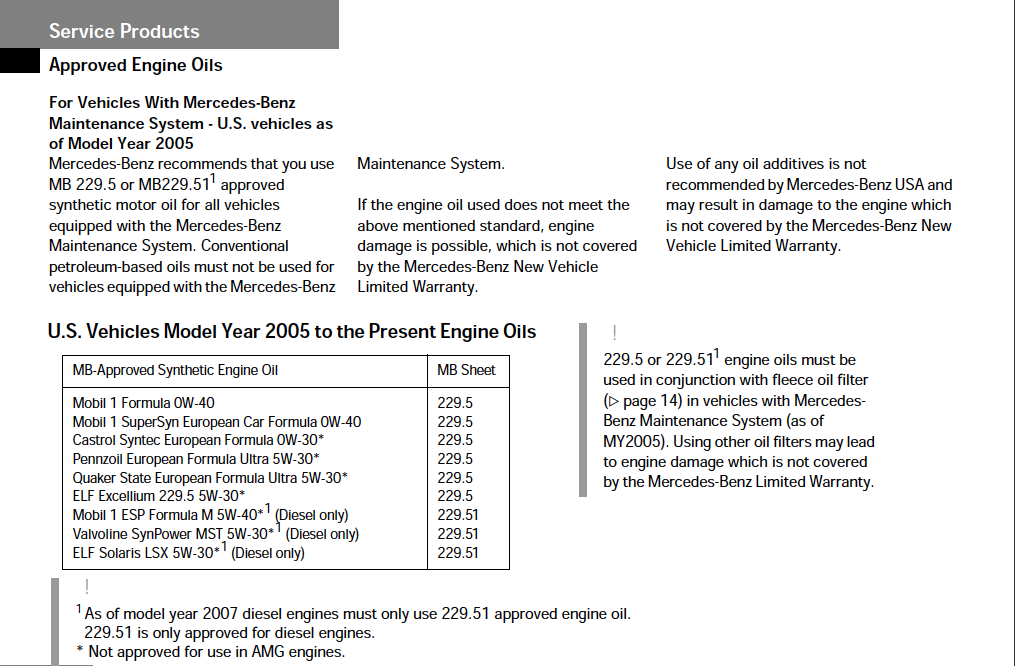

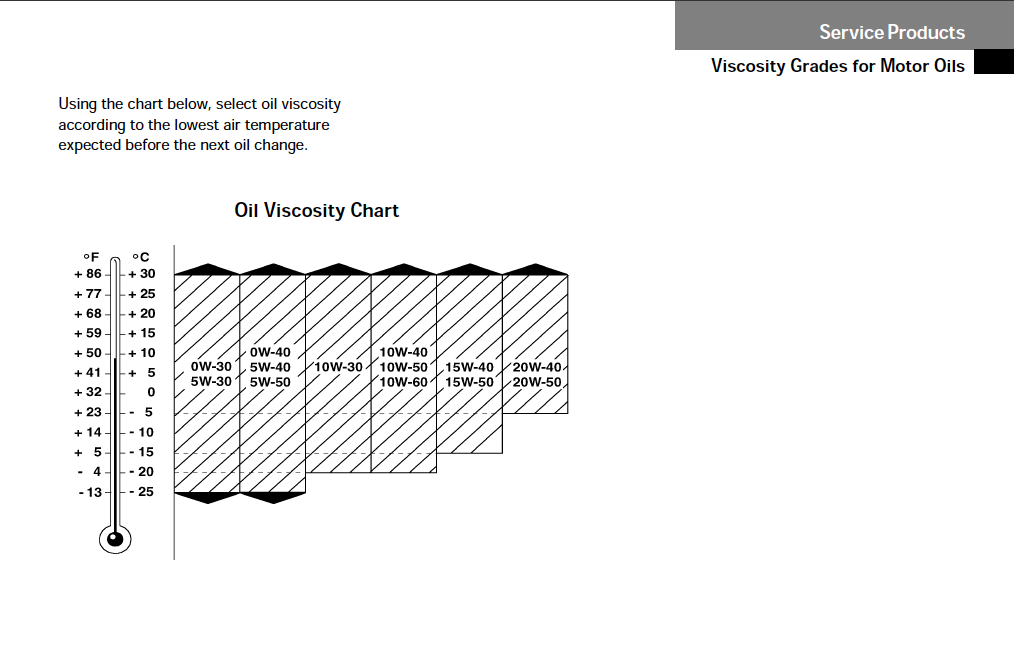

My 2001 E320 takes 8.5 quarts of Mobil 1 0W-40, Mercedes spec 229.3 or Mobil 1 5w-40 Formula M, Mercedes spec 229.5 oil.

I put in 8.0 quarts and verified oil level with dipstick, then topped off

http://www.mobiloil.com/USA-English/MotorOil/Oils/Mobil_1_0W-40.aspx

http://bevo.mercedes-benz.com/bevolisten/bevo-sheets-sort1.html











Run engine a few minutes, turn off and allow oil to drain down
and re-check oil level with dipstick and engine oil level indicator
All done; no more $160 oil changes at the M-B dealer...






Harbor-Freight Central Hydraulics 6 1/4 Gallon Oil Extractor





Photos by Ricky D.
