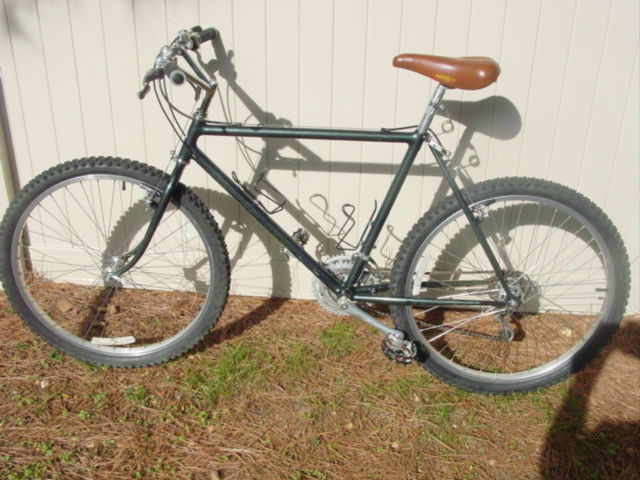

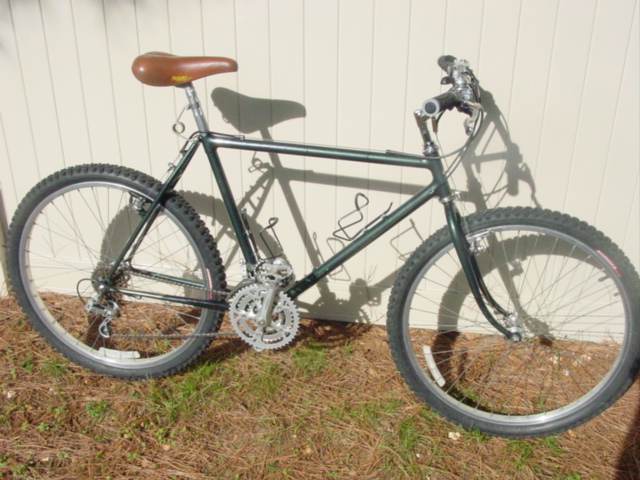

1984 Fisher MountainBikes
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
- YEAR: 1984

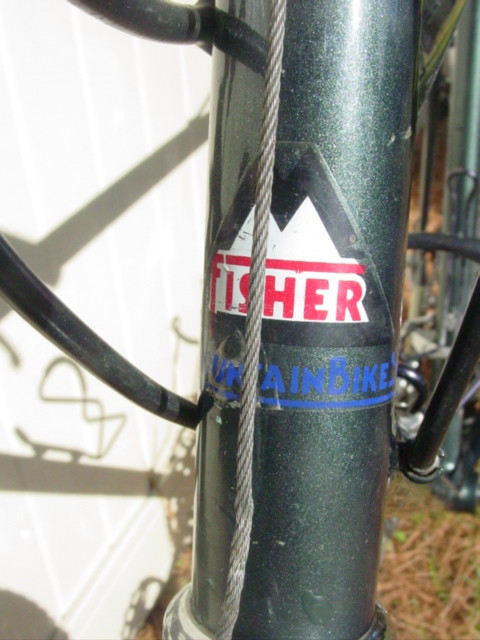

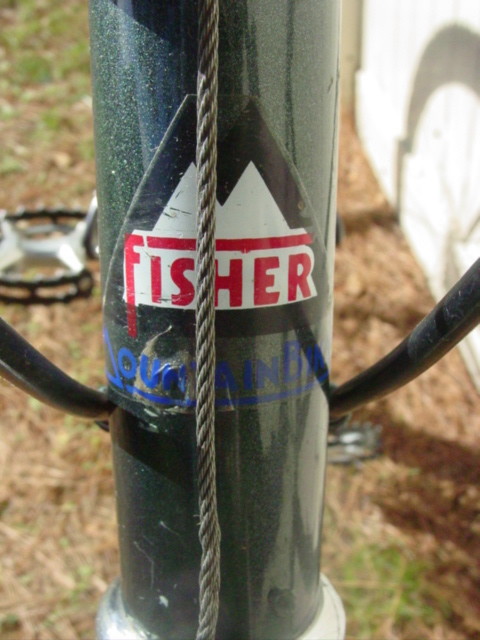

- BRAND: Fisher MountainBikes
- MODEL: Mt. Tam?

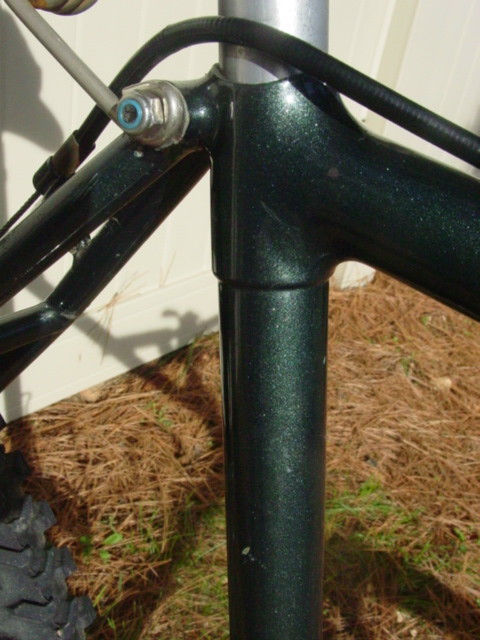

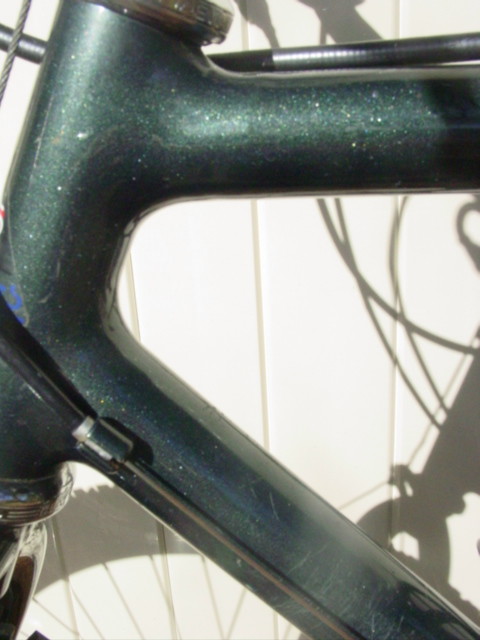

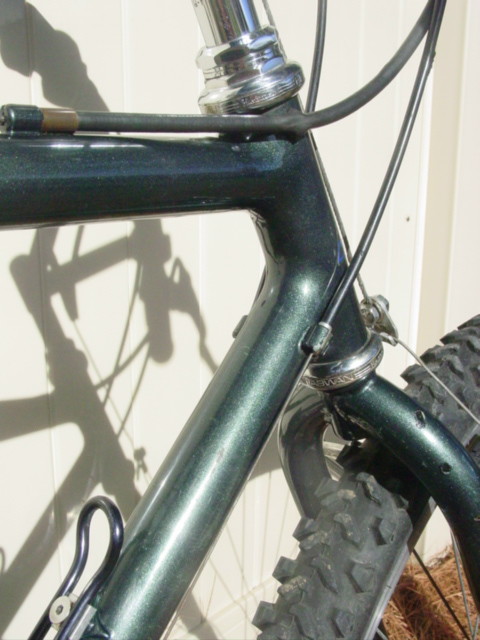

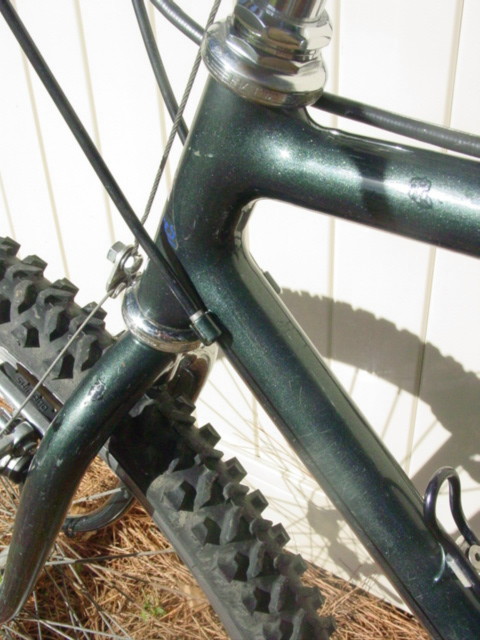

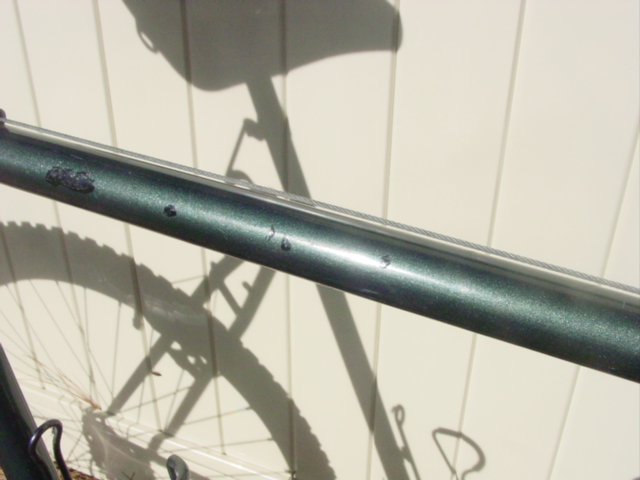

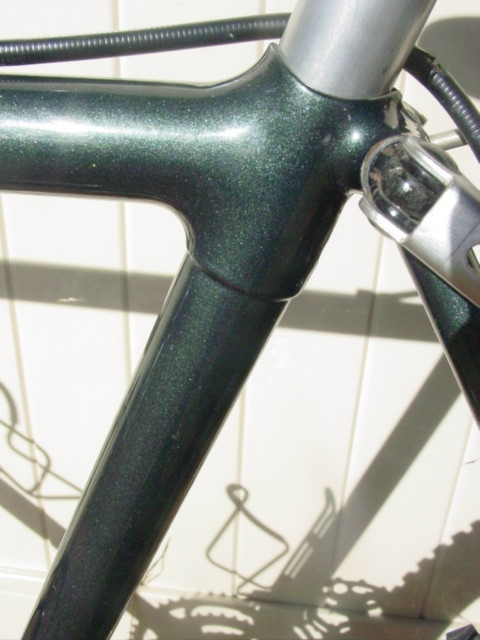

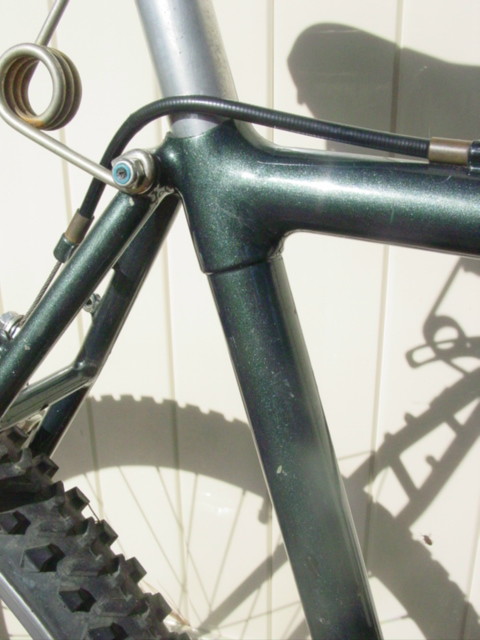

- FRAME: Fillet brazed cromo steel
- BUILDER: Tom Ritchey
- SERIAL NUMBER: 0 0 8 0 (filled with paint and hard to read)
- SIZE: 19" (c-c)

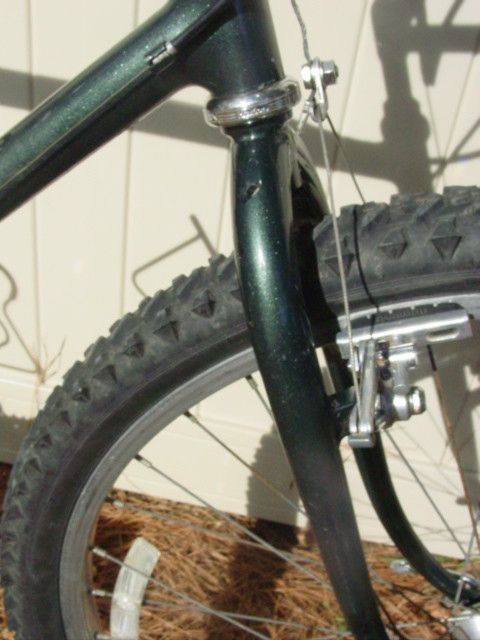

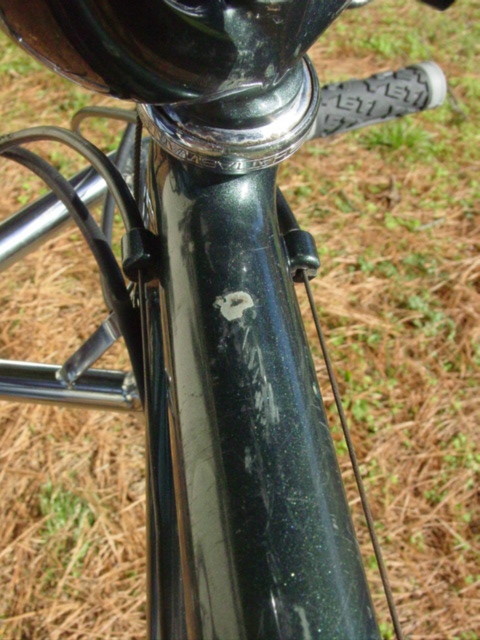

- HEADSET: Hatta Swan

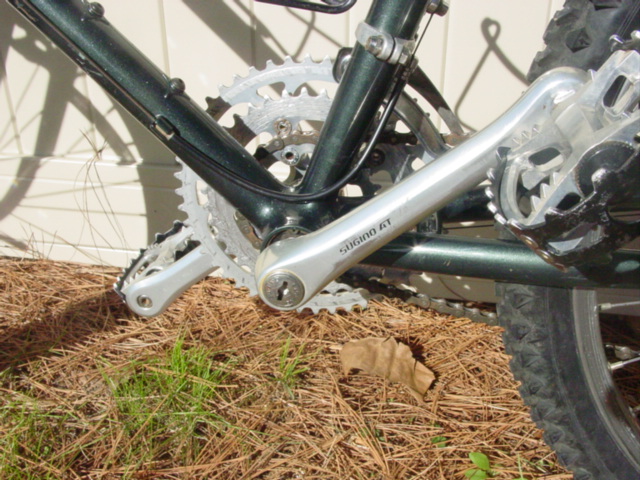

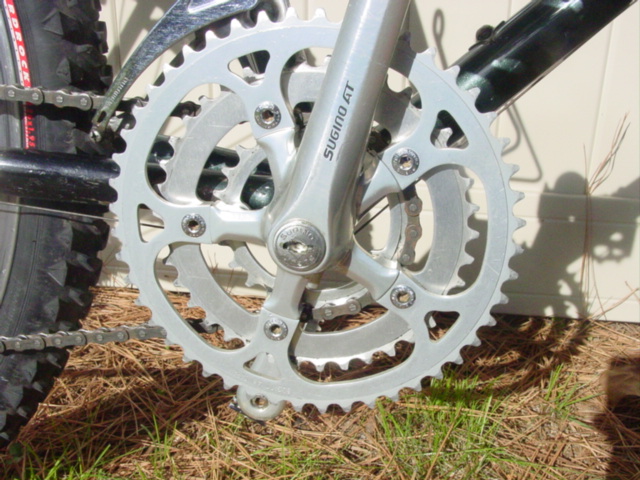

- CRANK: Sugino AT triple (48x38x24), 4/1984

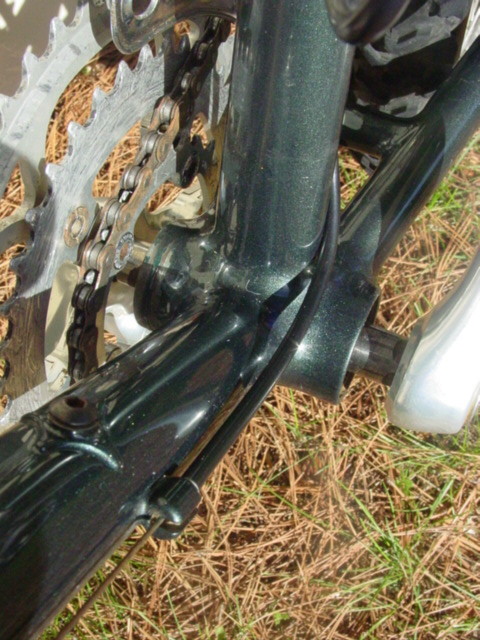

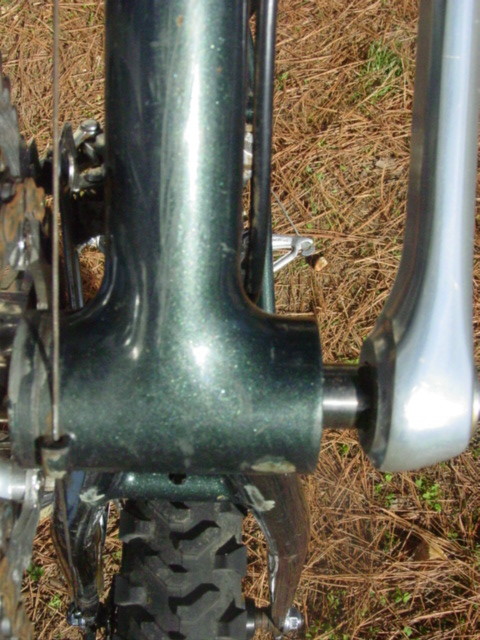

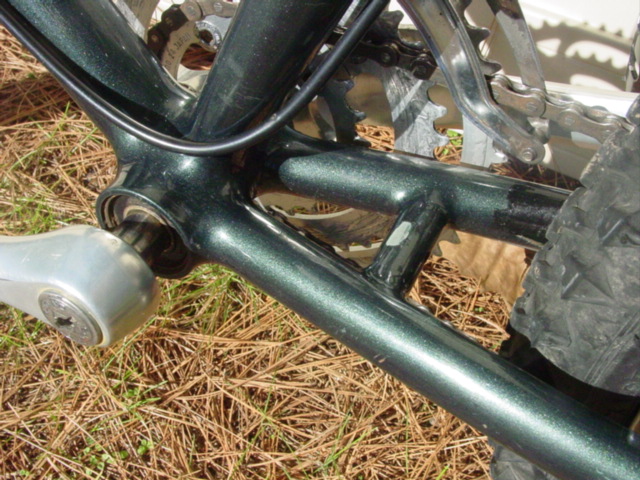

- BOTTOM BRACKET: Tom Ritchey sealed bearing

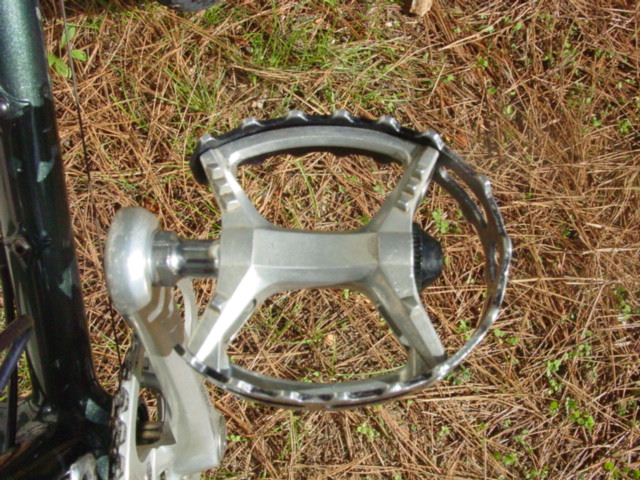

- PEDALS: SunTour XC-II "Bear Trap", Late 1984

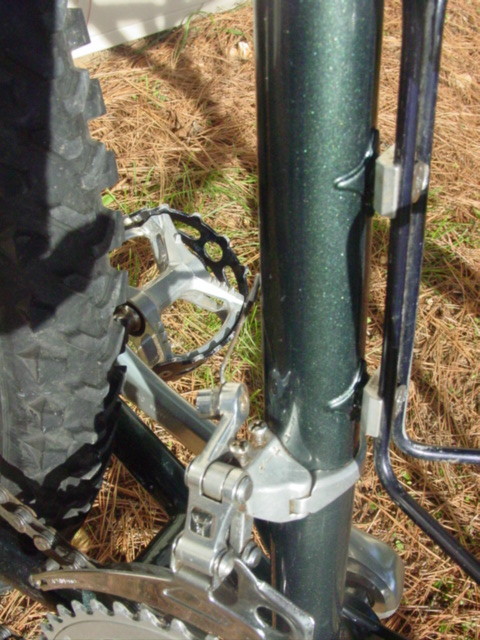

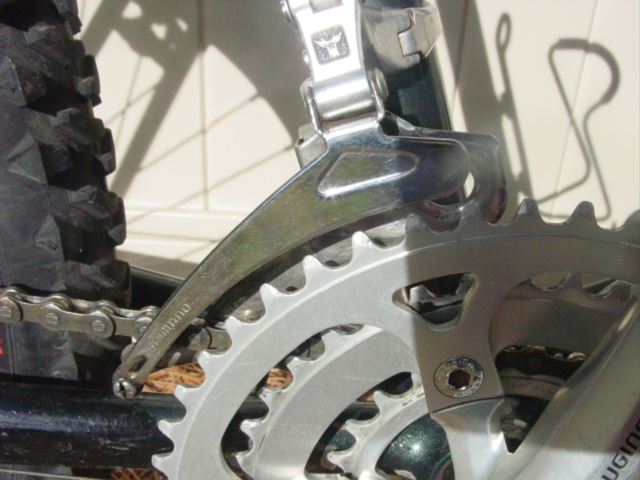

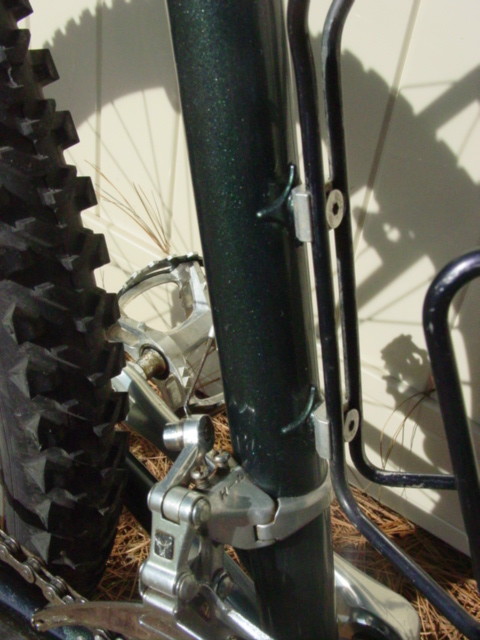

- FRONT DERAILLEUR: Shimano Deore XT "Deer Head", FD-M700, 1/1984

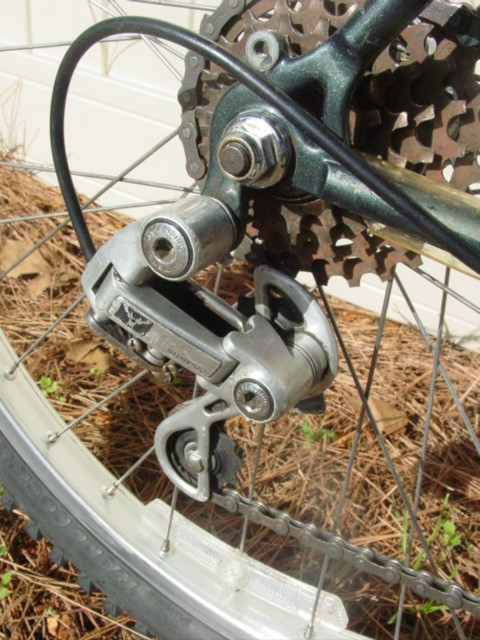

- REAR DERAILLEUR: Shimano Deore XT "Deer Head", RD-M700, 5/1984

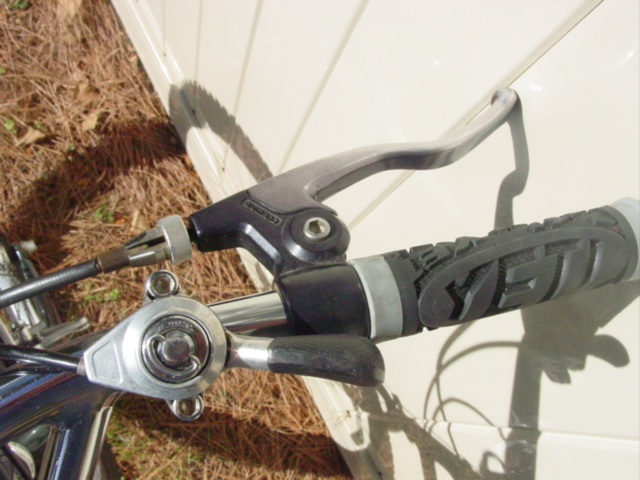

- SHIFTERS: Shimano Deore XT, SL-M700, 1984

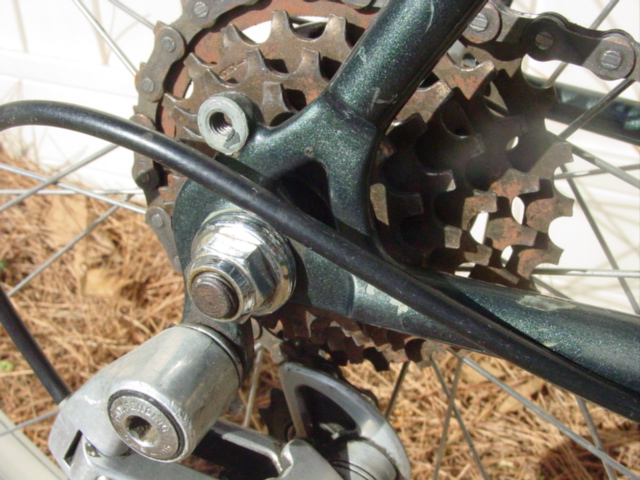

- FREEWHEEL: Shimano Tourney 15, 5-speed, (14-28), 1993*

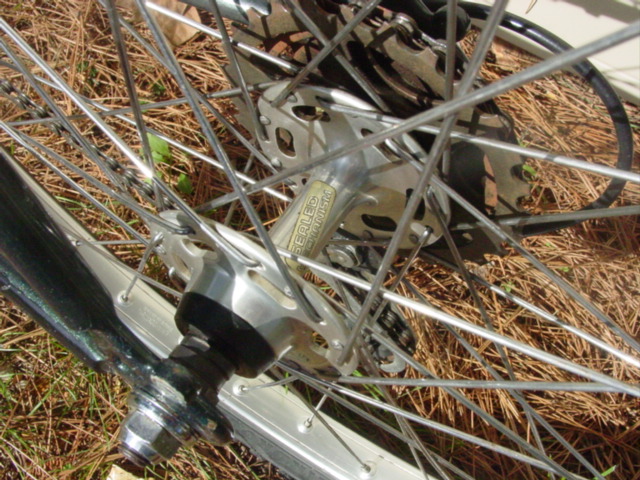

- REAR HUB: Shimano Deore XT, HB-MN72, nutted, 8/1983

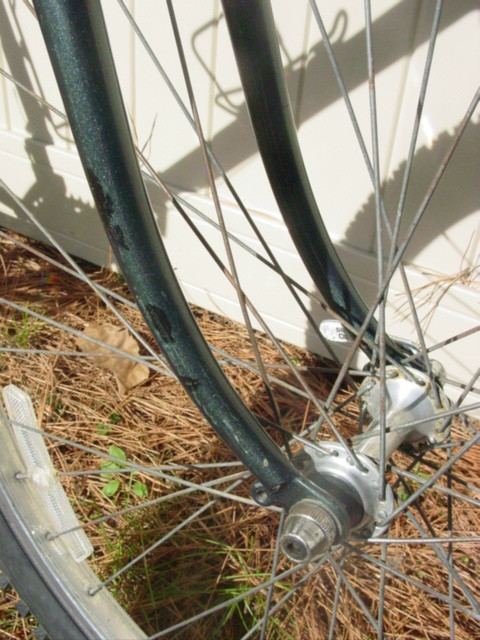

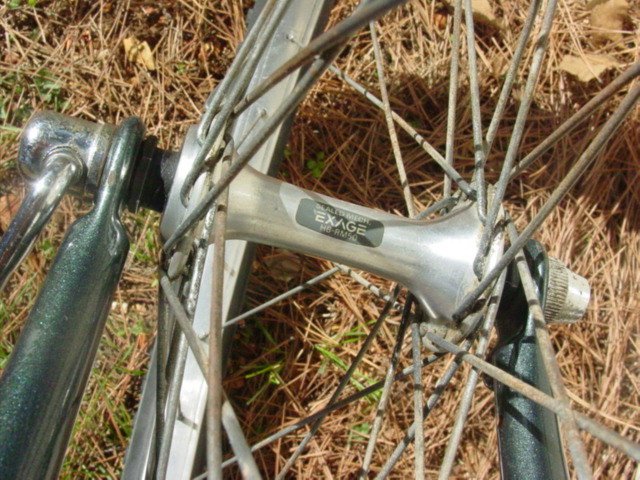

- FRONT HUB: Shimano Exage, HB-RM50, Q/R, 1993*

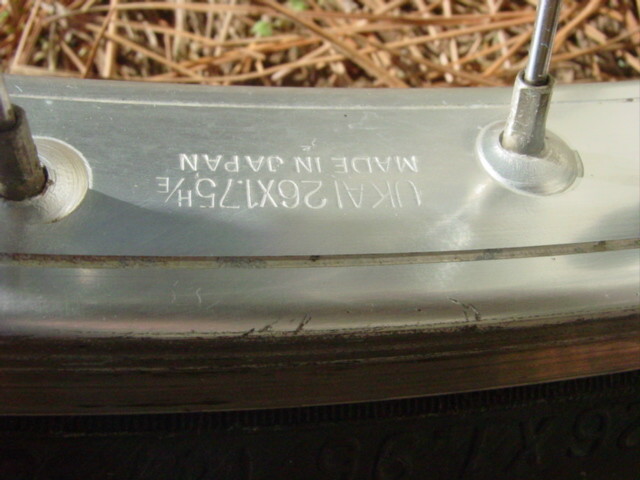

- REAR RIM: Ukai 26" x 1.75"
- FRONT RIM: Alesa 26" x 1.50"*
- TIRES: Specialized Hard Rock'R, 26" x 1.95"*

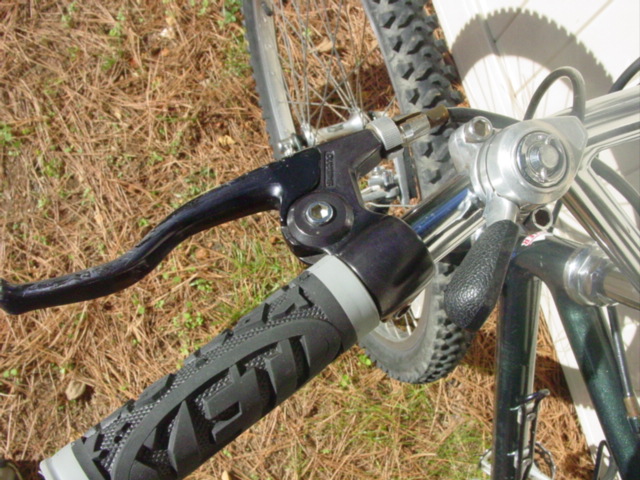

- LEVERS: Shimano Deore XT, BL-M700, 1984

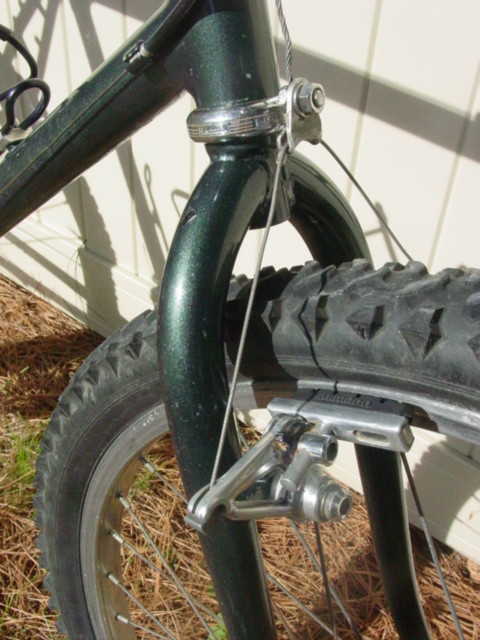

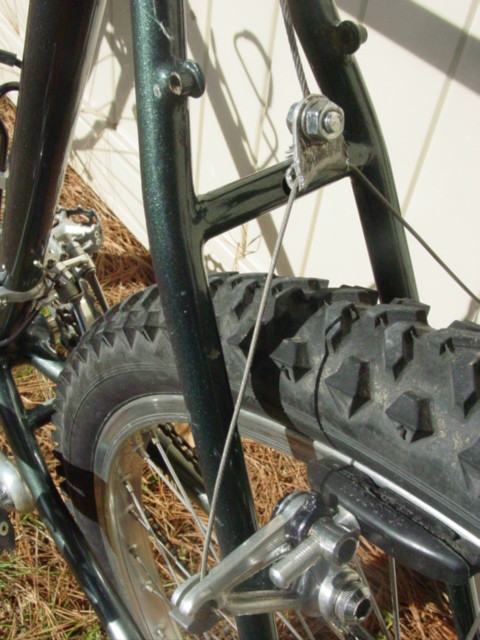

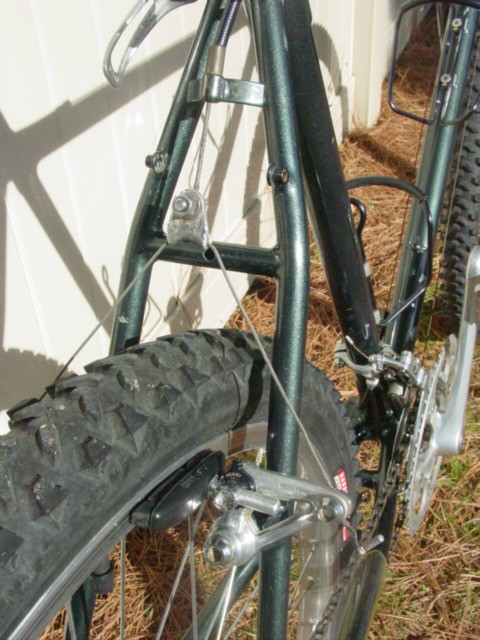

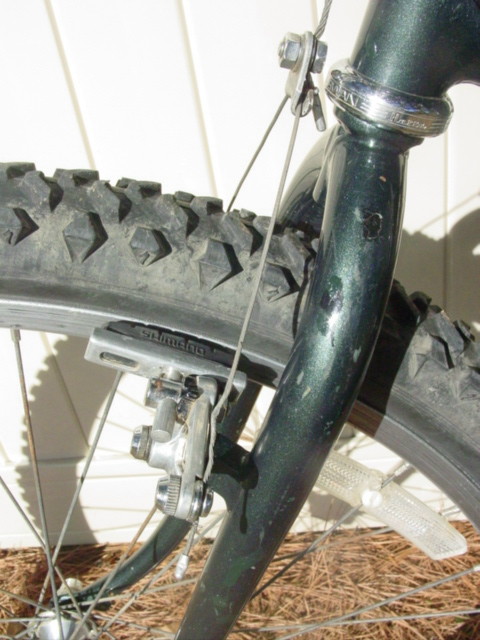

- CALIPERS: Shimano Deore XT, BR-MC70, Cantilever, 6/1983, 7/1983

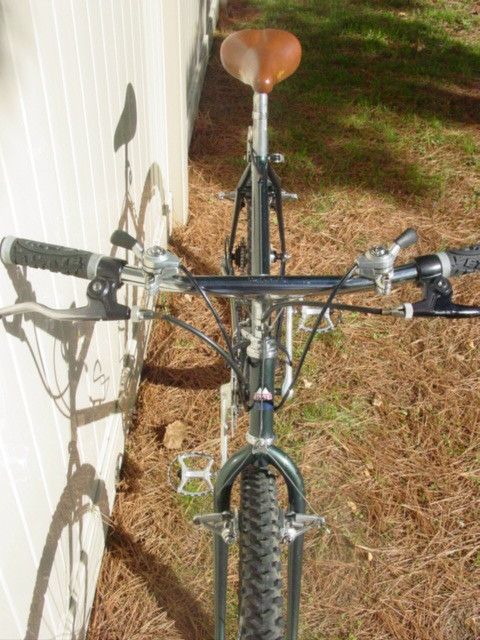

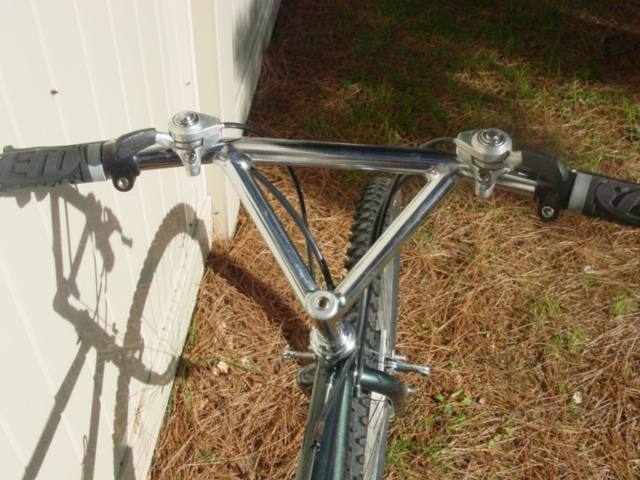

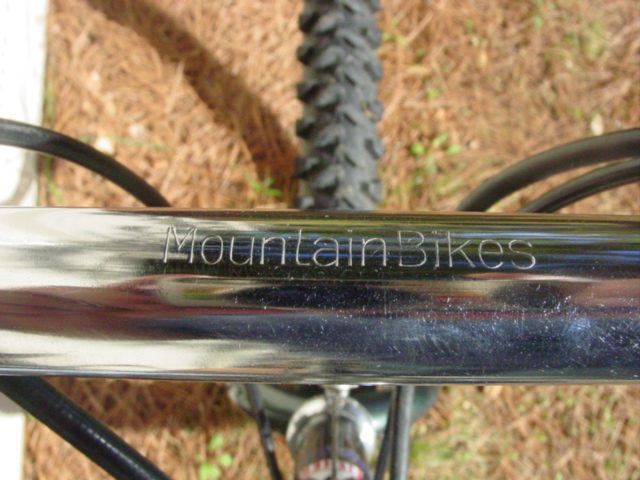

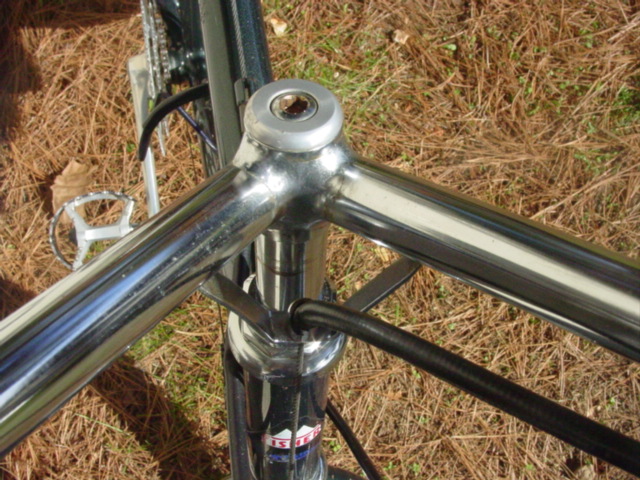

- BARS: Nitto, "MountainBikes" Bullmoose, chromed fillet brazed steel
- STEM: Nitto, "MountainBikes" Bullmoose, chromed fillet brazed steel
- GRIPS: Yeti*

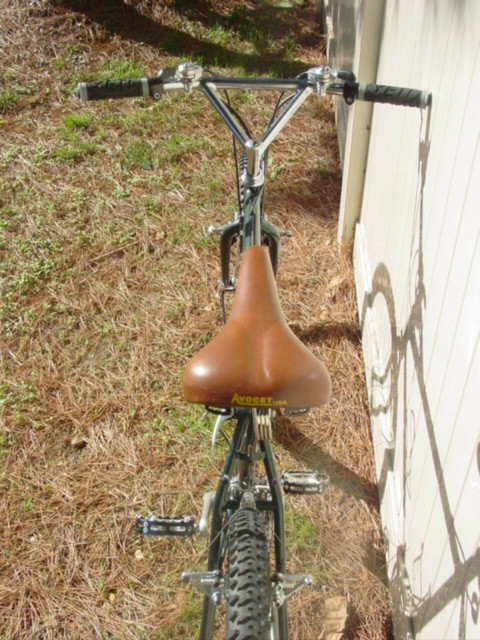

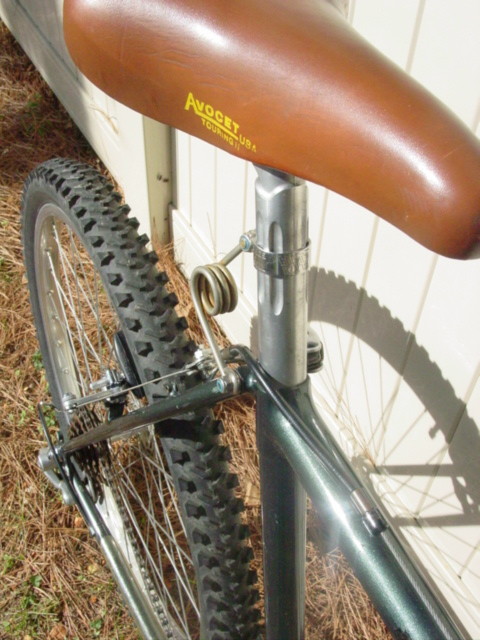

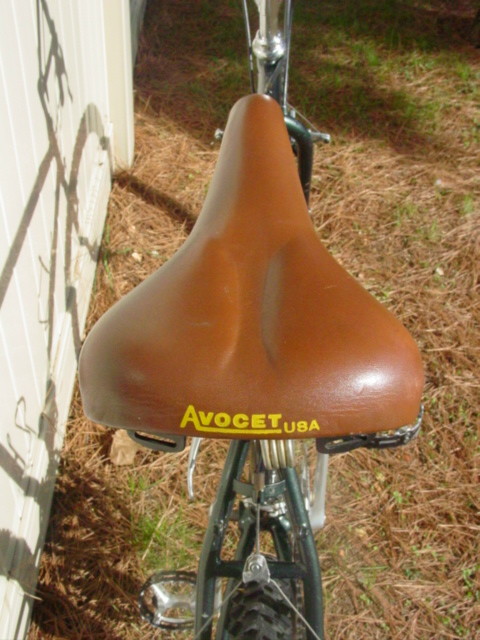

- SADDLE: Avocet Touring II**

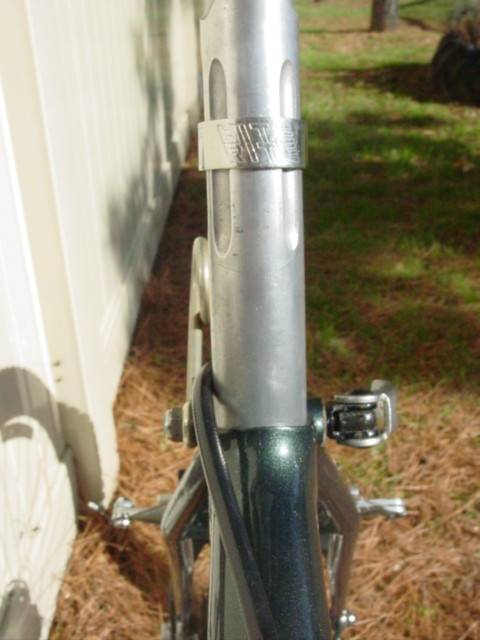

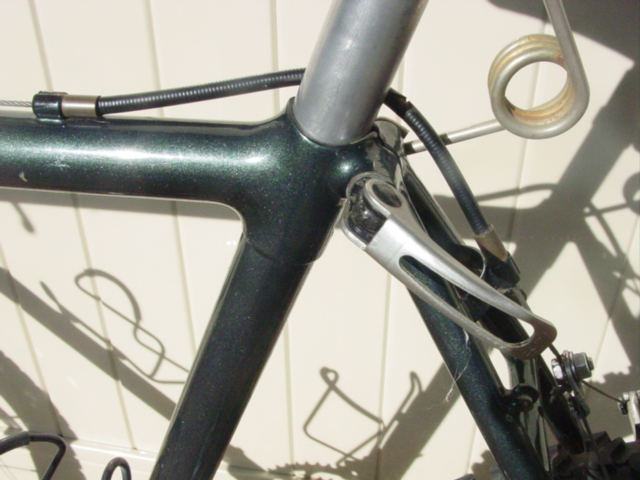

- POST: SR Laprade, 5/1984
- POST Q/R: Generic*

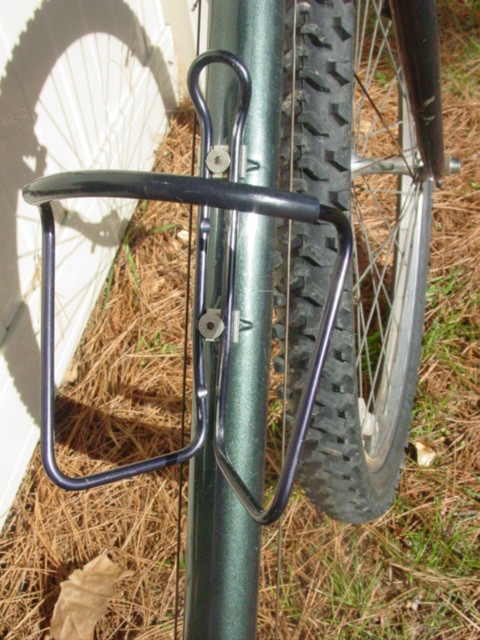

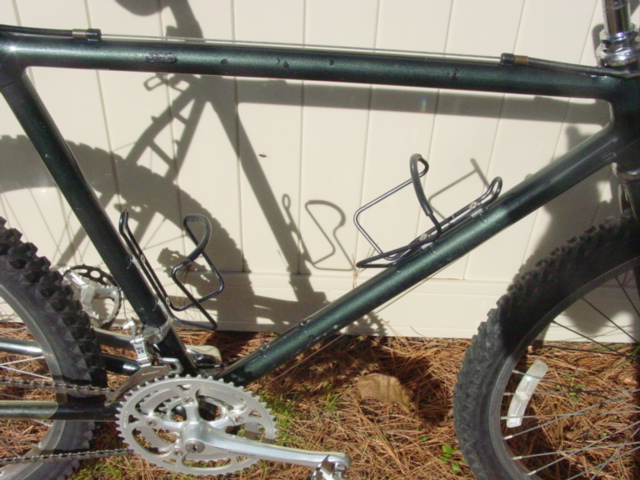

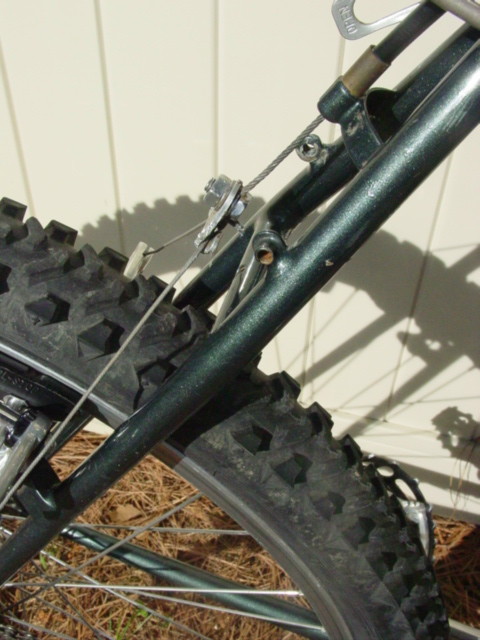

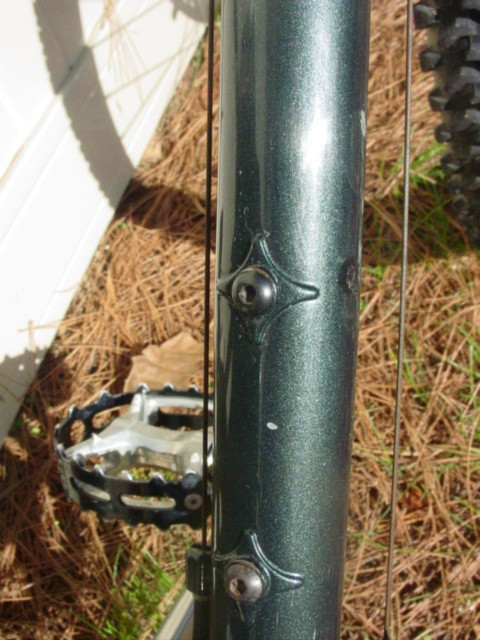

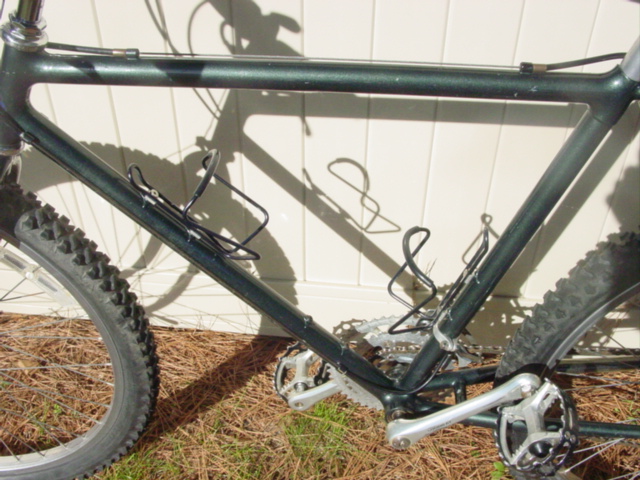

- BRAZE-ONS: Three bottles (star bosses), rear rack, single eyelets front and rear
Note: Asterisk (*) denotes known non-original parts. Asterisks (**) denotes known non-original (although correct) parts.
