While there are few sources of neutrons at Ames, researchers should still
have a general familiarization with this type of radiation. Neutrons are
emitted by only the heaviest elements such as uranium. These heavy atoms are
comparatively large and tend to split spontaneously down the middle creating two
new elements with nuclei that are very nearly equal in size. The emitted
neutrons are merely part of the debris left over from the splitting event. The
emitted neutrons carry enough energy to trigger a second nucleus into splitting
if another large nucleus is nearby. The emitted neutrons can cause the number of
splitting nuclei to multiply rapidly in what is called a chain reaction if there
are enough such nuclei nearby. Such reactions are used in nuclear reactors to
heat water for generating electricity.
Neutrons can also be artificially generated by instruments utilizing alpha
emitters, such as radium, if the alpha emitter is surrounded by a metal such as
beryllium. The action of the alpha particle on the beryllium nucleus is to
induce it to split and give off a neutron in the process. The neutron has no
charge and therefore can be very penetrating. The amount of shielding necessary
for reducing a neutron stream to a safe level is directly dependent on the
energy of the neutrons in the stream. A few centimeters of shielding will
provide adequate protection from slow neutrons, but several feet of shielding
may be needed for the most energetic neutrons. Shielding is best achieved by
using hydrogen-rich materials like water, Plexiglas, or paraffin.
The way in which neutrons interact with matter
depends to a large extent on their energies, which can range from hundreds of MeV
down to fractions of an eV. Neutrons are uncharged particles and do
not interact with atomic electronsin the matter through which
they are passing, but they do interact with the nucleiof
these atoms. The nuclear force, which leads to
these interactions, is very short ranged which means the neutrons have to pass
close to a nucleus for an interaction to take place. Because of the small size
of the nucleusin relation to the atom
as a whole, the neutronswill have a low probability of
interaction, and could thus travel considerable distances in matter.
The most common neutron reactions are the ones listed below:

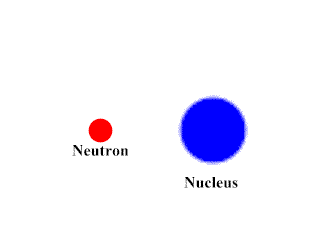

A neutron may strike a nucleus and form a compound nucleus
instead of bouncing off as in elastic scattering. This nucleus is unstable and
emits a neutron of lower energy together with a gamma photon
which takes up the remaining energy. This process, called inelastic scattering,
is most effective at high neutron energies in heavy materials, but at lower
energies (a few MeV) elastic scattering becomes a more important reaction
for energy loss provided there are light nuclei present.

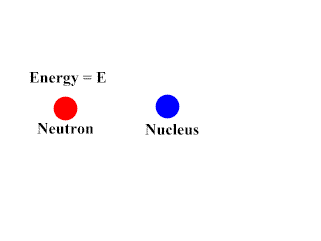

This is analogous to a billiard ball type of collision. The neutron collides
with a nucleus and rebounds in a different direction. The energy the neutron
loses is gained by the target nucleus which moves away at an increased speed. If
the neutron collides with a massive nucleus it rebounds with almost the same
speed and loses very little energy. Light nuclei, on the other hand, will gain a
lot of energy from such a collision and will therefore be more effective for
slowing down neutrons.
Elastic scattering is not effective in slowing down neutrons with very high
energy (above 150 MeV).
This is one of the most common neutron reactions.
The neutron is again captured by a nucleus
which emits only a gamma photon. This reaction, which
occurs in most materials, is the most important one for neutrons with very low
energy. The product nuclei of (n,)
reactions are usually radioactive and are beta and gamma emitters.
Two of the neutron capture reactions which are important from the
radiological standpoint at most accelerator and nuclear reactor facilities are
the (n,) reaction in Co-59, which is
normal stable cobalt metal and quite commonly occurs in steel, to produce Co-60,
which is radioactive. The cobalt readily captures neutrons, and Co-60 has a
half-life of about 5 years. The other is the neutron capture in Na-23, which is
normal, stable sodium. In this case the product is the radioisotope Na-24.
Traces of sodium are present in the concrete shielding.
The human body is composed largely of water, about 60% by weight, which
contains many hydrogen nuclei. Elastic scattering
of the neutrons with the hydrogen nuclei will cause the protons
to recoil violently. Similarly elastic collisions of neutrons with carbon,
oxygen or other heavier nuclei will cause these to recoil. Because the mass of
protons and the other recoiling nuclei
is much greater than that of electrons, they generate a much denser ion path
resulting in more damage to the tissue. Once neutrons have been slowed down by
elastic collisions to thermal energy, 0.025 eV, they are readily captured
by some of the reactions described above.
A very common reaction is the (n,)
reaction, particularly with hydrogen. The gamma photon produced in this reaction
always has an energy of 2.2 MeV and will cause indirect ionization
as described previously. When neutrons are absorbed by an (n, )
reaction in the body the tissues will be further damaged by gamma radiation
in addition to damage which they receive in slowing down the neutrons.
Other radionuclides may be formed in the body by the
interaction of slow neutrons with stable nuclei.
However, the dose contributed by these radionuclides is usually insignificant
compared to the dose the neutrons themselves contribute.
Our normal method of protection from this external radiation hazard is
shielding. Shielding will consist of concrete, water, and/or poly-type
materials because of their high water content and possibly a borated material to
absorb the thermalized neutrons.
