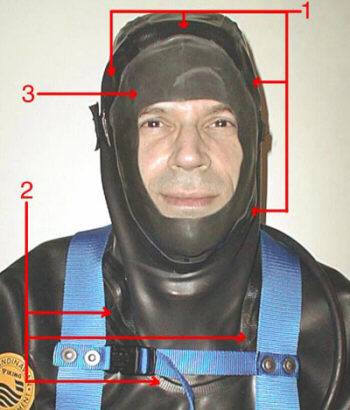

FRONT VIEW OF THE VIKING TURBO HOOD

  1. Suit material outer hood attachment to latex inner hood

  2. Outer hood attachment to body of Drysuit

  3. Latex full inner hood.

BACK VIEW OF THE VIKING TURBO HOOD

  1. Suit material outer hood

  2. Outer hood attachment to body of Drysuit

  3. Velcro band for adjusting fit of hood

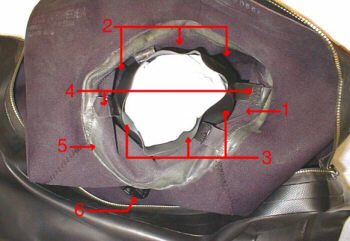

VIEW OF THE TURBO HOOD FROM INSIDE THE SUIT

  1. Suit material outer hood.

  2. The hollow space between inner and outer hoods fills with Drysuit air for added insulation.

  3. Neck of latex inner hood.

  4. Reinforced latex tabs attach inner hood to the body of the Drysuit, while allowing air to circulate between inner and outer hoods.

  5. Outer hood attachment to body of Drysuit.

  6. Inside of Drysuit inflator valve.

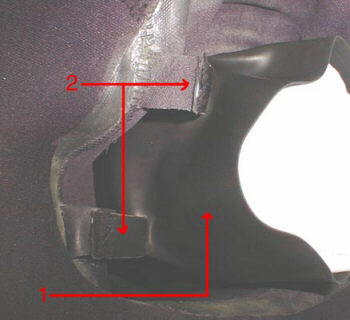

DETAIL: ATTACHMENT OF THE LATEX INNER HOOD

  1. Neck of latex inner hood.

  2. Textile reinforcement anchors for latex attachment tabs.
