M577 Command Post

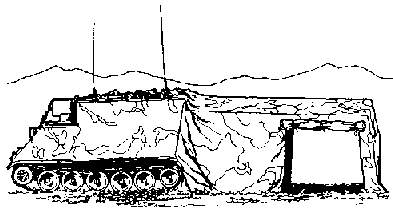

The command post variant of the M113 APC. The main modifications are the expansion of the passenger compartement to permit its occupants to stand and the installation of an air-conditioner (to protect fragile electronic equipment from over-heating, not for crew comfort). The commanders hatch is shifted forward on the deck, and the cargo door on the deck is eliminated. This vehicle also contains an integral 7.5 kw generator and a large tent which can be erected at the rear of the vehicle to expand the area available in the command center.
For more information go to

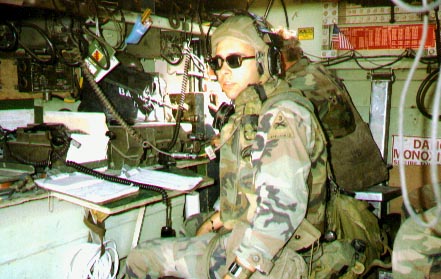

Inside the M577
 |
Length: | 4.86 m | Crew: | 2+6 |
| Width: | 2.68 m | Armament: | none | |
| Height: | 2.64 m | |||
| Speed: | 60 km/h | |||
| Fording: | amphib. | Ammo: | none | |
| Maint.: | 6 | |||
| Fueld Cap.: | 360 L | |||
| Range: | 480 km |
