3-7 For the circuit in figure do the following

a. Assume Il = 500 mA

b.Calculate Vdc(cap)and Tj

c.If Tj is less than maximum allwable Tj assume a higher Il and repeat step b.

d.If Tj is above than maximum allwable Tj assume a lower Il and repeat step b.

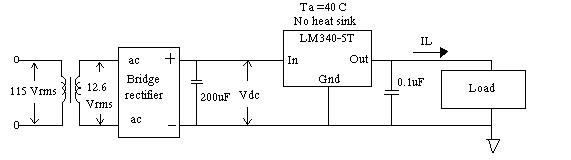

Schematic for problem

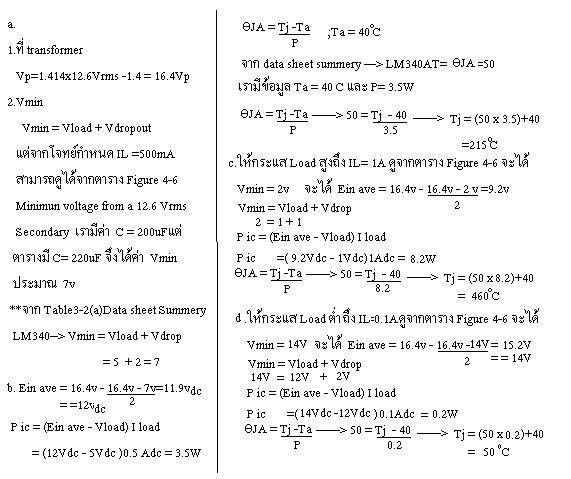

Solution
