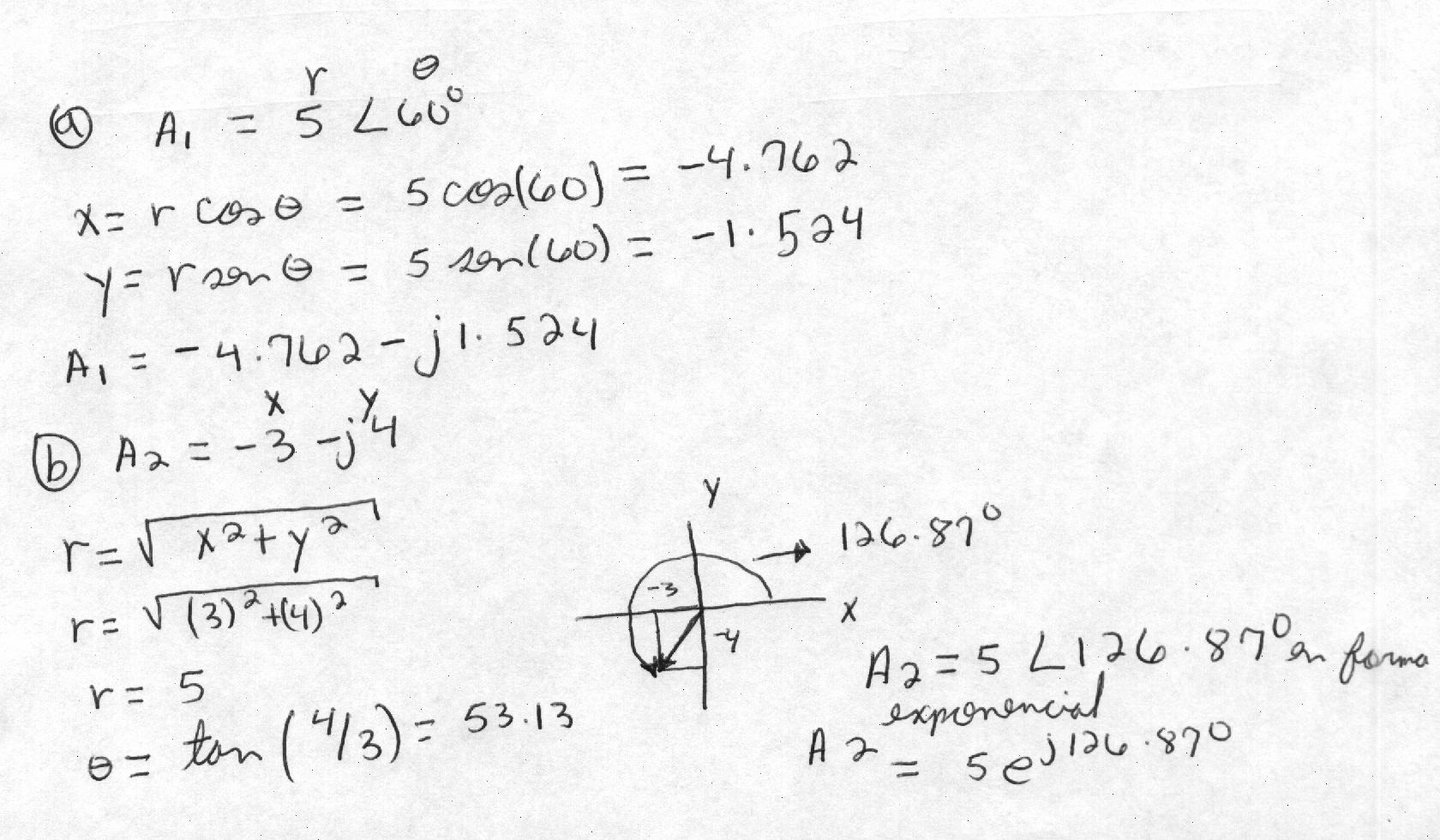

| 2.1- Given the complex number A1 = 5 angulo 60 and A2 = -3-j4, (a) convert A1 to rectangular form; (b) convert A2 to polar and exponential form; (c) calculate A3 = A1 +A2, giving your answer in polar form; (d) calculate A4 = A1*A2 giving your answer in rectangular form; (e) calculate A5 = A1/(A2)* giving your answer in exponential form. |
| 2.4- For the single phase circuit shown, I = 10 angulo 0. (a) Compute the phasors I1,I2 and V. (b) Draw a phasor diagram. |
| 2.17- An industrial plant consisting primarily of induction motor loads absorb 1000 KW at 0.7 power factor lagging. (a) Compute a required KVA rating of a shunt capacitor to improve a power factor to a 0.9 lagging. (b) Draw the power triangle. |
 |
 |
 |
 |
