| BACK AXEL AND SHOCKS |

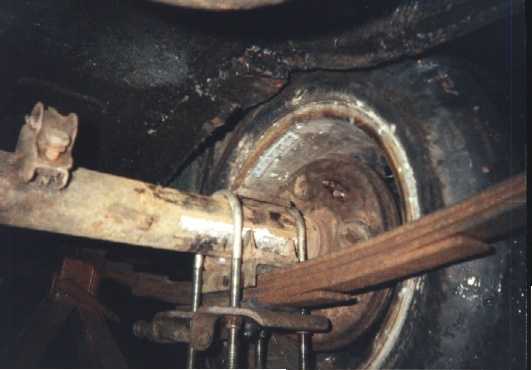

| Back axel fitted in place but loose enough to float to get it center,the axel leaf spring mounts were cut off so it could twist up or down and side to side,the mounts were then welded back in the new position |
 |

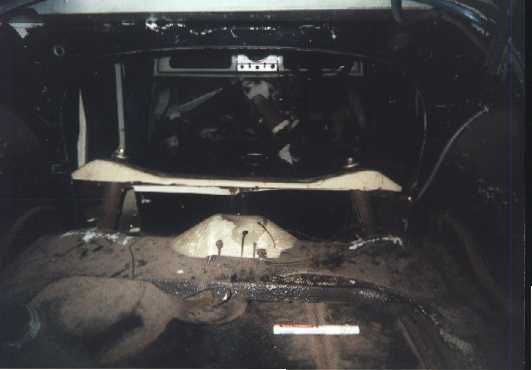

| Shocker mount,this panel was removed from a MKII Escort,holes were cut in the floor for the shockers to come through,the panel was then tacked in place,extra strenght was added in case i use coil over shocks in the future. |
 |

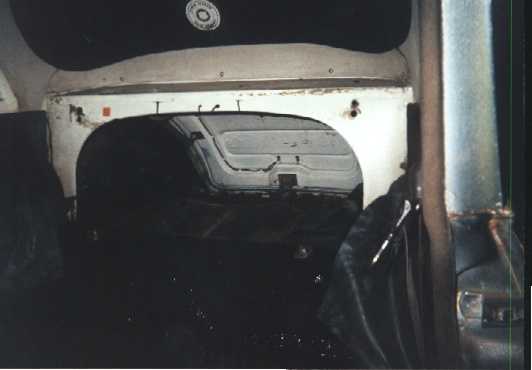

| You can just see the finished shocker mount,it doesn`t help that I painted it black. |
 |
