| CENTER XMEMBER REMOVAL |

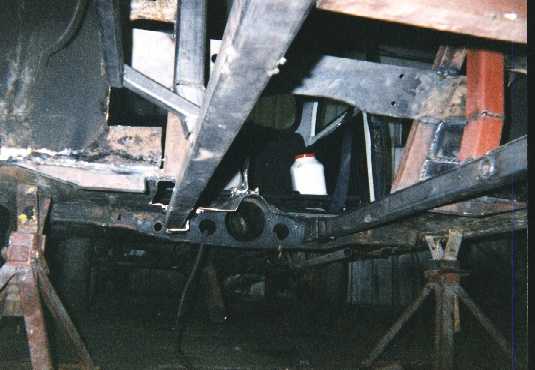

| Under veiw of new chassis were it meets the existing center Xmember |
 |
| New bulkhead panel in place above steering rack mount |
 |

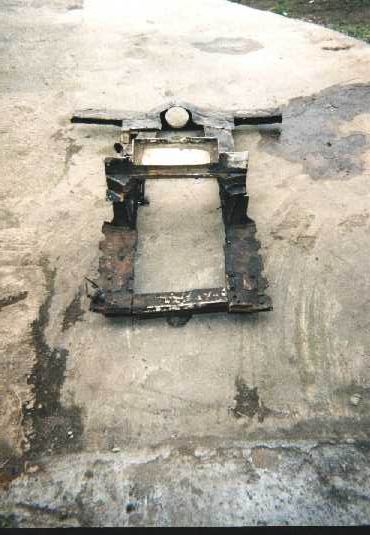

| Center Xmember removed waiting for handmade copy to be made and fitted in place |
 |

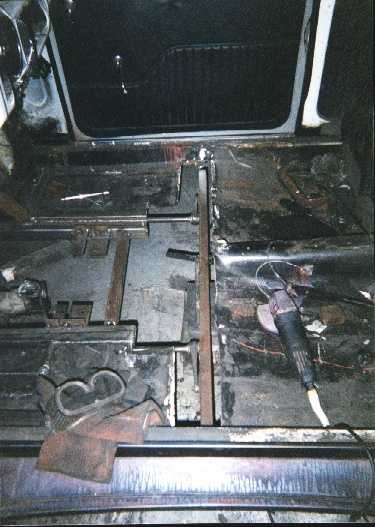

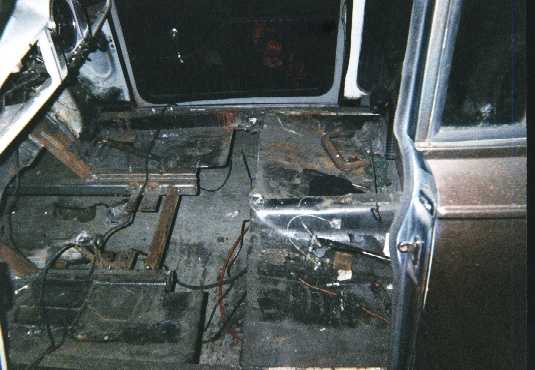

| This is how much I have removed from the car and replaced with new handmade chassis and of course to get some room for the engine and box. |
 |

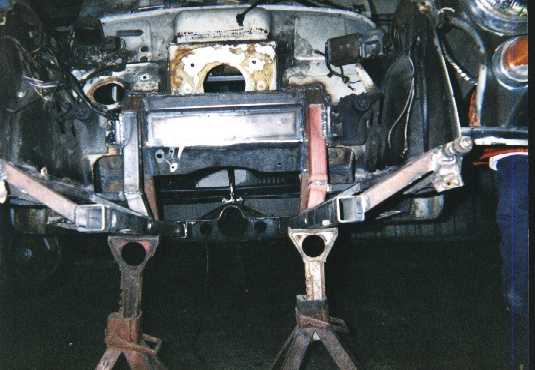

| New center Xmember in place with torsion bars used to make sure its in the right place, made from 50X30 box. it was then cut in the center and a piece of flat steel 30X8mm was rolled into a circle to allow the prop to go through. |
 |
