T�ss� on kaikki 33 kappaleletta KR:n siipi korvakkeita. Materiaalina on k�ytetty 4130
ilmailuter�st�.
Pulttien rei�t porattiin n.0.2 mm alamittaan. Kaikki rei�t k�siteltiin epoksilla ennen asennusta.
Korvakkeet asennettuna runkoon.
Siiven kiinnitys.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| WING SPAR FITTINGS | |||||||||||||||||||
|
|||||||||||||||||||

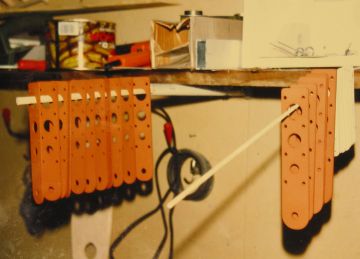

| The wing of KR-1 includes 32 pcs wing spar fittings. We made them 4130 steel material delivered by Valmet Oy. Drilling has been made by CNC-machine. T�ss� on kaikki 33 kappaleletta KR:n siipi korvakkeita. Materiaalina on k�ytetty 4130 ilmailuter�st�. |
|||||||||||||||||||
|
|||||||||||||||||||
| Bolt holes has been drilled with jig.Unfortunately I don't have any photos left concerning it. Diameter of holes was ca.0.2 mm smaller than diameter of bolts. Before install all holes are handled with epoxy glue. Pulttien rei�t porattiin n.0.2 mm alamittaan. Kaikki rei�t k�siteltiin epoksilla ennen asennusta. |
|||||||||||||||||||
|
|||||||||||||||||||

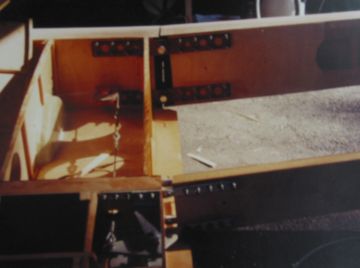

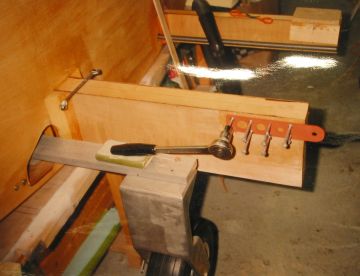

| All spar fittings has been installed to the fuselage. Korvakkeet asennettuna runkoon. |
|||||||||||||||||||
|
|||||||||||||||||||

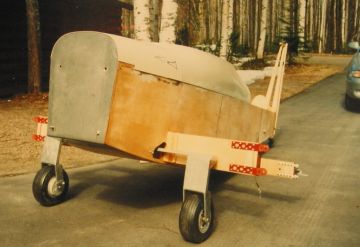

| The joint of wing and fuselage. Siiven kiinnitys. |
|||||||||||||||||||
