Three MAF Shootout

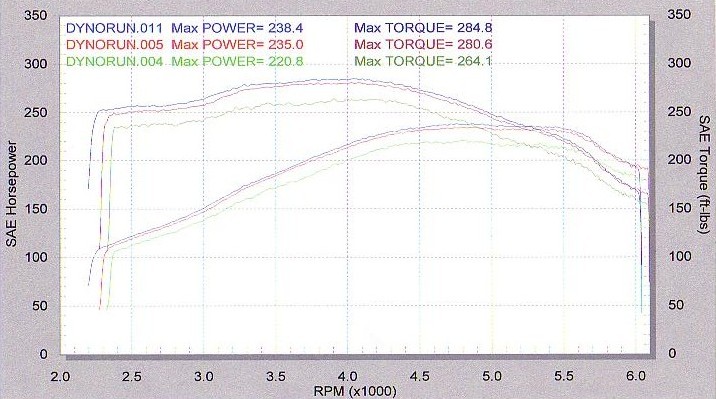

BLUE is the Pro-M 75mm Bullet and the homemade CAI
RED is the Pro-M 77
GREEN is the stock MAF with a K&N and the air silencer removed.

A quick glance at the numbers:

Stock:                     220.8 rear wheel horsepower 264.1 ft-lbs of torque at the wheels
Pro-M 77               235.0 rwhp   (+14.2hp)         280.6 rw ft-lbs (+16.5ft-lbs)
Pro-M 75mm Bullet 238.4 rwhp  (+17.6hp)          284.8 rw ft-lbs (+20.7 ft-lbs)

WINNER:
PRO-M 75MM BULLET It sported the best numbers by a minimal margin, but it costs half of the price of a Pro-M 77.

With a larger MAF and air filter, bumped timing, and shorty headers, my car is making the factory flywheel rating at the drive wheels.  While these numbers will not win a major NMRA drag race, they are impressive in illustrating how easy it is to make substantial gains on a 94 or 95 5.0 Cobra with minimal cash invested.

Of note:
The Pro-M 75mm Bullet is not a replacement one.  It does not fit in the stock airbox, and requires the use of
a CAI

The Pro-M 77 was forced to breathe through the stock air 'S' turn intake hose.  Due to it's size, I was unable to make a suitable CAI for the 77.

The Pro-M Bullet is shown at
Pro-Flow's web site
How Can Someone Duplicate My Results
This questions comes up frequently on Corral.net's Forums.  People will say they didn't get the same results when they used a replacement Bullet in the factory airbox or with this companies CAI they didn't have as nice of a gain etc.  The best advice I can give someone looking to duplicate these results is to buy a Bullet as pictured in the forth image down, the meter on the far right.  The calibration scribed on my meter reads as follows:

Model 75mm94-5C
Serial 00a4435
CAL 19C

Also, you'll need to build a CAI like I did, with directions listed
here.

Good luck!
