114mm  F/8 Newton

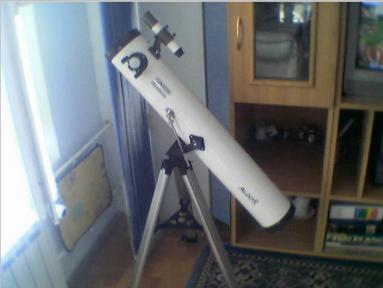

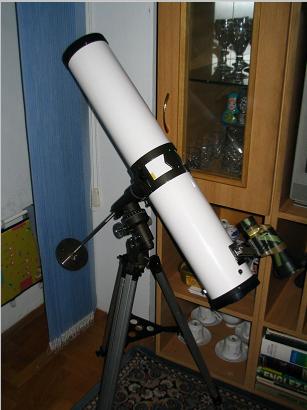

This was my first real astronomic instrument (the very first one was a refractor with the objective made form a eyeglass lens and homemade huygens eyepieces ).  It cost me some 200$ with a 25mm Plossl and 10mm Kellner eyepieces. The alt az mount was very difficult to use so i've buyed a EQ3 head
Now the telescope was very adequate for visual observing , excellent for a beginner like me because of the half 7x50 binocular straight image finder.

After some time , the desire to make pictures  (and to see galaxies arms ,not only cores) made me to make a stepper engine RA drive.

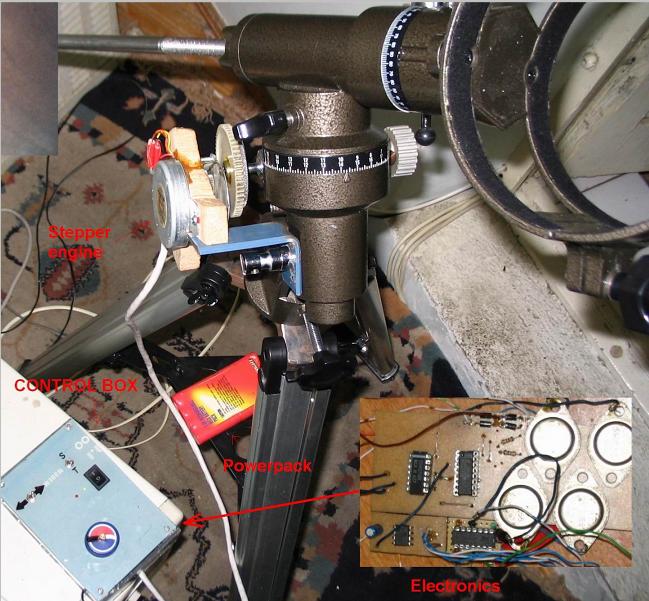

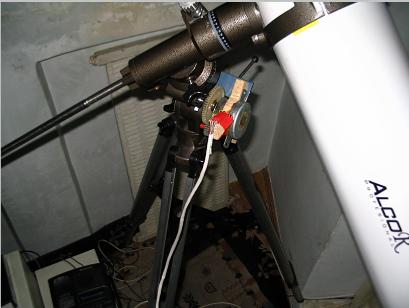

The R.A. drive
The drive system is made from a  unipolar floppy stepper engine , a gear train part scavenged part builded and a electonic controller based on a stepper driver combined with a impulse generator .All this work save me some 120 euro's , and was moderately good for astrophoto (at over 900mm focal lenght).
Sample foto
