These LEGO creations were made by me using ideas I gathered from watching Battle Bots on tv. If you click on the picture, you can view it at a bigger size.

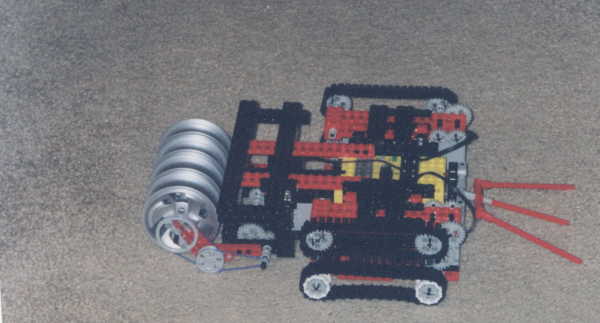

	This is the robot "El Diablo." It has a track on both sides so it can run normally as well as inverted. It has a large drum on the front as its main weapon with an auxilairy wedge at the back.

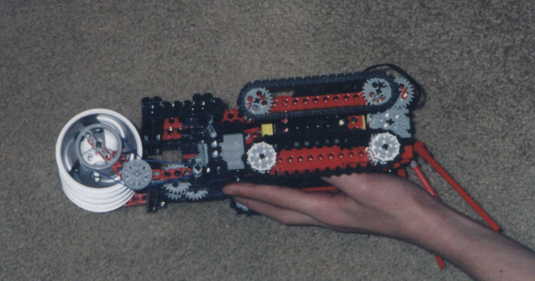

	This is another shot of the drive train and the drum.

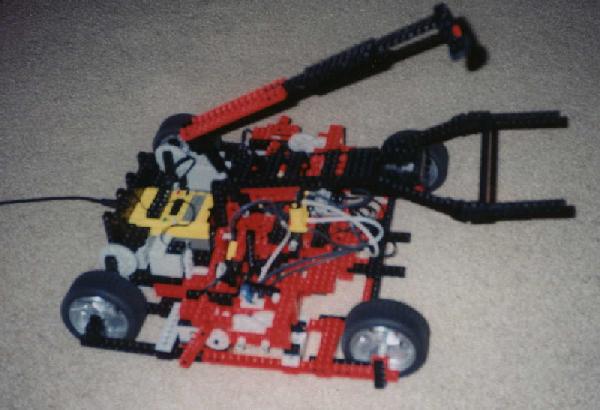

	"Complete Control" is a robot that features a pneumatic lifter with a "thumb" above it. This is used to get underneath other robots and grab them so they can be picked up and moved around.
	My version of "Backlash" has a large spinning disc as its main weapon. The disc is belt driven through a motor located on the chasis. It spins in an upwards direction so robots are hit upwards when they come in contact with it.

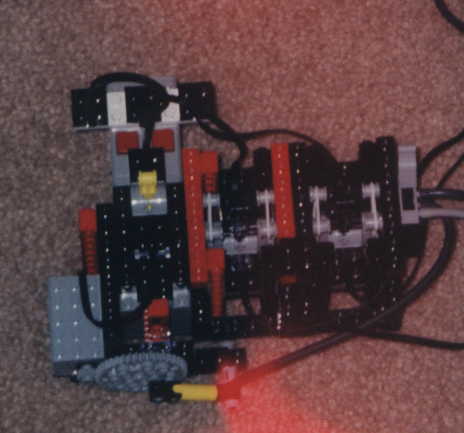

	This is a controller I created using three polarity switches and a pneumatic valve. This can be used to operate a robot with two motor operated functions as well as a pneumatic one.

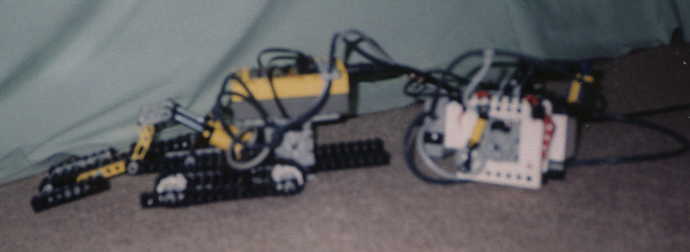

	Another invention that had no direct tie to any particular Battle Bot, but rather one of my own design. It is track driven and has a front pneumatic lifter.

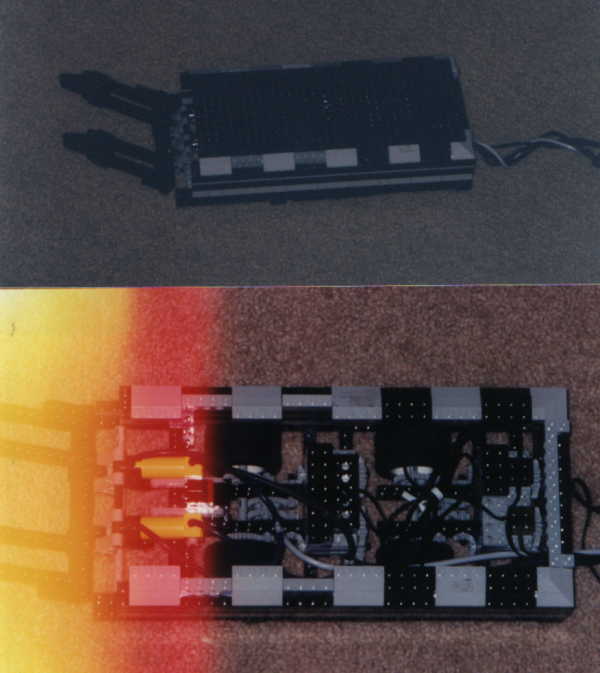

	"Vlad the Impaler" was my first robot to have all four wheels driven by their own individual motor. It has a front lifter powered by two pneumatic cylinders. In the bottom picture you can see the drivetrain and the cylinder placement. (sorry for the bad picture.)

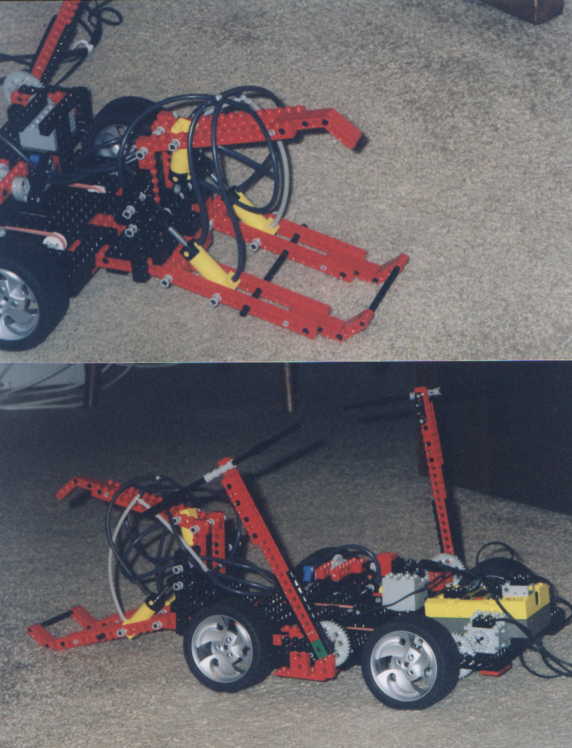

	This is my robot "Disector," which has many weapons. First of all there is a pneumatic gripper in the front used to clamp down on or lift up other robots. It also has two independently driven side hammers which can hit the opponenent once locked in the jaws.
