Honda 50 Identification Guide

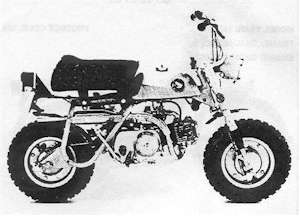

	Z50AK1 MINI TRAIL 50 Sell Date: 1969-1970 Release Date: 03-01-69 Product Code: 045 Frame: Z50A-120088~ Engine: Z50AE-120088~ Color: Candy Red / Silver, Bright Yellow / Silver, �� Candy Blue / Silver FT: Black grips & black plastic levers FT: Battery is standard equipment K1 only �

	Z50AK2 MINI TRAIL 50 Sell Date: 1970-1971 Release Date: 07-01-70 Product Code: 045 Frame: Z50A-270236~ Engine: Z50AE-270236~ Color: Candy Ruby Red / White �� Candy Sapphire Blue / White �� Mexican Yellow / White FT: "MINI TRAIL" Fuel tank emblem is red & black FT: Black grips & silver aluminum levers K2~78 CH: extended RR fender �

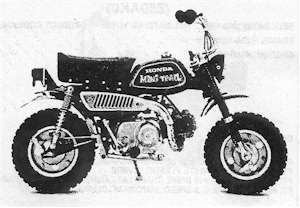

	Z50AK3 MINI TRAIL 50 Sell Date: 1972 Release Date: 01-01-72 Product Code: 120 Frame: Z50A-1000001~ Engine: Z50AE-1000001~ Color: Candy Gold / Black �� Light Ruby Red / Black FT: Fuel tank panel is black; "MINI TRAIL" logo is orange FT: All new chassis K3~78 FT: Left side cover is blank FT: Chrome chain guard FT: Chrome fenders K3~77 �

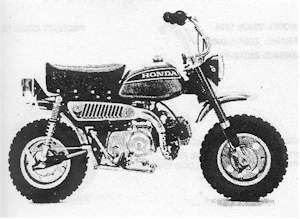

	Z50AK4 MINI TRAIL 50 Sell Date: 1973 Release Date: 11-01-72 Product Code: 130 Frame: Z50A-3000001~ Engine: Z50AE-3000001~ Color: Hawaiian Blue Metallic, Candy Orange FT: Tank stripe is black & white with orange "HONDA" logo FT: black chain guard K4~78 CH: "Z50" logo on left side cover K4~77 �

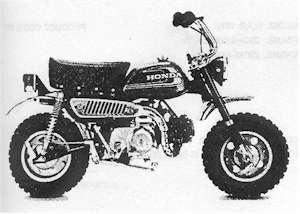

	Z50AK5 MINI TRAIL 50 Sell Date: 1974 Product Code: 130 Frame: Z50A-5000001~ Engine: Z50AE-5000001~ Color: Candy Sapphire Blue, Candy Topaz Orange FT: Fuel tank stripe is yellow/black

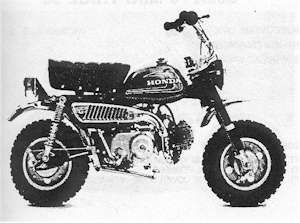

	Z50AK6 MINI TRAIL 50 Model Year: 1975 Product Code: 130 Frame: Z50A-6000001~ Engine: Z50AE-6000001~ Color: Candy Ruby Red FT: Fuel tank stripe is orange/yellow/black
