(Connection between DC and DDH)
The Story of "Dreamcast Debug Handler"
and the
"A.G.E. - Demo"
(Alles Ganz Einfach - everything's
f...cking easy)
(by Skywalker of Realworld Technology / Hitmen)
Page 2

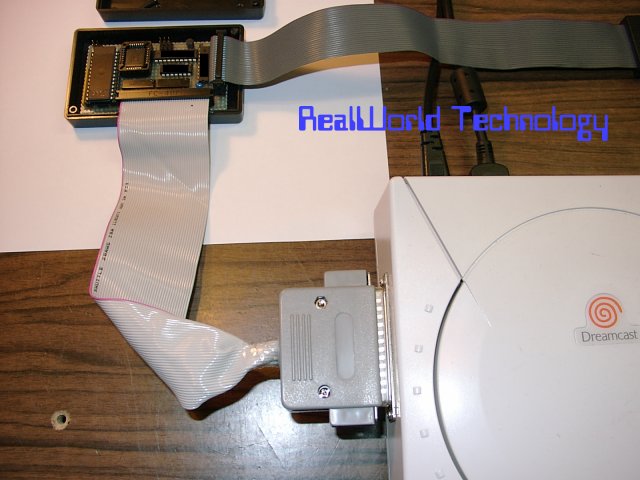

The hardware is currently connected
to the Dreamcast using a 50pin SUB-D connector. Nearly all pins are used
(40), so its quite a little work to solder this connector inside your Dreamcast!
(Connection between DC and DDH)

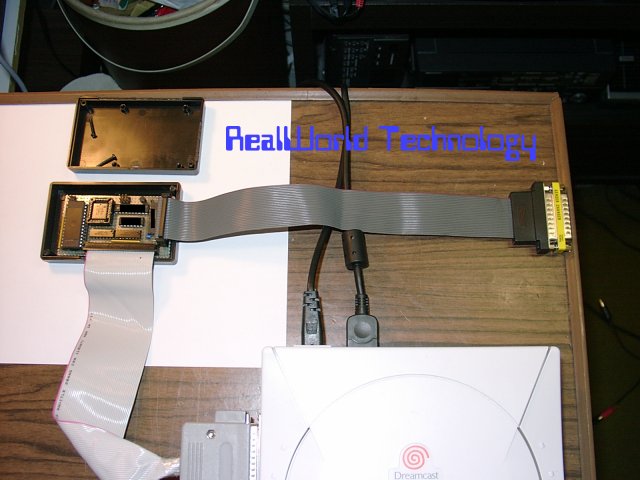

The connection between host and
DDH is performed using a standard Parallelport. This allows you to easily
connect your DDH to a host system which offers a single ParPort, even unidirectional
protocol is supported. Using this, you have powerful control over your
Dreamcast from the hosts side !
(Parallelport connector to host)
