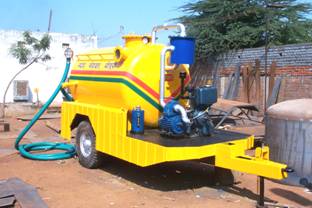

 Vacuum Emptier (Back) |

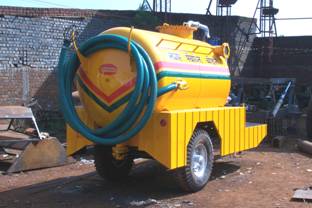

 Vacuum Emptier (Front) |
Vacuum Suction Machines
3000 L VACUUM EMPTIER
|
Vacuum Emptier (Back) |
Vacuum Emptier (Front) |
TECHNICAL SPECIFICATIONS
| Tractor Trolley | Tractor towed, 2 wheeled, Carrying Capacity 5000 Kg, suitable for Road speed of 30 km/hr. Single axle of alloy steel pipe, Disc Type. 2 nos. of Tyre of 9.00x16 size. The chassis shall be made from reinforced structural steel of MC150. |
| Sludge Tank | Round shape of 3000 L Capacity made of 5 mm M S Sheet thickness. The tank shall have dish-end end of 5 mm M S sheet. Glass sight level Indicator shall be provided. 50 NB for suction shall be provided from Tank to Pump. PVC Heavy Duty 75 mm x 15 m long Pipe with suction strainer shall be provided for suction from septic/sludge tank. |
| Float Valve | It stops the suction automatically on reaching specified level |
| Pump | Oil sealed Vacuum pump to be driven by base mounted direct coupled with Diesel Engine |
| Diesel Engine | Diesel engine shall be air cooled, single cylinder type. |
| Valves Provioded |
|
| Towing Hook | 1 number towing hook of 28 mm size with 25 mm pin shall be provided. |
