Mobile Toilets

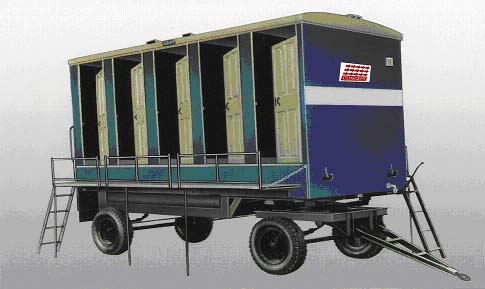

Trolley Mounted Mobile Toilet

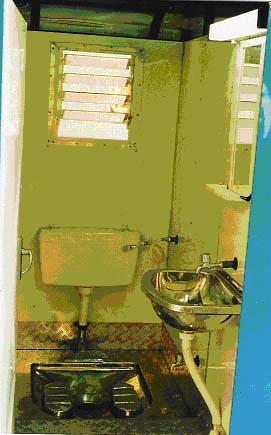

Toilet

Type: Modular Light Weight Sturdy

# Toilet Cabins: 10 (5 on each side)

Frame: Steel

Toilet Seats: Fibre Glass/Stainless Steel

Wash Basin: Stainless Steel

Water Tap: Chrome Plated brass

Wall & Ceiling: Panelled with Fibre Glass Reinforced board

Excreta Tank: One, 1200 Liter capacity at bottom below the toilet seats with 4” PVC drainage pipe of 3 M length having butterfly valve for discharging. This pipe can be connected to nearby sever line. Alternatively, an opening of 200 mm diameter with airtight cover shall be provided for suction by Vacuum Suction Machine for emptying.

Walkway: Made of Steel structure Foldable Type

# Water Over Head Tank: 2

# Night Soil tank: 2

Customer can Provide the permutation and Combination of # Toilets

Trolley

Carrying Capacity : 5000Kg

Road speed : 30Km/hr

Length : 3660mm

Width : 1830mm

# Axle : 2

Material : Steel

Axle Section : Pipe

# Wheels: 2

Wheel Types: Disc

Tires: 4

Size: 7.50X16

Suspension: Leaf Spring

# Back Reflector: 2

# Towing hooks: 1

Pin Size: 40 mm

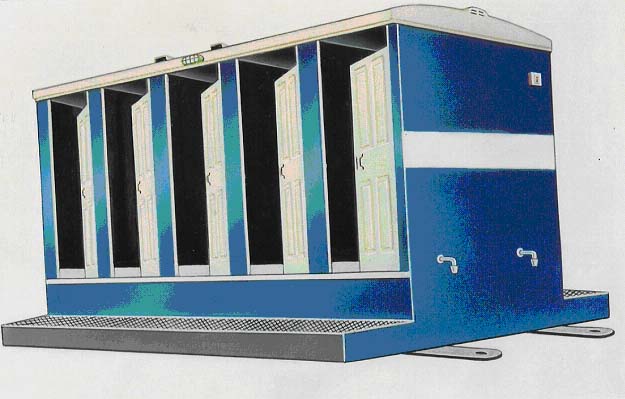

Shift-able Toilet
