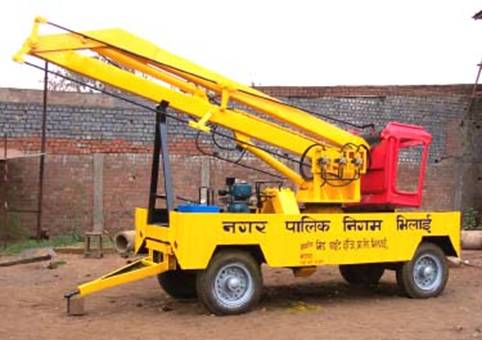

Elevating Platform

Mounting	Truck/Tractor
Working Height	7 m - 11 m
Type	Double boom each operated by double acting hydraulic cylinder having adequate stroke. Upper and lower boom inclined to nearly 15^o while in parked position.
Cage	Reinforced fiberglass cage mounted on to a steel cage, which is insulated for 600V. The linkage of the cage shall be such that it will remain vertical during lifting / lowering to ensure safety of worker in the cage.
Tractor Trolley Carrying Capacity Road speed km/hr Trolley Length mm Trolley Width mm Trolley Height mm # Axle Material Axle Section mm # Wheels Type # Tire Size Body	5000 Kg 30 Km/hr 3290 mm 2000 mm 1100 mm 2 Alloy Steel Pipe 4 Disc 4 750 X 60 Chassis, Channel, 150x75 / 75x40 Base Plate: checkered plate Side panels: 18G formed sheet
Central Pivot	Arms can swivel around by 360^o on ring gear due to pinion mounted on gear box driven by hydraulic motor for multi-direction working.
Side Rigger	While at work, the trolley shall be locked to the ground by two riggers on one on either side which will be operated by double acting hydraulic cylinders.
Hydraulics	Hydraulic system operated by handle start diesel engine, mounted on Tractor trolley. Complete with hydraulic pipe, hoses, fittings, rotary joint and manually Operated valves.
Twin Hook Number Pin Size	1 40 mm
Accessories	2 Back Reflectors
Painting Base Finish Shed	Zinc Chromate Primer, 1 Coats Synthetic Enamel, 2 Coats Yellow or as per customers choice
