| ATV |
| ITEM DETAIL | ||

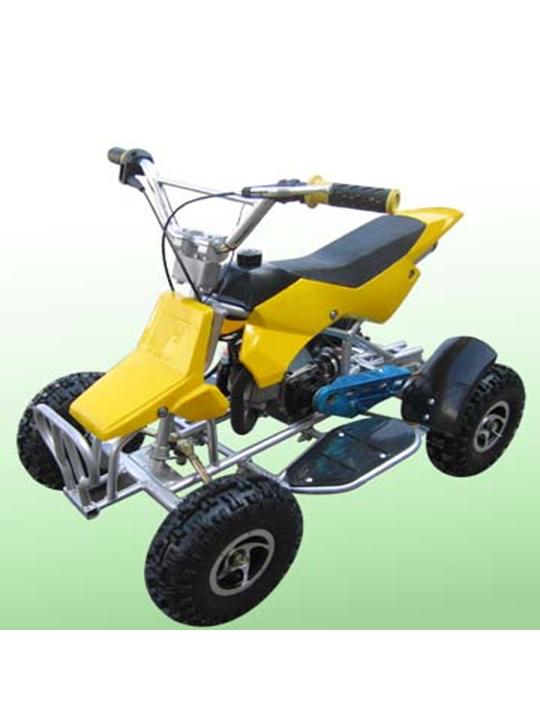

 | Model NO:FY-AB1
Specifications
1). Engine: 47cc/ 49cc, Single Cylinder, Two-stroke, Air Cooled 2). Max.Power: 2.5kw/ 8700rpm 3). Max. Torque: 3.2 N.m/ 8000rpm 4). Compress Ratio: 7.6:1 5). Ignition Mode Contactless : Hand Pull Start 6). Tire: Front 4.10-4 ; Rear 4.10-4 7). Tank Volume: 1L 8). Fuel Type: Unleaded Petrol/ Oil Mix (Ratio 25:1) 9). Brake: Rear Disc Brake 10). Max Speed: 40km/h 11). Max. Load: 95kgs 12). Dimensions: 990mm(L) * 605mm(W) * 500mm(H) 13). N.W / G.W: 30 / 34 kgs Features a). Without Suspension b). Transmission System: Chain Drive Through Automatic Clutch c). Starting System : Manual Hand Pull ( Alloy Pull Starter Shell can be selected) d). 2% Free Spare Parts will be Sent for FCL ( full container loaded)
| Package Information
1). Handlebar will be knocked-down 2). One Piece in One Carton 3). Shipping Mark: As Per Your Request 4). Carton Size: 101 * 58 * 59 cm 5). Container Capacity: 85pcs/20'ft ; 180pcs/40'ft; 180pcs/40'HQ 6). Accessories: One Page of Sticker, One Bag of Tools, One Mixing Tank, One piece of English User Manual 7). Colors: Available by Your Request Certification & Quality Guarantee CE Certification Quality Gurantee: 12 Monthes Mini Order Quantity, Delivery Time & Payment Terms MOQ: 20pcs Samples: Available Payment Terms: T.T or L/C at sight Delivery Time: 15 Days Loading Port: Ningbo/Shanghai
|

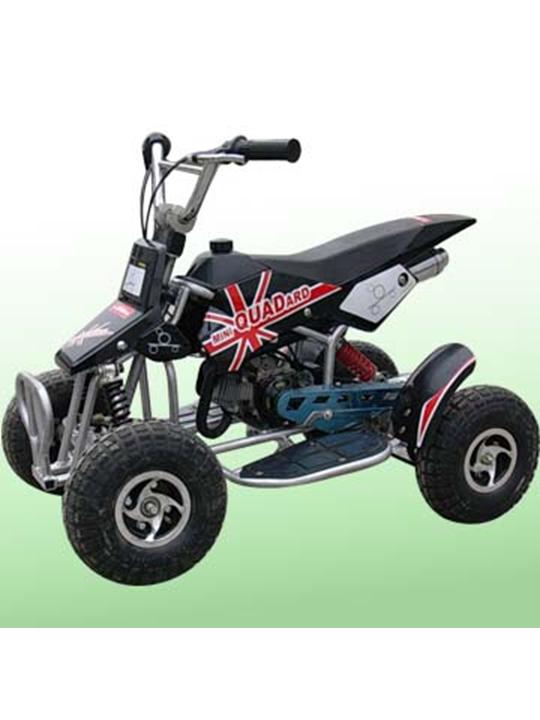

 | Model NO:FY-AB2
Specifications
1). Engine: 47cc/49cc, Single Cylinder, Two-stroke, Air Cooled 2). Max Power: 2.5kw/ 8700rpm 3). Max Torque: 3.2 N.m/ 8000rpm 4). Compress Ratio: 7.6: 1 5). Ignition Mode Contactless: Hand Pull Start 6). Tire: Front 4.10-4; Rear 4.10-4 7). Tank Volume: 1L 8).Fuel Type: Unleaded Petrol/ Oil Mix (Ratio 25:1) 9). Brake: Rear Disc Brake 10). Max Speed: 40km/h 11). Max Load: 95kgs 12). Dimensions: 990mm(L) * 605mm( W) * 500mm (H) 13). N.W/ G.W: 31 / 35kgs Features a). With Double Suspension in Front, Single Rear Suspension b). Transmission System: Chain Drive Through Automatic Clutch c). Starting System: Manual Hand Pull (Alloy Pull Starter Shell can be Selected) d). 2% Free Spare Parts will be Sent for FCL ( full container loaded)
| Package Information
1). Handlebar will be knocked-down 2). One Piece in One Carton 3). Shipping Mark: As Per Your Request 4). Carton Size: 101 * 58 * 59 cm 5). Container Capacity: 85pcs/20'ft ; 180pcs/40'ft; 180pcs/40'HQ 6). Accessories: One Page of Sticker, One Bag of Tools, One Mixing Tank, One piece of English User Manual 7). Colors: Available by Your Request Certification & Quality Guarantee CE Certification Quality Gurantee: 12 Monthes Mini Order Quantity, Delivery Time & Payment Terms MOQ: 20pcs Samples: Available Payment Terms: T.T or L/C at sight Delivery Time: 15 Days Loading Port: Ningbo/Shanghai
|

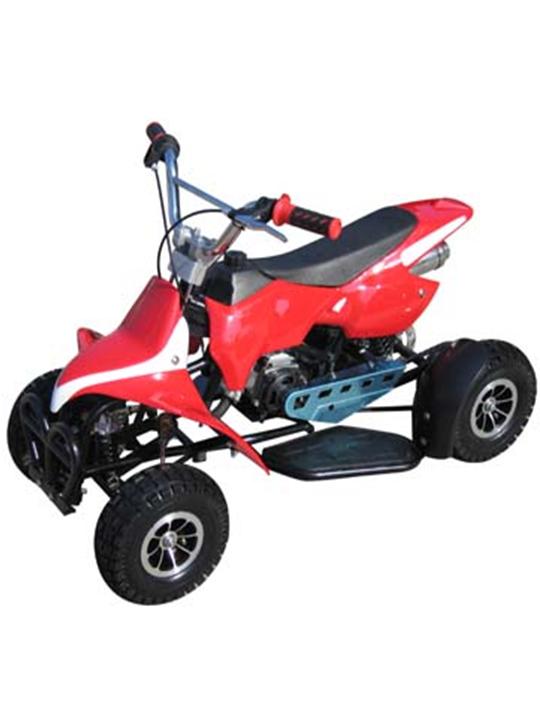

 | Model NO:FY-AB3
Specifications
1). Engine: 47cc/49cc, Single Cylinder, Two-stroke, Air Cooled 2). Max Power: 2.5 kw/ 8700rpm 3). Max Torque: 3.2 N.m/ 8000rpm 4). Compress Ratio: 7.6: 1 5). Ignition Mode Contactless: Hand Pull Start 6). Tire: Front 4.10-4; Rear 4.10-4 7). Tank Volume: 1L 8).Fuel Type: Unleaded Petrol/ Oil Mix (Ratio 25:1) 9). Brake: Rear Disc Brake 10). Max Speed: 40km/h 11). Max Load: 95kgs 12). Dimensions: 1000mm(L) * 580mm( W) * 660mm (H) 13). N.W/ G.W: 30 / 36kgs Features a). With Single Suspension in Front, Double Rear Suspension b). Transmission System: Chain Drive Through Automatic Clutch c). Starting System: Manual Hand Pull (Alloy Pull Starter Shell can be Selected) d). 2% Free Spare Parts will be Sent for FCL (full container loaded)
| Package Information
1). Handlebar will be Knocked-down 2). One Piece in One Carton 3). Shipping Mark: As Per Your Request 4). Carton Size: 104 * 58 * 60 cm 5). Container Capacity: 80pcs/20'ft ; 176pcs/40'ft; 176pcs/40'HQ 6). Accessories: One Page of Sticker, One Bag of Tools, One Mixing Tank, One English User Manual 7). Colors: Available by Your Request Certification & Quality Guarantee CE Certification Quality Gurantee: 12 Monthes Mini Order Quantity, Delivery Time & Payment Terms MOQ: 20pcs Samples: Available Payment Terms: T.T or L/C at sight Delivery Time: 15 Days Loading Port: Ningbo/Shanghai
|

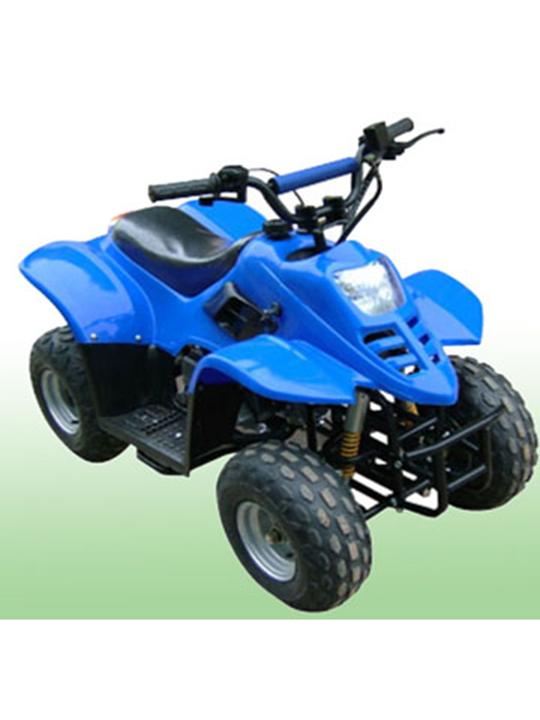

 | Model NO:FY-50ST-1
Specifications
1). Engine: Single Cylinder, Four-stroke, Air Cooled, Level Engine 2). Displacement(ml): 49.0 3). Bore x Stroke: 39.0 x 41.4mm 4). Standard Power: 2.0kw/7500r/min 5). Max. Torque: 2.5N.m/ 5000r/min 6). Starting: Electric 7). Drive: Chain Drive 8). Brake (Front/Rear): Drum/ Disc 9). Brake Distance(m/30km):<= 4.00 10). Transmittion: Automatic Transmittion 11). Clutch: Automatic Clutch 12). Dimension(mm): 1200(L) * 750 (W) * 920 (H) 13). Climbability:=>30 degree 14). Front HeadLight : Single; Front Turnign Light: No 15). Max Speed (km/h):=>45 16). Tire Size( Front/Rear): 16 x 8-7 / 16 x 8-7 Features a). 50cc Engine Gives Superb Performance b). Front and Rear Suspension c). Rev and Go is Easy to Ride d). Rear Pull Switch to Kill Engine e). Chrome and black Handlebars can be Selected f). Fully Enclosed Footwell- Safter for Younger Users g). Fully Adjustable Throttle Restrictor Regulates Speed as Necessary h). Independent A Arm Front Suspension for Improved Handling i). Hydraulic Rear Brake- Quick Braking and Minimum Maintenance J). Virtually Unbreakable PP Bodywork k). It can be with Alarm l). It can be with Remote Stop and Start m). 2% Free Spare Parts will be Sent for FCL
| Package Information
1). Front Bumper, Handlebars, wheels will be Knocked-down 2). Iron Shelf Package + Carton 3). One Piece in One Carton 4). Shipping Mark: As Per Your Request 5). N.W/ G. W: 73.5 kgs /83.5 kgs 6). Carton Size: 116 * 71 * 62cm 7). Container Capacity: 54pcs/ 20'ft; 90pcs/40'ft; 120pcs/40'HQ 8). Accessories:Stickers, One Bag of Tools, One English User Manual, Warning Labels 9). Colors: Available By Your Request Certification & Quality Guarantee CE Certification Quality Gurantee: 12 Monthes Mini Order Quantity, Delivery Time & Payment Terms MOQ: 15pcs Samples: Available Payment Terms: T.T or L/C at sight Delivery Time: 18 Days Loading Port: Ningbo/Shanghai
|
