For sale:

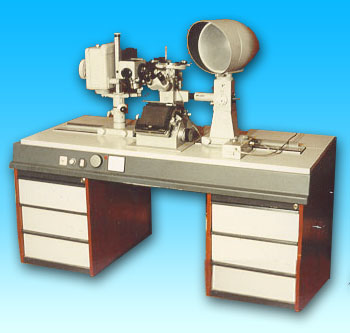

  METALLURGICAL MICROSCOPE REICHERT Me F2   METALLOGRAPH

Metallurgical inverted Microscope for research, development, quality assurance and laboratory analysis. The Microscope is set on an Optical bench with superior frame stability against vibrations. Large Rotation Stage with Coaxial XYcontrols. Coaxial Coarse and fine focus controls.

Click here    for enlarged image

Universal Illuminator for bright field and dark field, 12V 100 W halogen and 200W Xenon Light Source.

Viewing Heads Binocular head, 45 inclination.

Eyepieces:

Two pairs eyepieces Plan compensated PK 6,3x and PK 12,5x.      PK 4 x Photo,  PK 5x Photo,               PK 6.3x,  PK 8x PK 12,5x designed to accept 19 mm. Diameter reticules for measuring purposes.

Objectives:

Plan 4/ 0,08  250/-,   Epi 8/ 0,15 250/0,    Epi 16/ 0,25 250/0,   Epi 40/ 0,55 250/0,   Epi 63/ 0,85 250/0,   Plan oil 125/ 1,25 250/0

Other items:

Optical bench with built-in base transformer and electrical devise for variable intensity control to operate 100W Halogen and 200W Xenon Light Source. Glass plate for measuring 1/0,01mm. Five metallic plates for Rotation Stage of the Microscope Attachment for low magnification observation of uneven surfaces and broken parts. Special holder for putting small specimens on the stage of the microscope.   Three stage clips. Electrical control device with a shutter for photomicrography system.  Adjustable tube with eyepiece 6x for fine focusing on the photomicrography and projection screens.

Accessories:

Projection screen (Didaktoscop) with diameter 220mm and possibility for increasing image from 50 : 1 to 1500 : 1. REICHERT Microhardness tester with a measuring objective and indenter with diamond prism for testing microhardness on the stage of the microscope.

Comments:

For a long time  REICHERT metallograph Me F2 has become a classic for metallography work. The system is in an excellent condition.The sideport can accept digital camera. A large projection screen is used for discussion/teaching.

Price: US $4800.00 lowest,  including crating, insurance and shipping by air to  international airports in Europe and East North America.
