| Model 589 Equasonne | ||||||||||||||

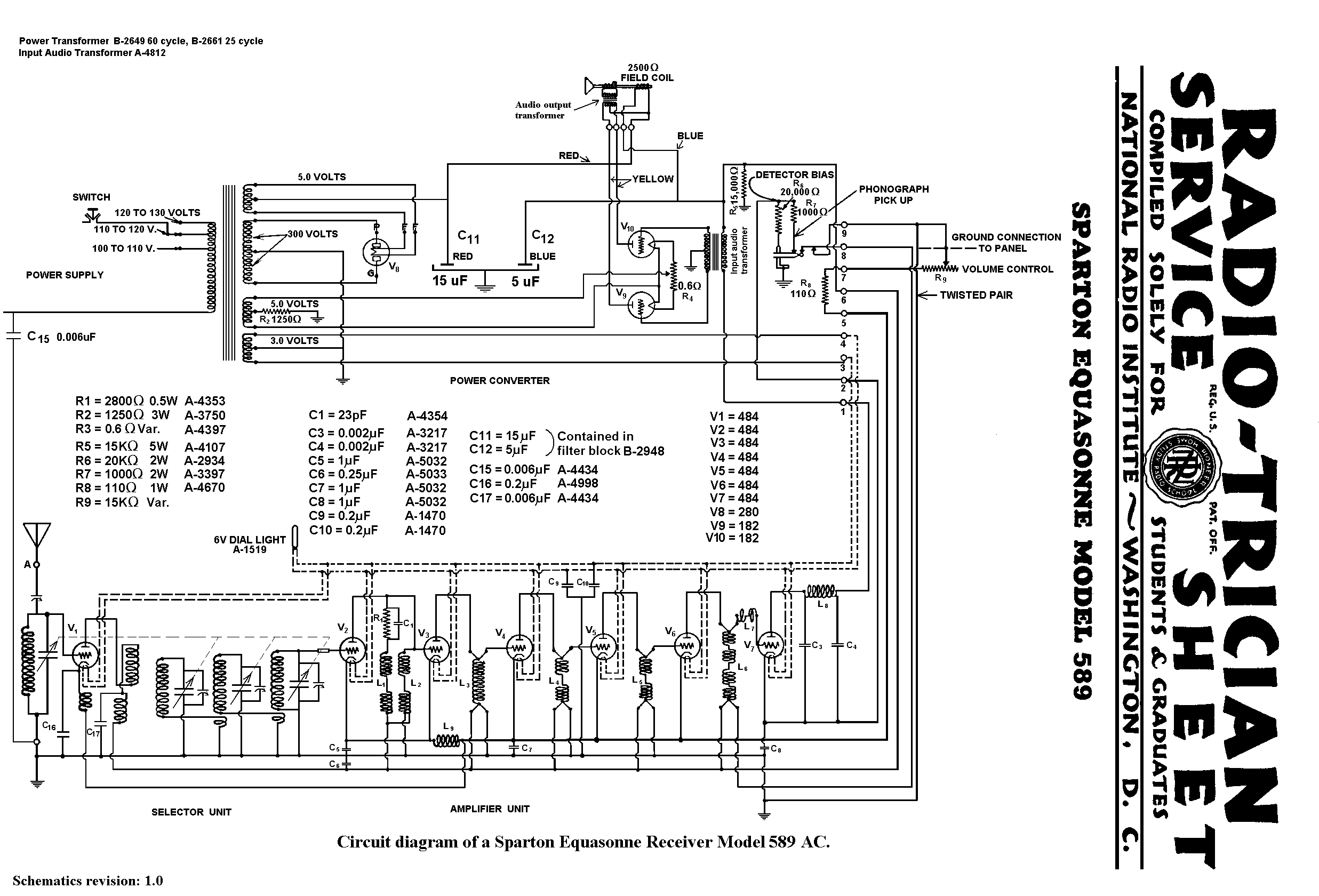

| Download schematics for the 589. Selector RF Amplifier Power converter Speaker Tubes Service Notes |
||||||||||||||
|

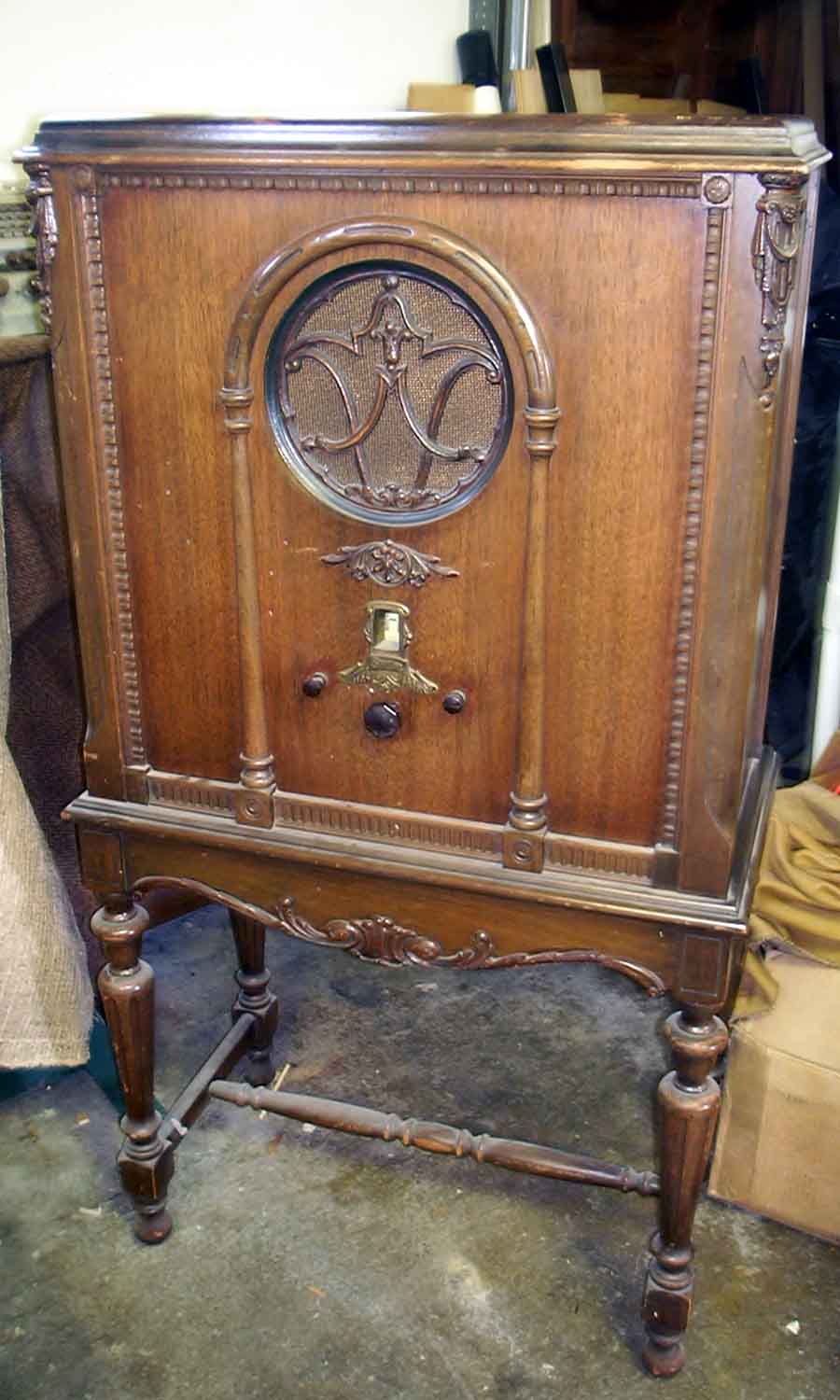

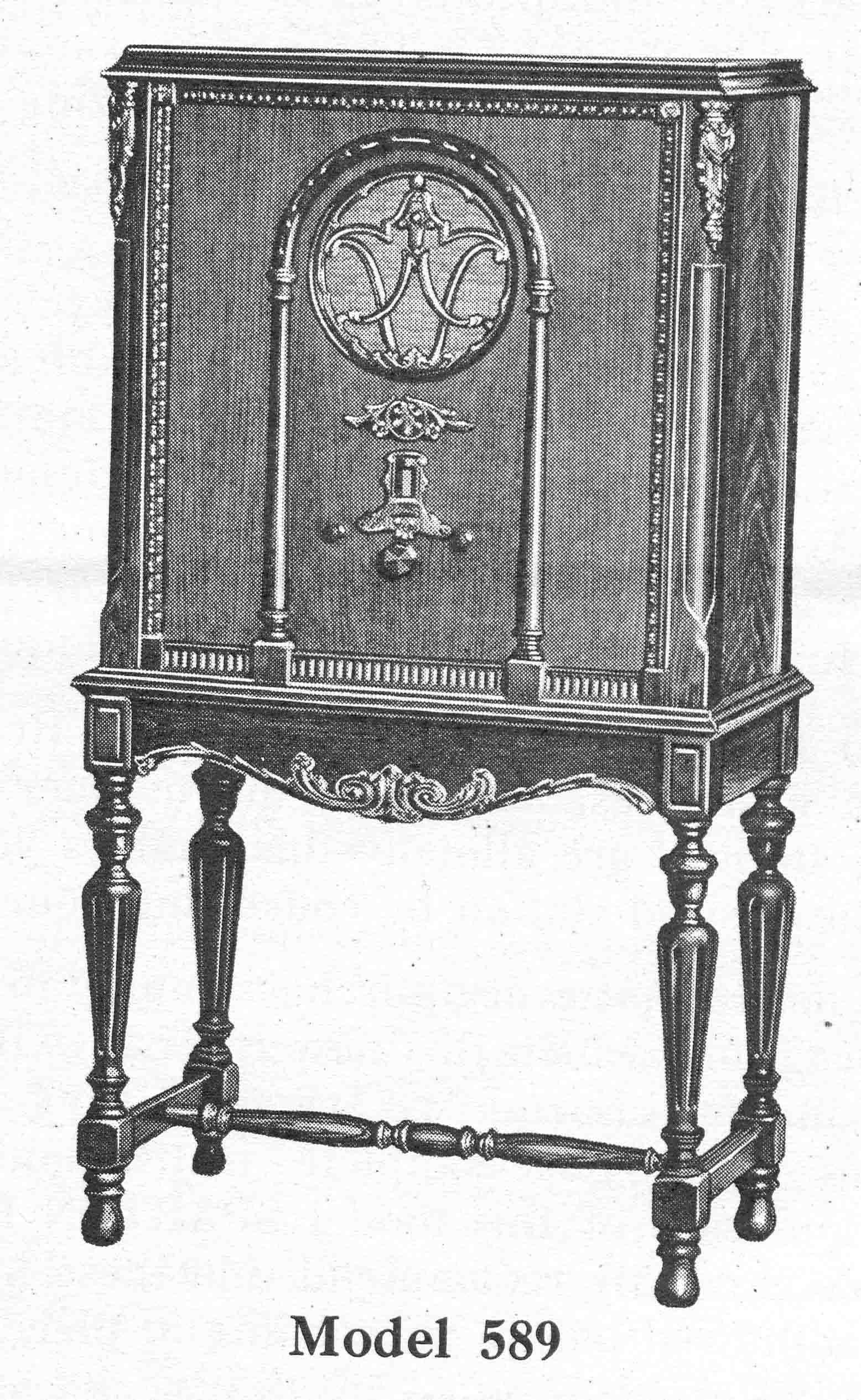

||||||||||||||
| The model 589 (manufactured 19??) came in an AC version only. It uses the same power converter unit as the 591, 593 and 931 AC models, and uses a big 2 section cylindrical electrolytic capacitor in the filter circuit. The 589 is a 10 tube radio. The RF Amplifier unit is the same as that found in most models (ie. 931 type). Electrically, the 589 only differs from the 931 in the fact that it uses a tuning selector unit which houses an additional 484 tube. This particular tuning selector was also used in the majority of the other Equasonne models (103, 235, 301-A, 564, 570, 574, 578, 600, 610, 620, 737, 740, 750 and 870). | ||||||||||||||
|
||||||||||||||
