			Model 301-A Equasonne

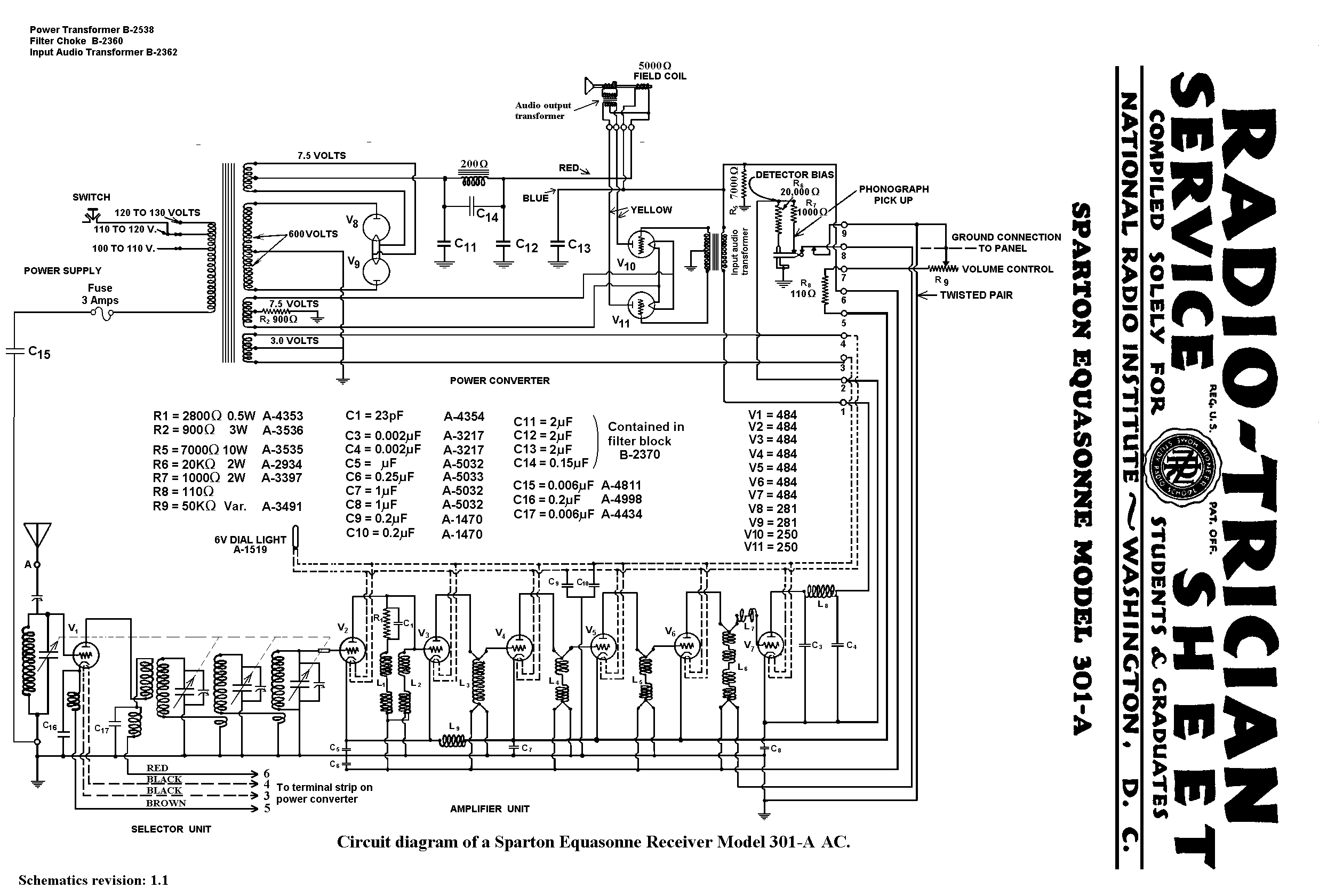

				Download schematics for the 301-A. Selector RF Amplifier Power converter Speaker Tubes Service Notes
No picture available.

		If you have a nice picture of a 301-A Equasonne that I could use, please e-mail me.


	The model 301-A (manufactured 19??) as far as I know, came in an AC AC version only. The Model 301-A is slightly different than the regular 301 in that it used the tuning selector unit with the additional 484/485 tube that is common to most Equasonne models. The 301-A AC model is an 11 tube radio. The RF amplifier unit of the 301 is of the 931 type and is common to virtually all Equasonne models. The power convertor unit of the 301-A AC differs from most Equasonnes in that it utilizes a pair of 281 half wave rectifier tubes as opposed to the more common use of a single full wave rectifier tube. This convertor was also used in models 301, 740 and 750. As usual, the convertor houses the power output tubes, which are a pair of 250s in push pull.
