In case you are wondering, the 111-A is essentially a delux verion of the model 111 which used the selector unit without the additional 484 tube.
|
|
|
|
|
|
|
|
|
|
|
| Model 111-A Equasonne | ||||||||||

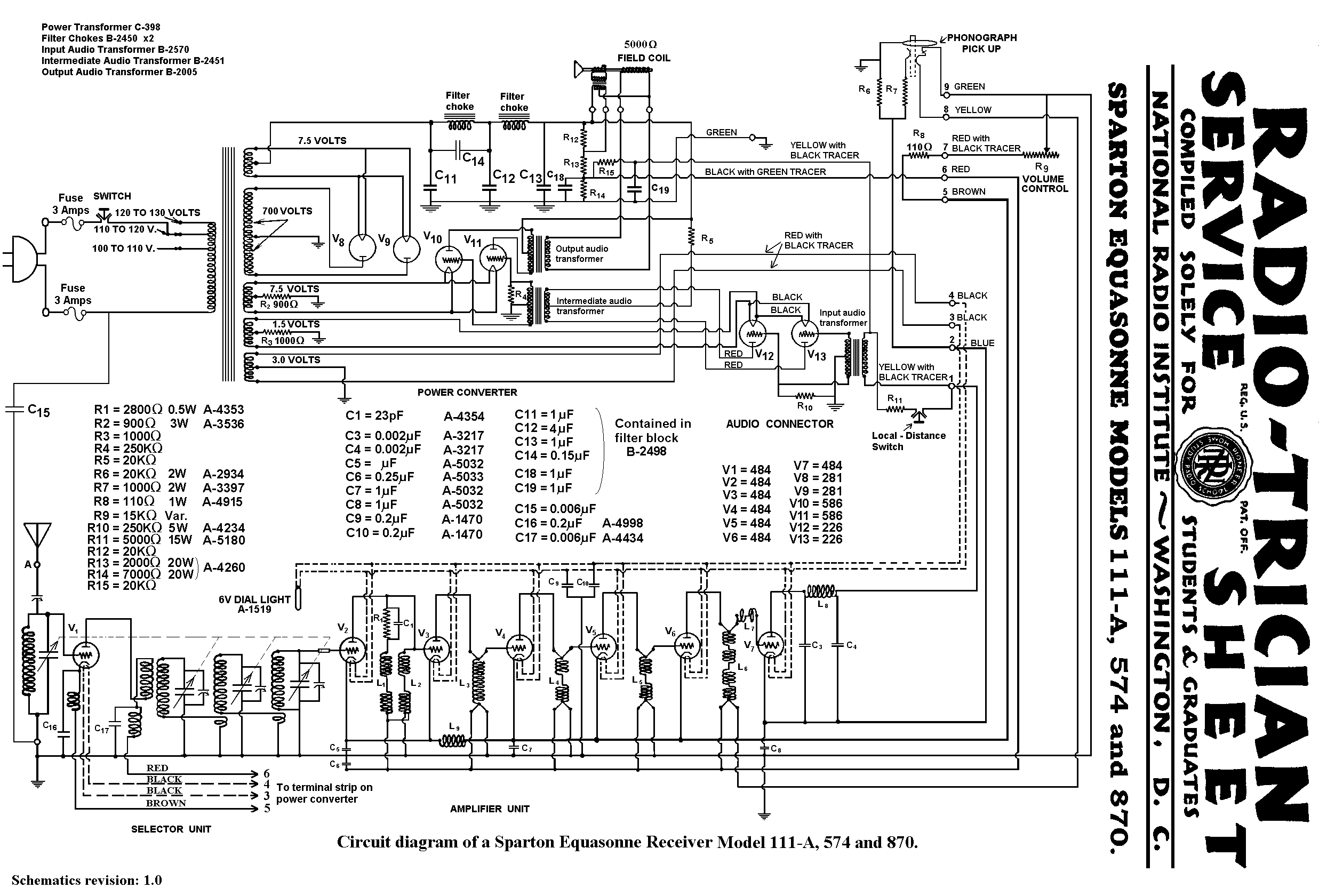

| Download schematics for the 111A. Selector RF Amplifier Power converter Speaker Tubes Service Notes |
||||||||||
| No picture available. | ||||||||||
| If you have a nice picture of a 111-A Equasonne that I could use, please e-mail me. | ||||||||||
| The model 111-A (manufactured 19??) apparantly came in an AC version only. It uses the same chassis as Models 574 and 870. The 111-A is a 13 tube radio. The RF Amplifier unit is the same as that found in most models (ie. 931 type). The tuning selector unit is of the type which houses an additional 484 tube. This particular tuning selector was also used in the majority of the other Equasonne models (103, 235, 301-A, 564, 570, 574, 578, 600, 610, 620, 737, 740, 750 and 870). Models 111-A, 574 and 870 differ from most other equasonne models in the use of an additional audio connector unit which houses an input audio transformer and a pair of 226 tubes. This unit provides an extra stage of audio frequency amplification. In case you are wondering, the 111-A is essentially a delux verion of the model 111 which used the selector unit without the additional 484 tube. |
||||||||||
