| Model 109 Deluxe Equasonne | ||||||||||
|
||||||||||

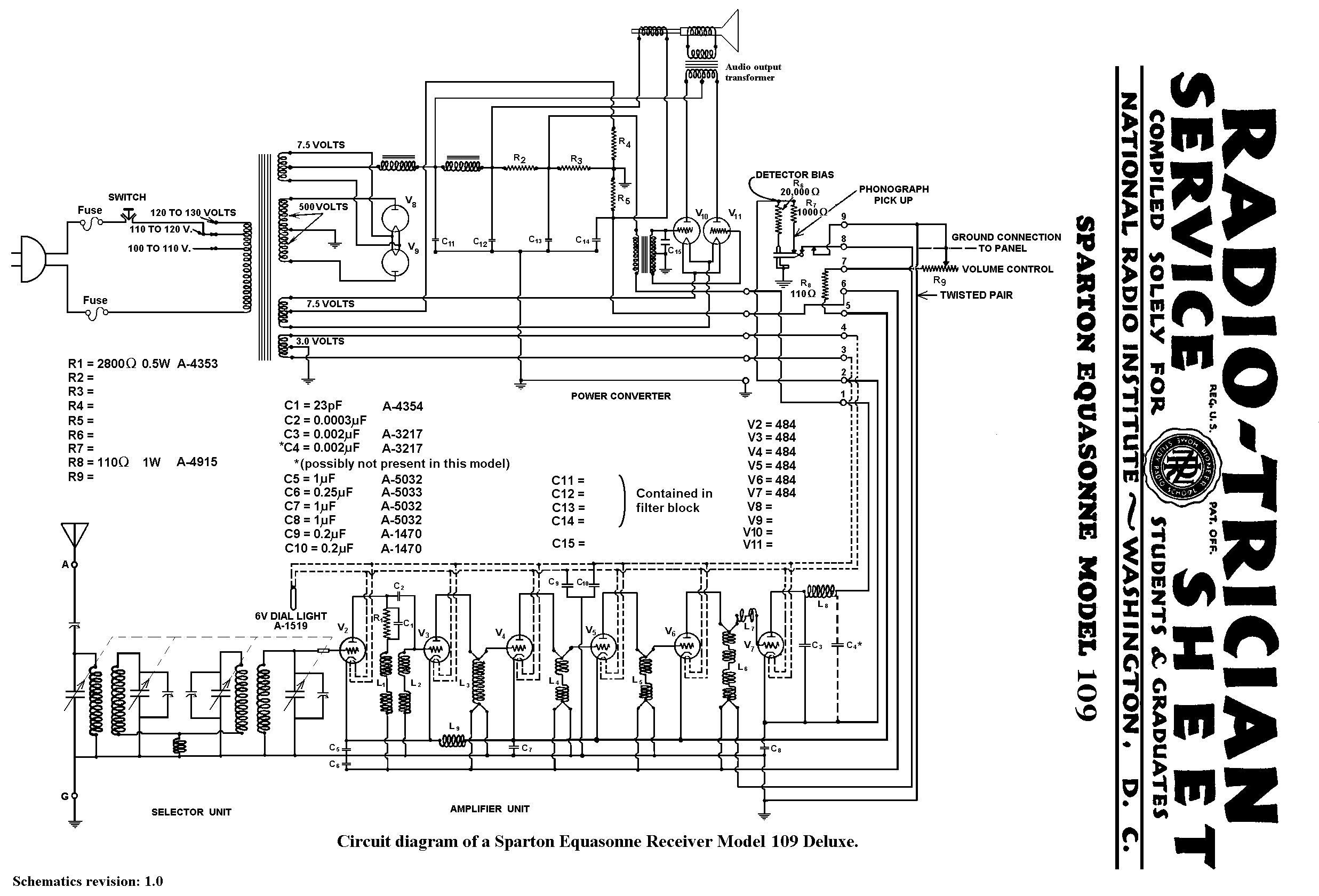

| Download schematics for the 109 Deluxe. Selector RF Amplifier Power converter Speaker Tubes Service Notes |
||||||||||
| If you have a nice picture of a 109 Deluxe Equasonne that I could use, please e-mail me. | ||||||||||
| The model 109 Deluxe (manufactured 192?) apparantly came in an AC version only. It's power converter unit seems to be unique to this Model only. This model was a 10 tube radio. The RF Amplifier unit is the same as that found in the 930, which differs very slightly from the 931 type, common to most models. The tuning selector unit is also of the 930 type. | ||||||||||
