880828-111a

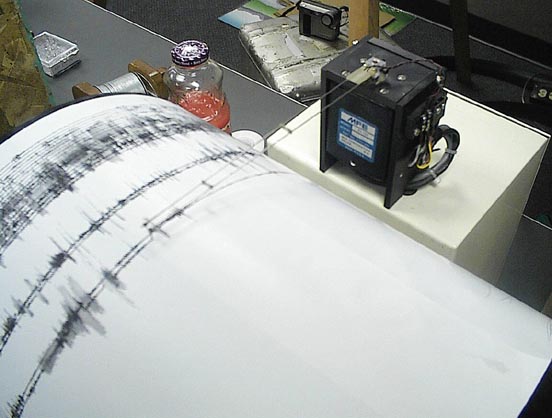

Some Albequeque lab display items. This is another
make a quake display.
880828-113a

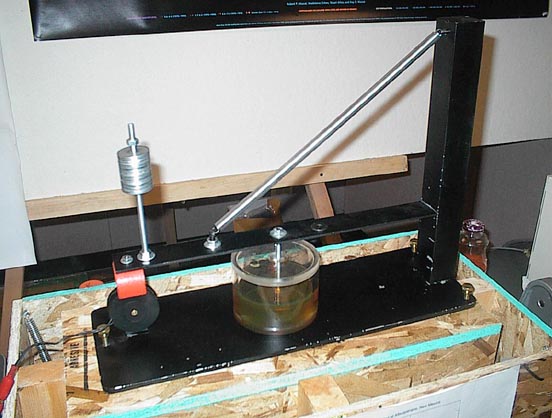

Ahhhh.......a homebrew like demo one second vertical
seismo. Super simple design. The spring is actually a typical
screen door spring. Oil damping dashpot. The boom is a "U"
shaped piece of metal that is fitted (and filed) into a "V" groove on the
mast. Only problem is the the mass has the magnet on the boom....but
its only for display. Coil/induction pickup sensor.
880828-114a

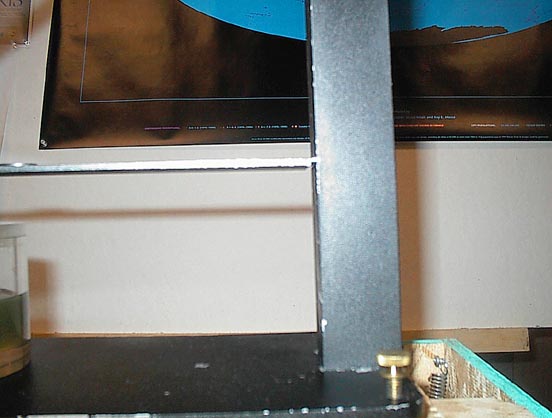

Trying to get an image of the pivot of the boom, mast,
but it didn't come out. The pivot area on the mast is machined into
a "V" slot, with the boom end being filed down to a point.
880828-116a

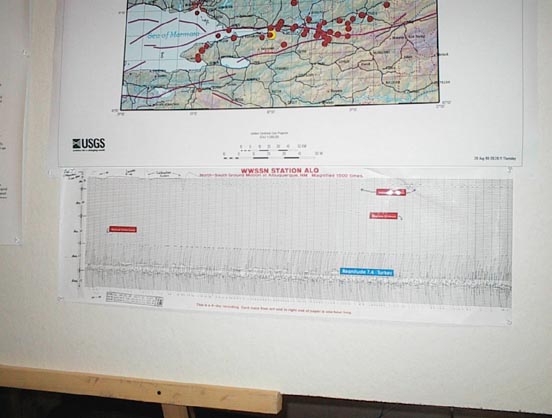

The Turkey quake seismogram. Clipping or maximum
pen movement is shown.
880828-117a

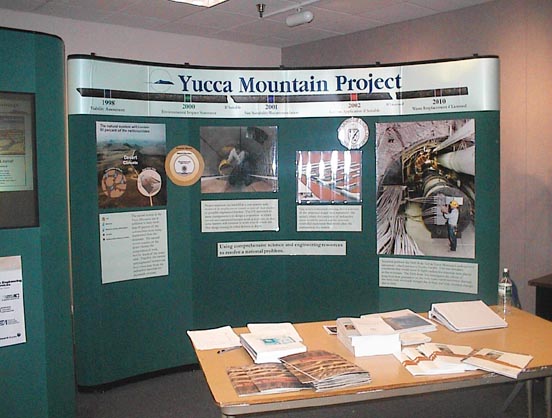

Yucca Mountain and its nuclear waste deposal safety
issues.
880828-118a

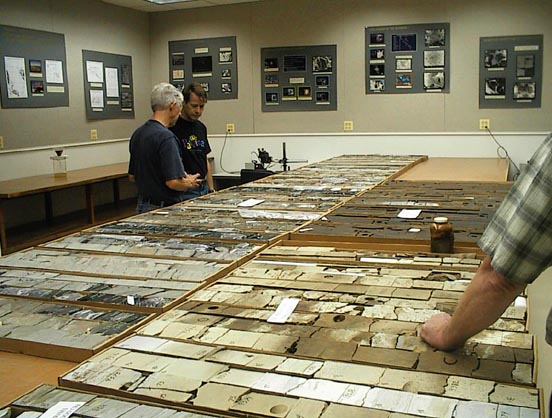

Rock samples spread out in an exam area. Alot
of the warehouse has these containers in storage.
