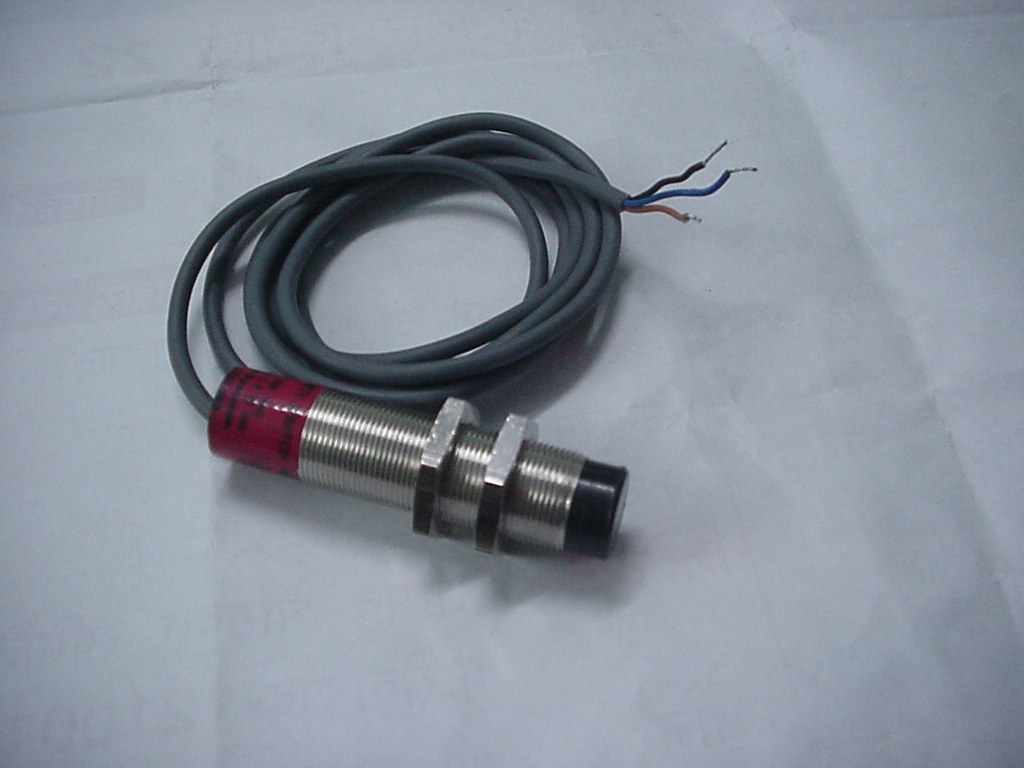

Introducing Inductive Proximity Sensors, In size of Round threaded type and Rectengular shapes suitable to various shapes and specifications required by costomers promot Non tuch type mantanance free system with recoginition of quality and manufactured to the cator of the requirement of latest concept in Switching Technology.

INDUCTIVE PROXIMITY SENSORS

IPS suitable for ferrous/ nonferrous/ all metal objects in different shaps & sizes. Special purpose switching for detection of displacements, high precision measurments and anlogue outputs.Switches for special enviromant like high temperature (upto 1500C) chamical/ strong magnetic field / welding spatter/ cutting or drilling chips. responce frequency upto 10 kHz. output PNP/NPN /DC (NO/NC).

SPECIFICATIONS-

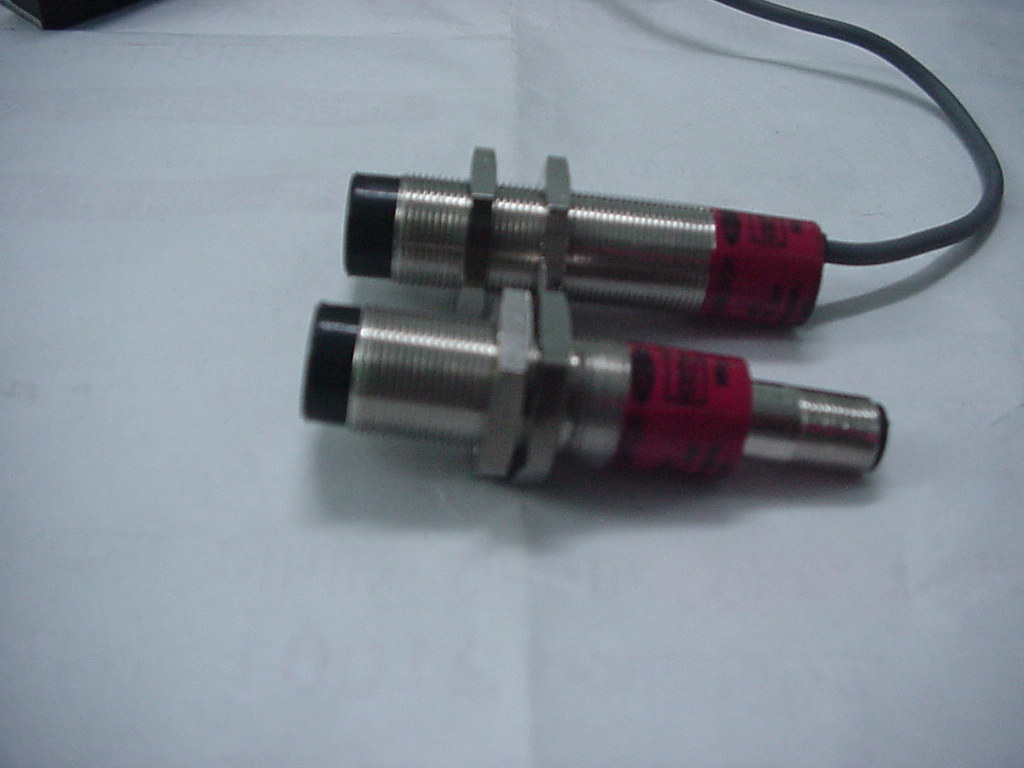

Size- M12,M18, Connector Type

Sen.Distance- 2 to 10mm

Voltage Range- 8-40v DC

Circuit- PNP/NPN (NO/NC)

Load Current- 100to 300mA

Also Available:-

Wide range of Rectanguler Proximity sensor also available. Inductive Proximity sensor generated high frequency alternating field at the active face, when any metal object is brought into this field then output is recive on black wire.

Caution:-

1. For flush type pcs, mount the fush of coil with machine. 2. Non flush type pcs required an empty space around the sensing coil equal to the dia. of proximity.

Note :-

# PNP & NPN type Proximity switches are available in all size.

# Rectangular Proximity sensors are available for wide range of application.

# Sensing distance maintained as per costumor requirement.

.
