| Base Construction |
| I constructed the base, mid, and top decks of this coil out of 3/4'" plywood and used 1/2" schedule-80 pvc pipe with end caps to act as supports between decks. 2-1/2" casters were mounted on the base platform so the entire coil could be moved around easily. |
 |

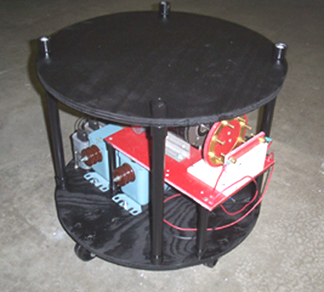

| Two 15KV/30ma NST's are mounted on the base, notice there is room for one more! It would be added later.. |
 |
 |

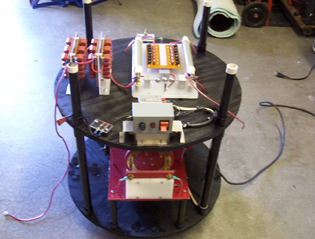

| Here is the mid-deck with MMC, NST filters, power switch, and relay componets added. |
