Voxy Lady Amp
Built from an old AX84.com schematic in late 2005.

I especially like the send-return jacks.  I use this amp often with a Johnson J-Station Amp Simulator fed into the pre-amp inverter tube.

It is a CL AB circuit with about -10V to -15V of Bias voltage controlled using an adjustable pot.

This amp is super clean sounding as built.  Probably would benefit from some tweaks to the voltages at the pre-amp tube.

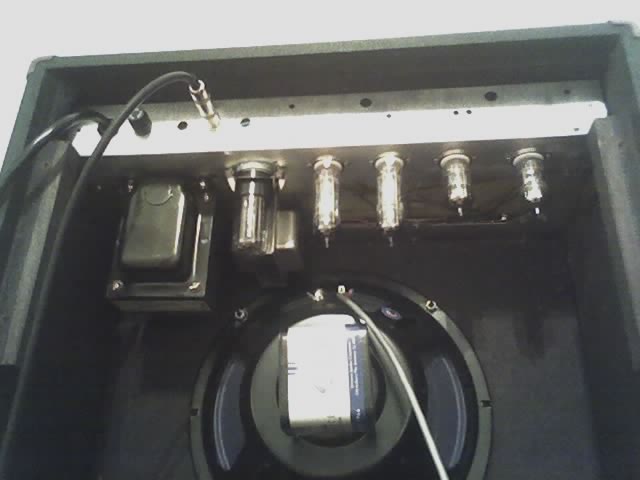

Blackface clean The "Gut Shot"

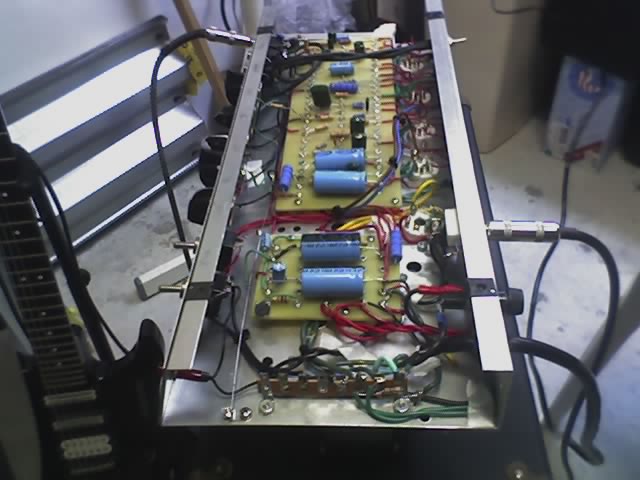

An 18W Push-Pull Amp with a 300-0-300PT and a 5Y3GT Tube Rectifier There was no layout.  I've separated the Power and Signal sections of the board.
The short 1 is my 1st P1Xetreme
The taller amp is the Voxy.  It's built into a 2x10" vertical cabinet from an old Hohner SS amp.  There's 1 Eminence Alnico & a Jensen Ceramic in here.

Iron= Hammond 300-0-300 and a 22W Deluxe OT from Antique Electronics.  Seems to be plenty of iron for a solid low end.

Chassis was reclaimed from the original amp.  Tolex and grill were replaced.
