Neuro's Fet Upgrade Diagram

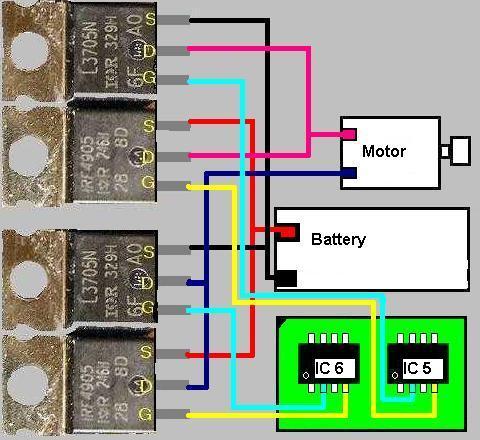

Need I say more? One upgrade that has possibilities for almost every RC to have more power. Most ESC Fets have a small limit and cost lots of money but for a fraction of the cost you can make your own. This upgrade replaces both IC5 and IC6 on the bottom of the Main PCB. I took the liberty of rediagraming the circuit so it could be read easily. Also I have colored each connection different so you can trace it back to it's original starting point. The optional DIRECT power hookup is also drawn out (which I would reccomend) because you can burn the traces on the Main PCB, esspecialy if you are wiring more
.than the recommended power source.
(03-03-04) In this updated diagram only 4 wires are need to the Main PCB. This circuit is also able to handle any motor you wish to put on it although the RS PCB may not handle it, which is why you should hook up the circuit directly to the battery source.
