FINISHING TOUCHES... Nearing completion... or 90% ready, 90% to go... |
|
|
|
VIIMEISTELYHOMMIA... L�hestyy valmista... tai 90% tehty, 90% j�ljell�... |
|
|
|
 |
|
|
|

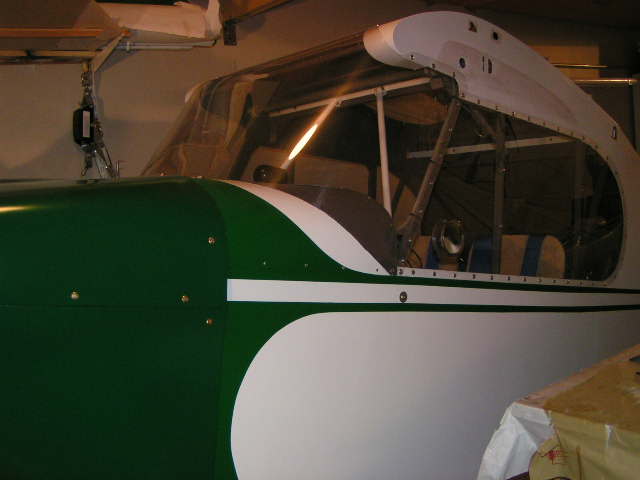

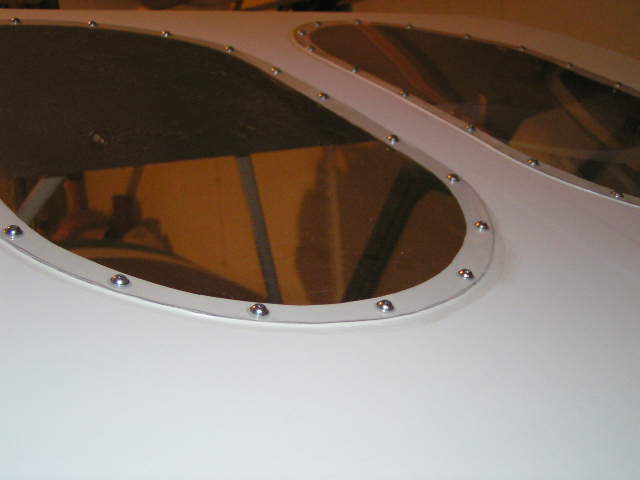

Sky light... windows installed with glue and bolts. |
|
|
|
|
|
Kattoikkunat asennettuna liimalla ja pulteilla. |
|
|
|
|
|
 |
|
|
|

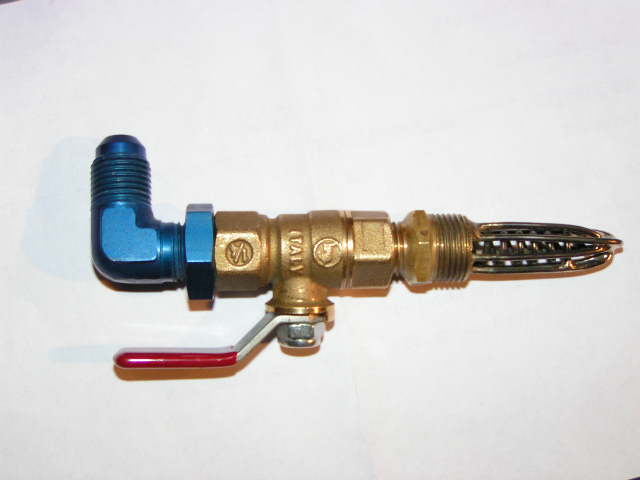

Finger stainer and valve for adding to fuel tank. |
|
|
|
|
|
Sormisuodatin ja hana mik� tulee tankin l�ht��n. |
|
|
|
|
|
 |
|
 |
|
|
|
|
 |
|
|
|
|
|
|
|
|

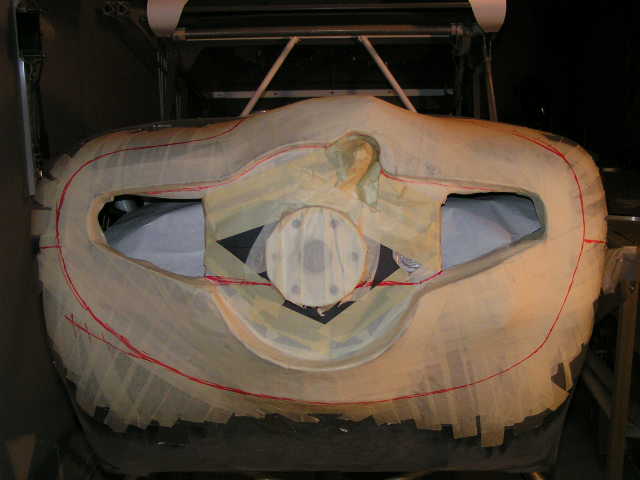

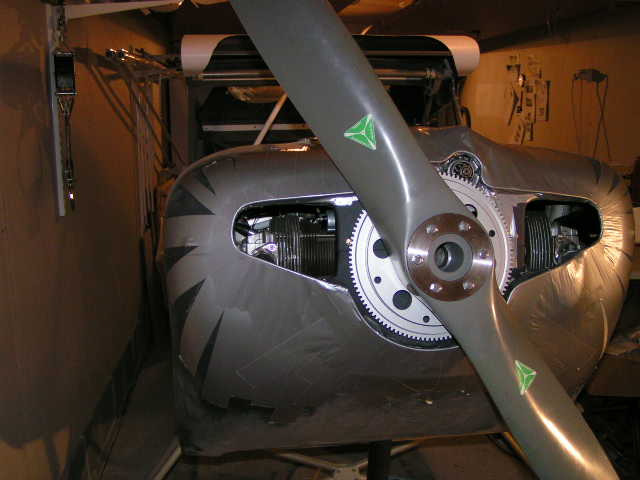

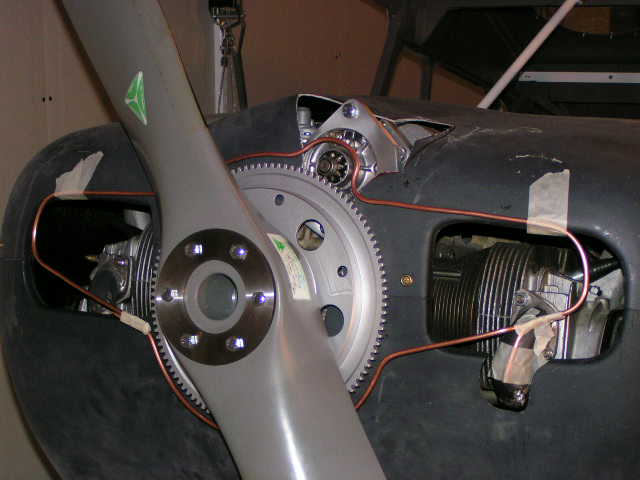

After installing starter I made some plug to make new nosepiece for cowling. I used soft copper brake pipe to form outline for nose opening. Then used some tape to form plug. It looks funny but works quite well... |
|
|
|
Startin lis�yksen j�lkeen tein pehme�st� jarruputkesta nokkapalan kehyksen. Teipill� muotoilin nokan muodon. T�m� n�ytt�� ehk� oudolta, mutta toimii yll�tt�v�n hyvin plugina... |
|
|
|
 |
|
 |
|
|
|
|
 |
|
|
|
|
|
|
|
|

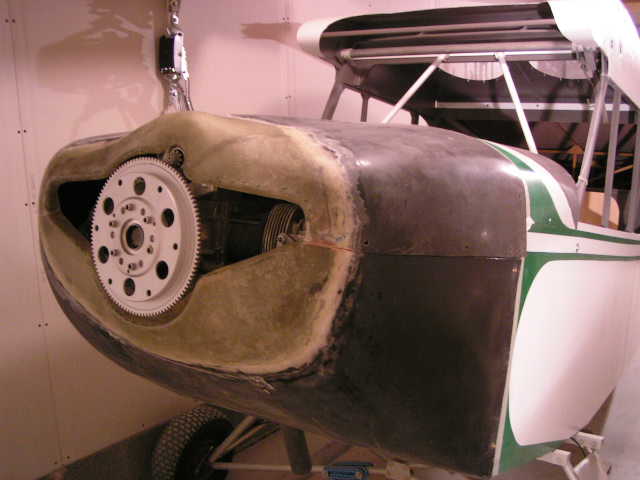

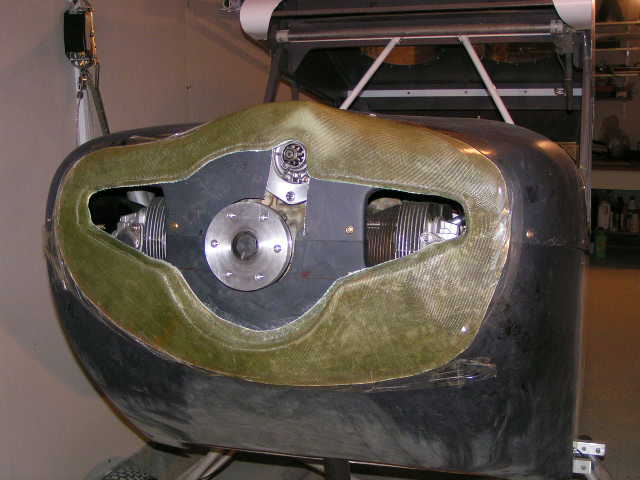

After laminating actual piece over plug, it is removed and trimmed over old nose. Glued using balloon and seam finised with light balloon and glassfiber. After splitting halves, cooling baffles are under construction... |
|
|
|
Lopullinen nokkapala laminoitiin plugin p��lle ja irrotuksen j�lkeen se liimattiin ja viimeisteltiin vanhan nokan tilalle. Mikropallokitti� ja ohutta lasikuitukangasta tuli k�ytetty� sauman viimeistelyss�. J��hdytyspellitkin ovat ty�n alla... |
|
|
|
 |
|
|
|
 |
|
 |
|
|
|
|
|
|
|
|

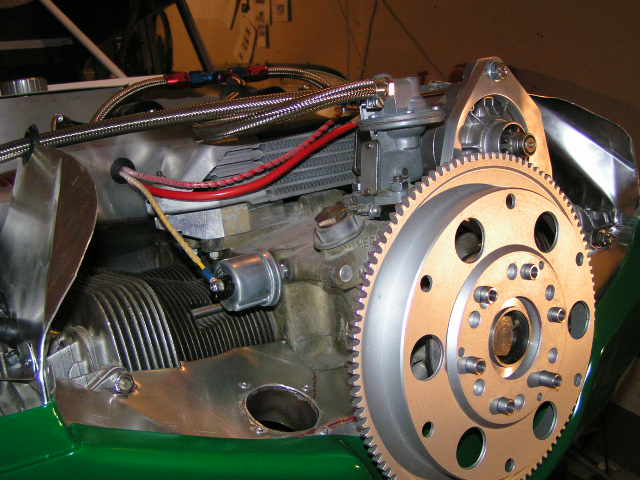

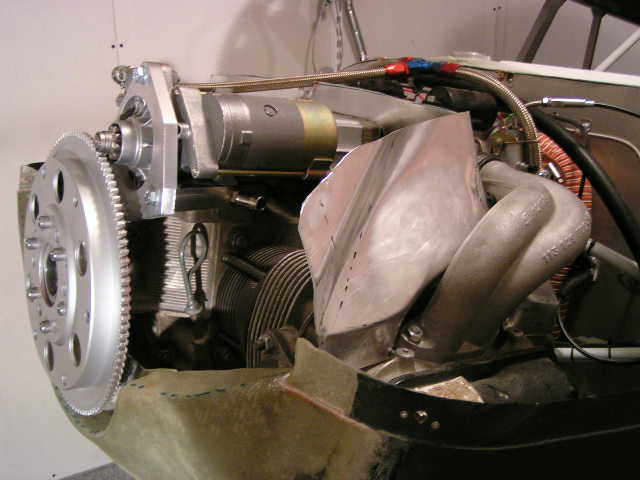

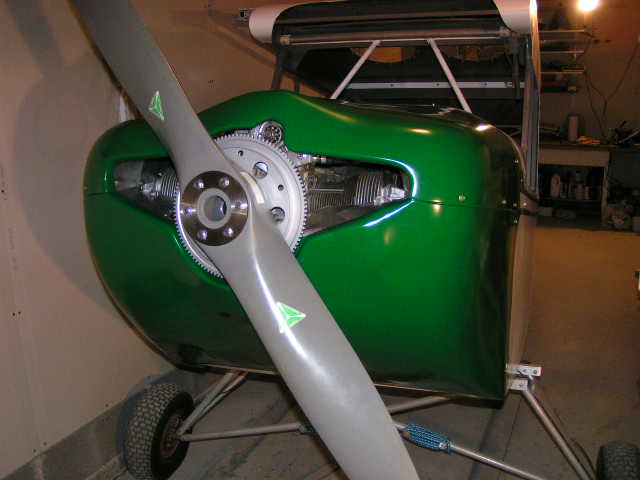

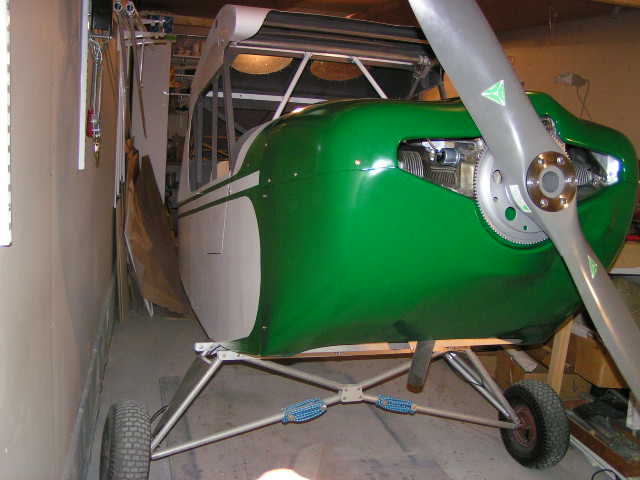

Cooling baffles still under construction. Allmoust ready engine cover, this starts to look like an aeroplane... |
|
|
|
J��hdytyspellit ovat viel� hieman ty�n alla. Moottoripeite on l�hes valmis, alkaa n�ytt�� lentokoneelta... |
|
|
|
 |
|
|
 |
|
|
|
 |
|
|
|
|
|
|
|

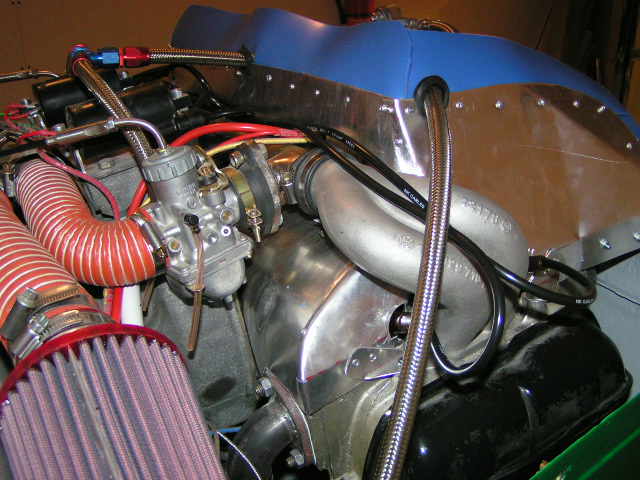

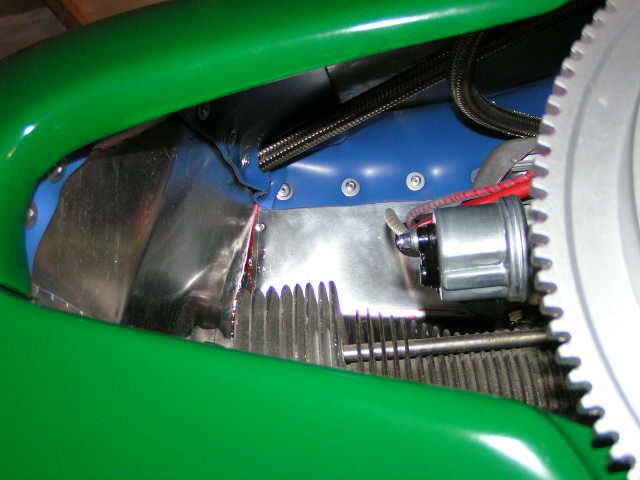

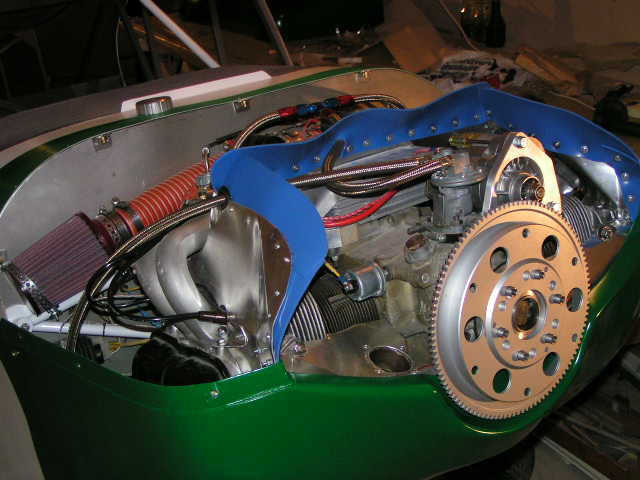

Cooling baffles and sealing silicon band ready... I hope this works... we will see ;) |
|
|
|
J��hdytyspellit valmiina. Sininen silikoninauha toimii tiivisteen� koulingin ja peltien v�liss�, toivottavasti toimii... |
|
|
|
 |
|
 |
|
|
|

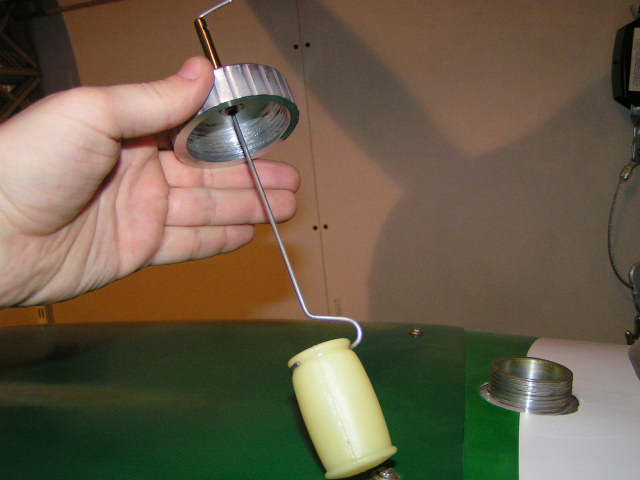

Windows and fuel meter are made and assembled... |
|
|
|
|
|
|
|
Ikkunat ja polttoainemittari tehtyn� ja asennettuna... |
|
|
|
|
|
|
|
PICTURES OF ASSEMBLED PLANE |
|
|
|
|
|
|
|
KUVIA KASATUSTA KONEESTA |
|
|
|
|
|
