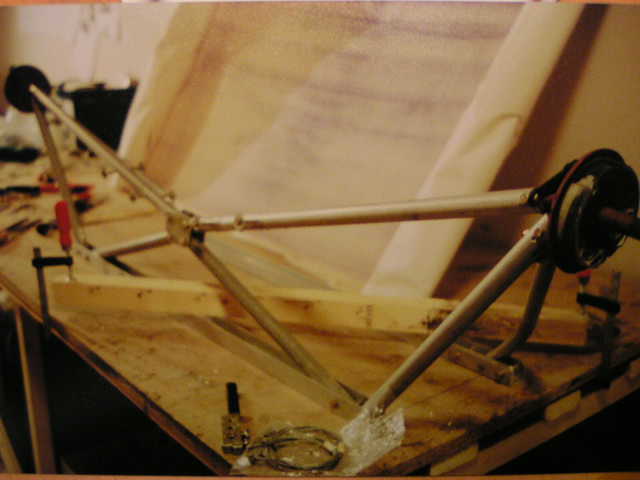

Landing gear is made upside down over table. This is really simple thing to do, altought some accurate measurements and holes must be made. I have made mechanical brakes that are not in original plans. |
|
|
|
|
|
Laskuteline on yksinkertainen sandumeilla jousitettu teline. T�m� on my�s yksinkertainen rakentaa, tosin tarkkaa mittaamista ja poraamista vaativa operaatio. Koneeseeni tulee mekaaniset jarrut. Alkuper�isiss� piirrustuksissa ei ole jarruja. |
|
|
|
|
|
I've got some information from couple of places that this oririginal landing gear is not strong enought. Some cases this S-Koala original undergarriage has colapsed and it is not so pretty sight. So I maight make totally new or reinforce this one. |
|
|
|
Parista paikasta olen saanut tietooni tapauksia miss� t�m� alkuper�inen laskuteline on pett�nyt alta. Joten tarttee vahvistaa t�t� tai sitten tehd� kokonaan uusi... |
|
|
|
 |
|
|
|

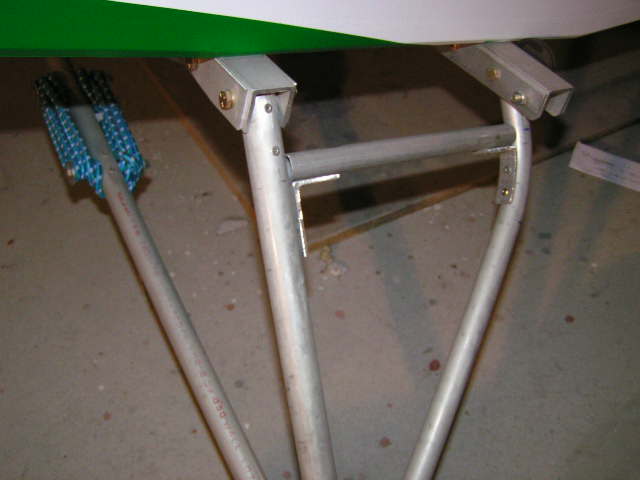

OK, now I have made doublers inside legs and this cross pipe on top. Aluminum plate will also be riveted over this landing gear triagle... This should be strong enought. |
|
|
|
|
|
No nyt on sitten laitettu tuplausputket n�iden sis��n ja poikkiputki yl�reunaan. Lis�ksi niitataan alumiinilevyt t�m�n laskutelinekolmion molemmin puolin... pit�isi ruveta kest�m��n. |
|
|
|
|
|
 |
|
|
|

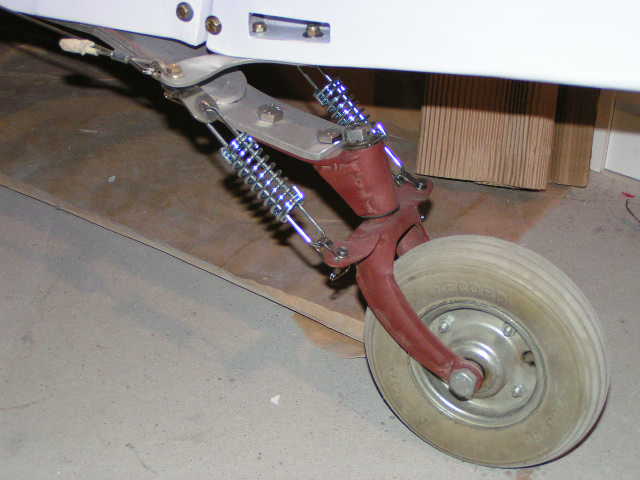

Tailwheel and its springs |
|
|
|
|
|
Kannuspy�r� ja sen jouset |
|
|
|
