Driveshaft Loop

     Picture I went by

The Picture I went by
  I Started with 1.5" wide stainless steel strips .188 thick. Had a machinist I work with roll 2 loops with 5" diameters. I then drilled holes in them for mounting. Then I fabricated 2 long bent strips. I then drilled holes to mount the 2 loops.


The driveshaft loop is to be placed 6 inches from the universal joint according to NHRA Rules.


Looks like the picture to me and I know they are very strong.


Ford Fairmont Enthusiast
Windsor Fox Performance
Fletchers Carburated 5.0

updated 09/06/01

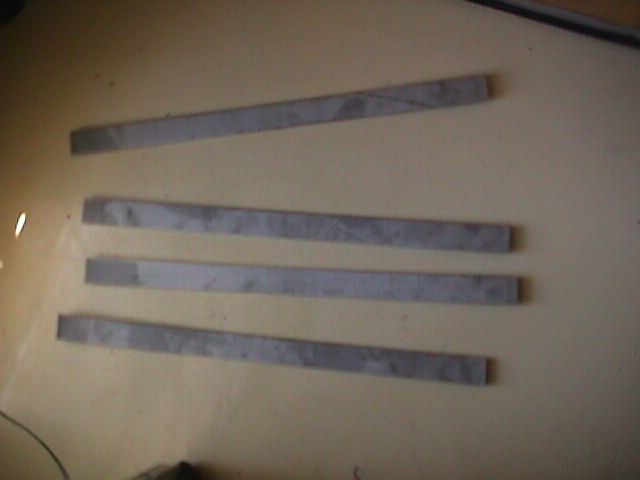

Four Strips of Steel

4 Strips of Steel

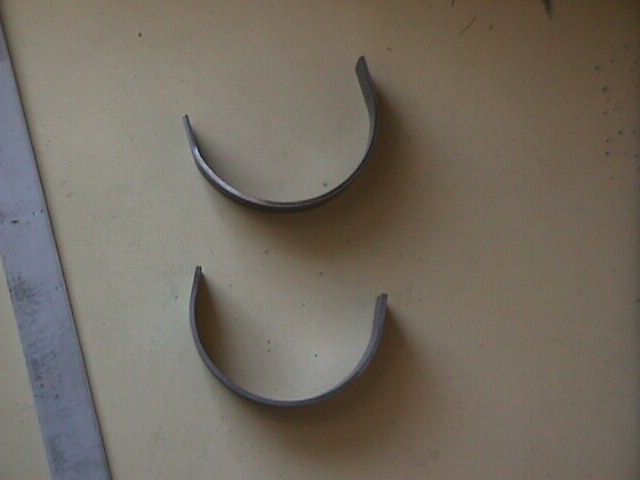

Rolled Peices

2 Loops Rolled from Strips

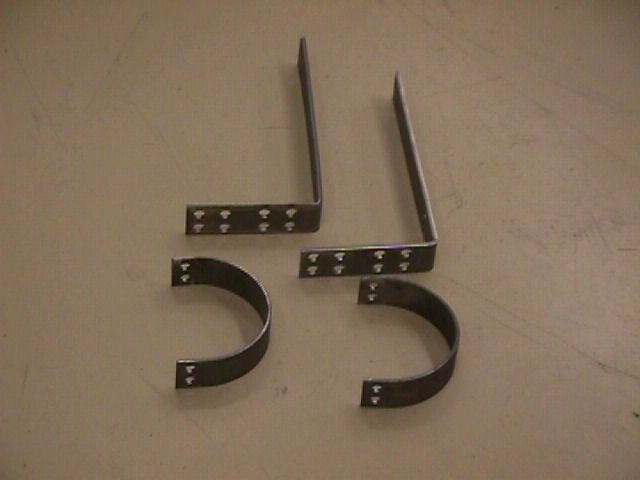

Finished Driveloop
