HPGL to RSGL converter/previewer

This package consists of two Gtk-Perl scripts. drawHPGL will display an HPGL file and convert it to RSGL. drawRSGL will display an RSGL file. The source package also contains several example HPGL files (.PLT extension) and RSGL files (.PLX extension). The RSGL files were converted using this package and are directly suitable for plotting on an FP-215. This software is based on software from http://www.yty.net/h/hpgl/.

drawHPGL Features:

• HPGL file selected with normal fileselecting screen.
• Scaling of picture 1-100 % to fit FP-215 plot area.
• Display window corresponds to FP-215 max plotting area.
• Optional RSGL output.

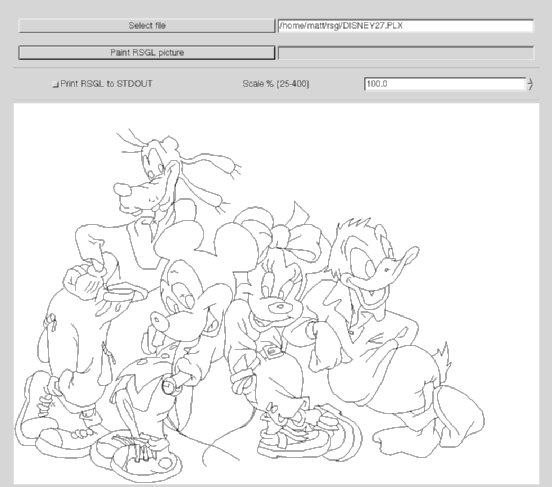

drawRSGL Features:

• RSGL file selected with normal fileselecting screen.
• Scaling of picture 25-400 % to fit FP-215 plot area.
• Display window corresponds to FP-215 max plotting area.
• Optional RSGL output.

Download source.

Take a look to sourcecode: converter and previewer

[email protected]

Released under GPL. Copyright Henry Palonen, 2000, Matt Boytim, 2001
