Bell-Saucer shaped luminaires

Drawings exposed below may help designing this kind of luminaires starting from outside shape and dimensions.

Lampholder must be movable up and down, or 15 degree right and left, because a high Cutoff level is required.

More pieces details will be later available.

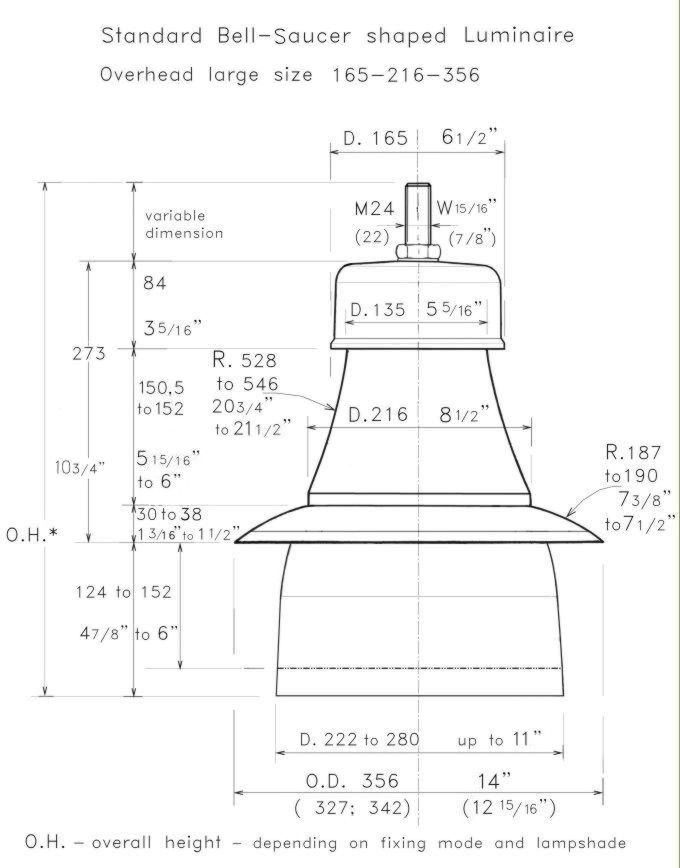

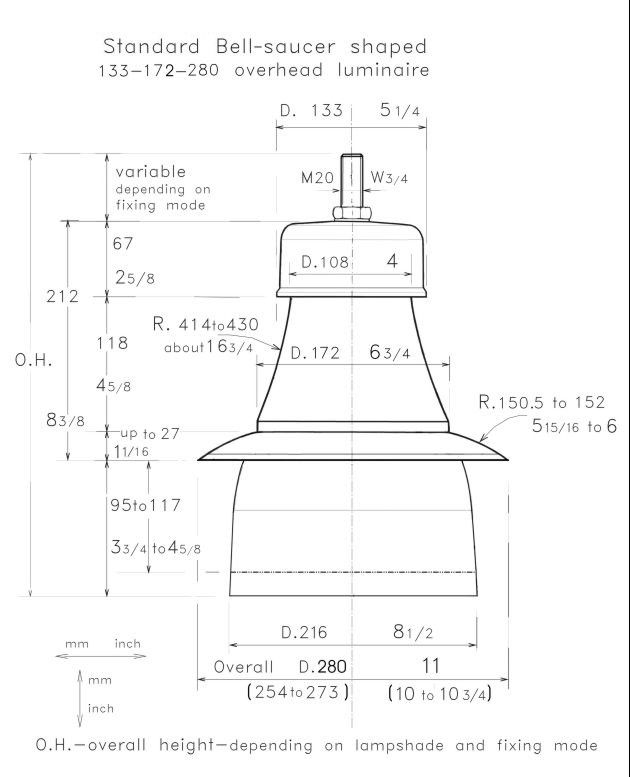

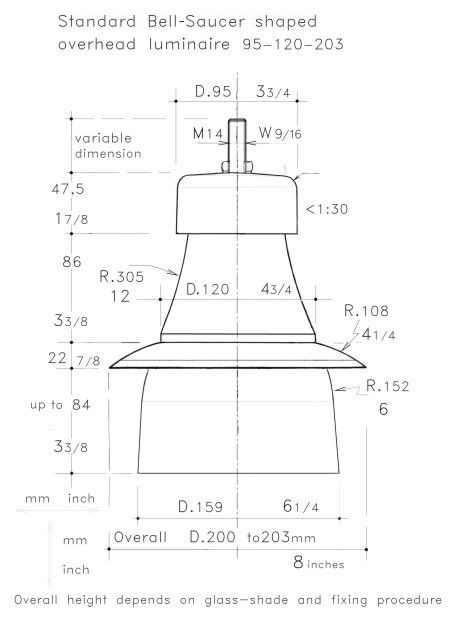

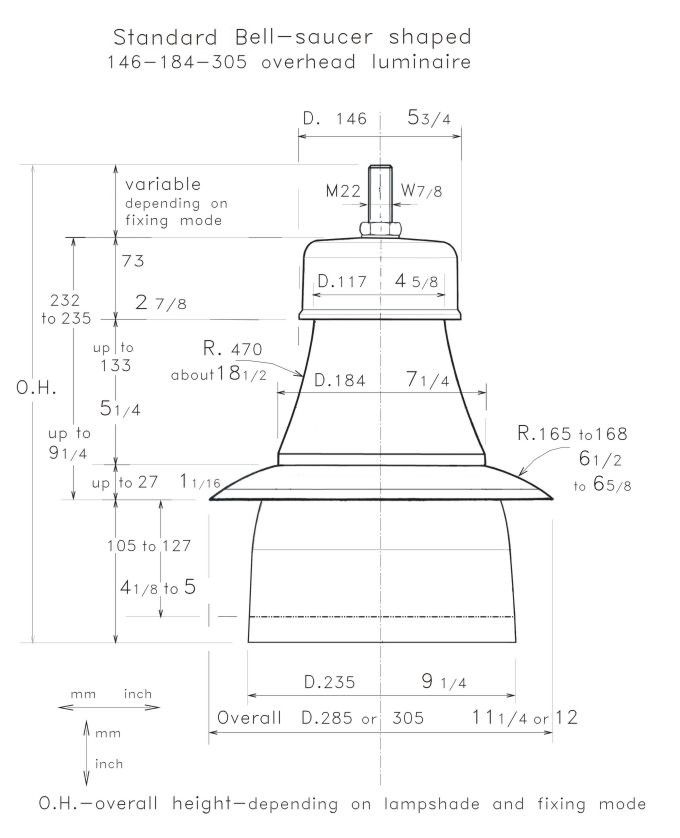

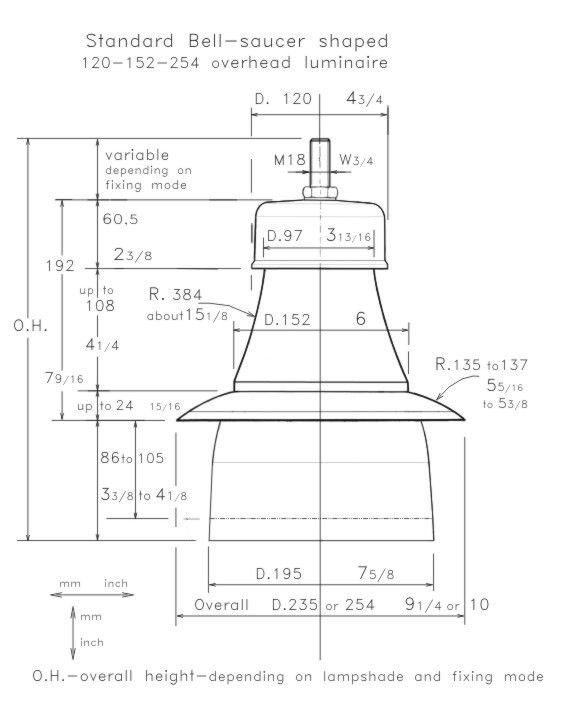

Standard "Bell-Saucer" shaped luminaires :

Suitable bulbs or lamps are the usual HID for the large and medium size of luminaires and the compact or subcompact fluorescent, or even incandescent for the small and reduced sizes.

Lamps (bulbs) must be only for unclosed fixtures and having "base-up" or universal burning position.

Other kinds of "Bell-Saucer" shapes :

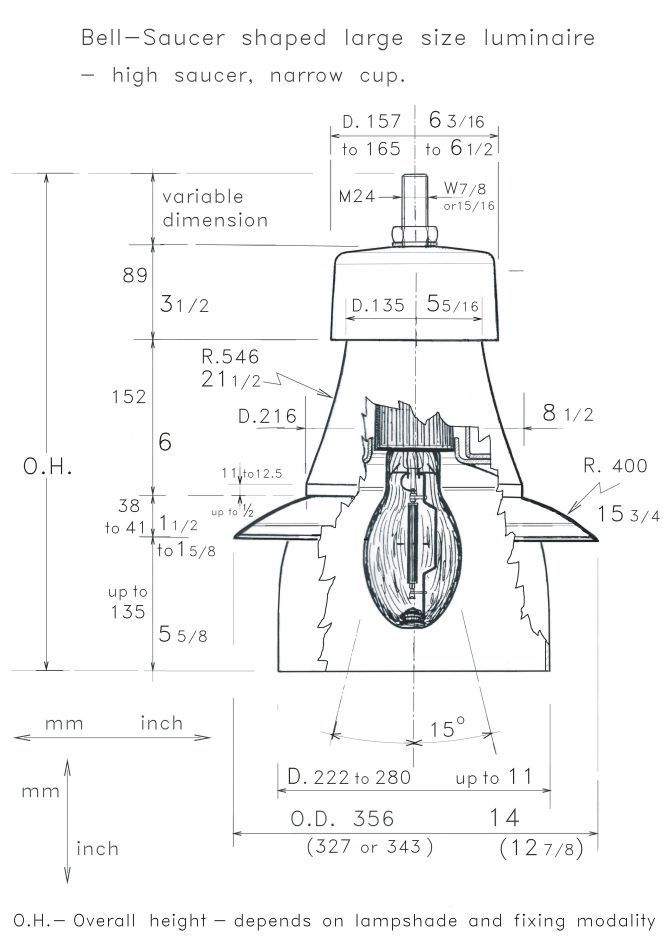

High Saucer, small Cup, Bell-Saucer shaped large size luminaire

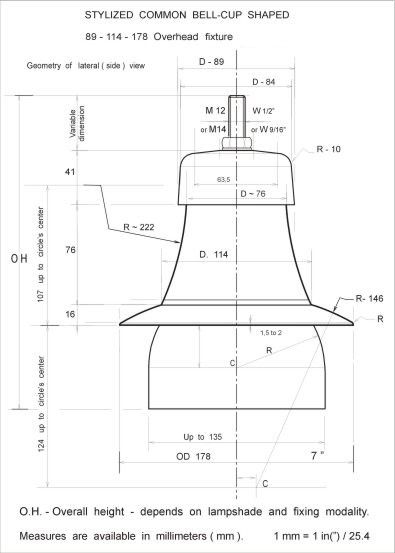

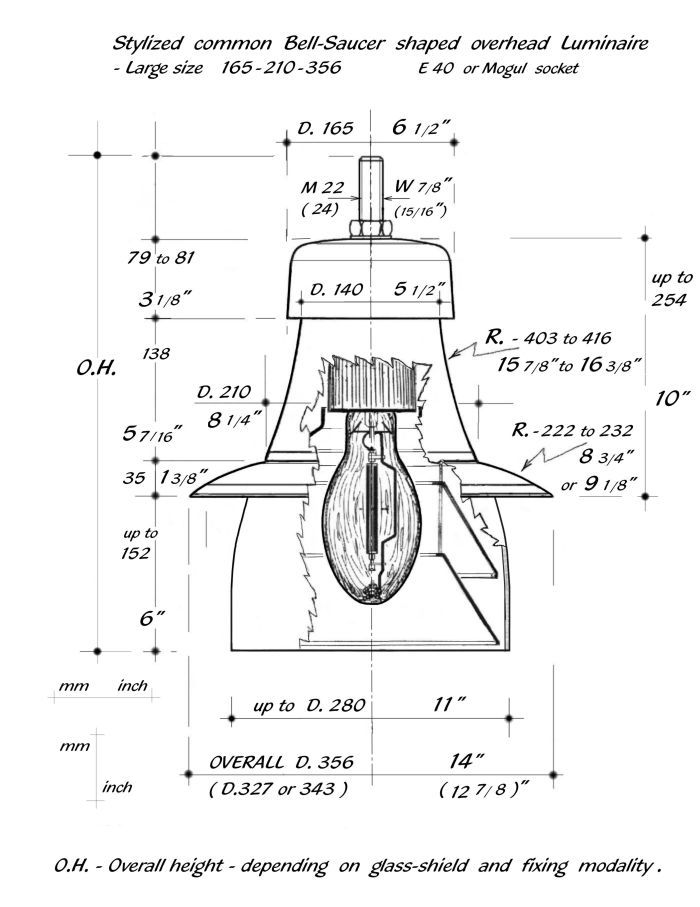

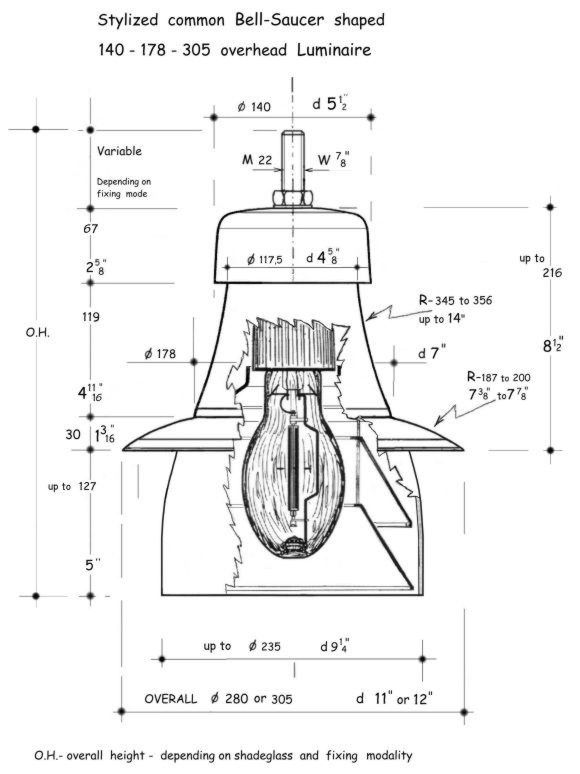

Stylized common Bell-Saucer shaped luminaires

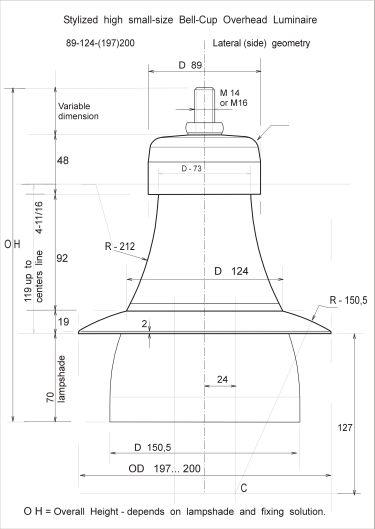

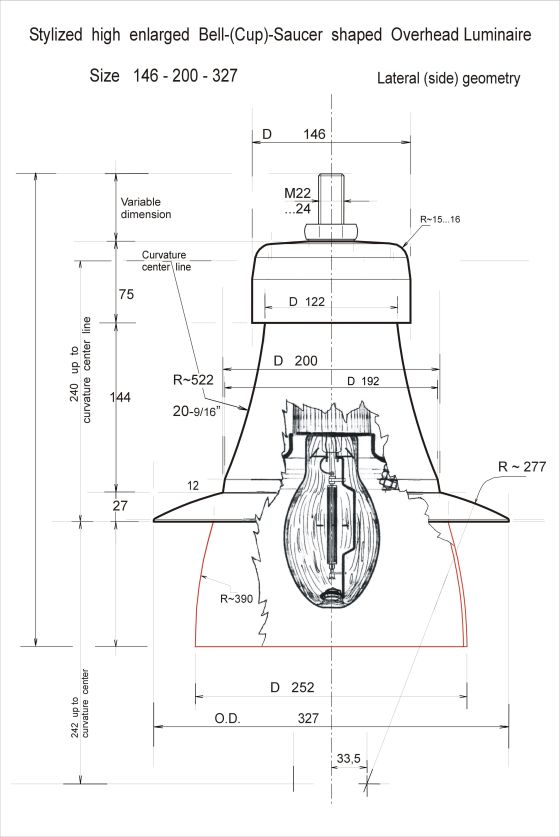

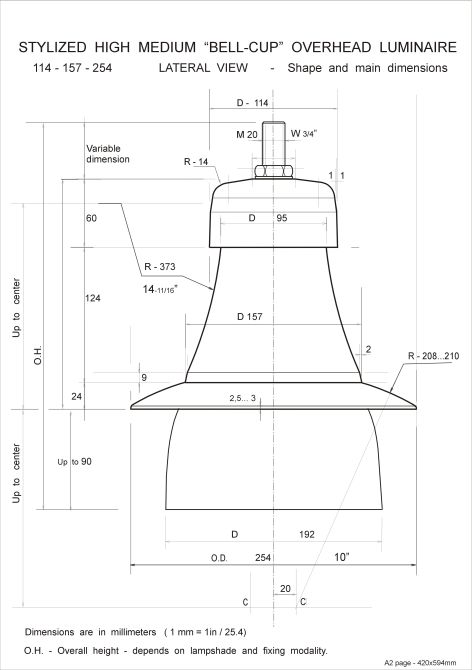

Stylized high Bell-Saucer shaped luminaires

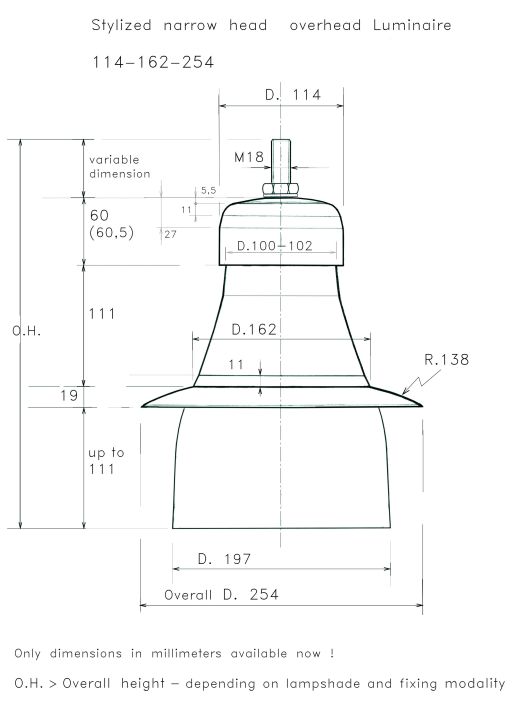

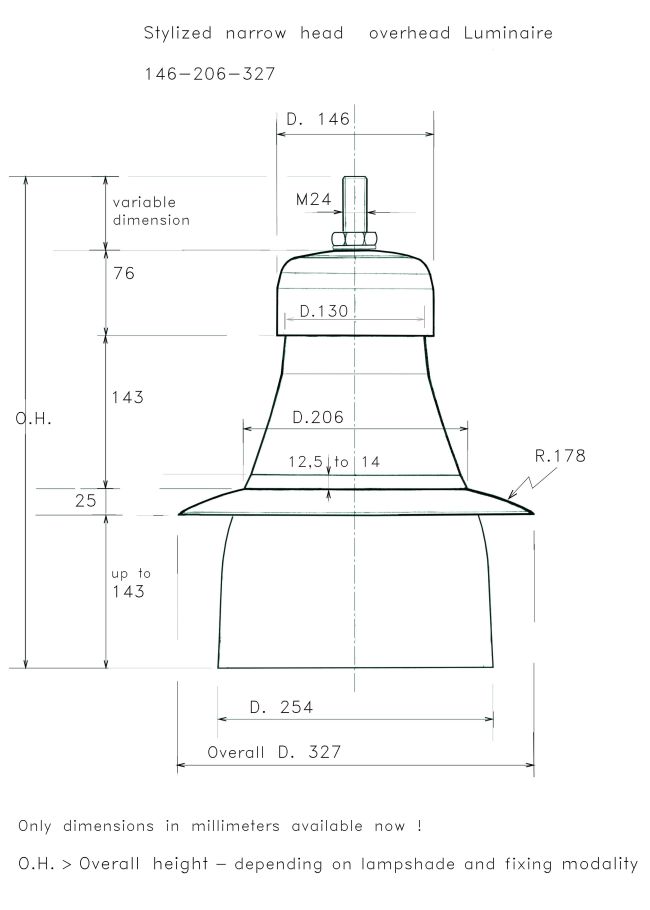

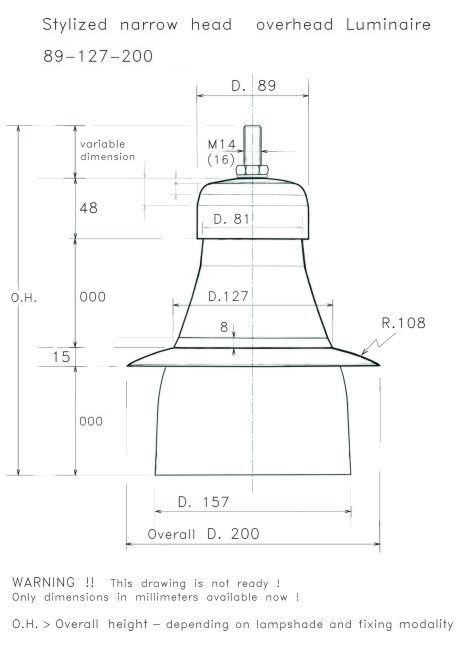

Stylized narrow Bell-Saucer shaped luminaires

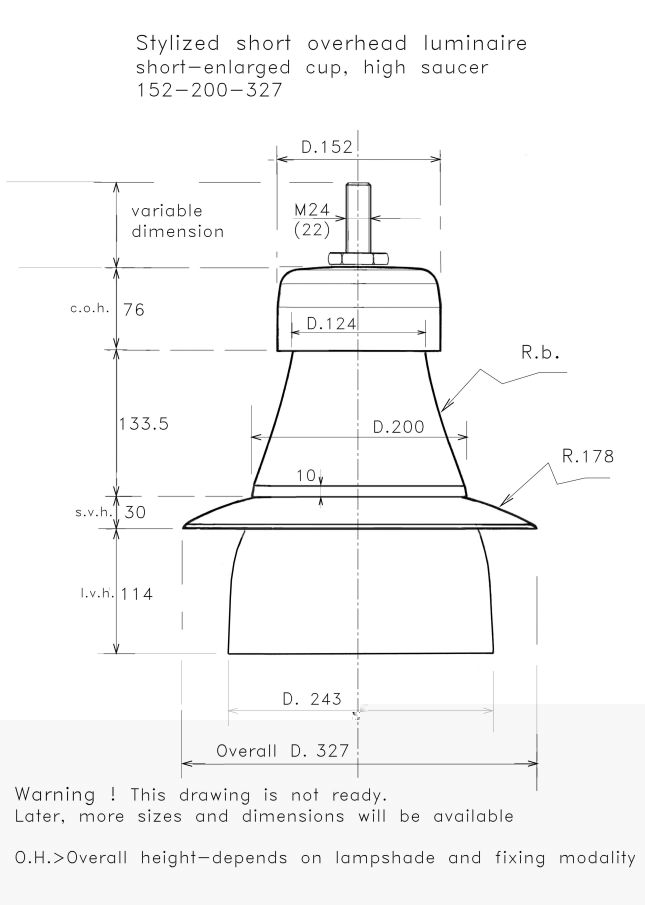

Stylized flat Bell-Saucer shaped luminaire
