Low voltage lighting fixtures

WARNING !

This kind of fixtures may use any kinds of low voltage bulbs or lamps.

In case of using automotive bulbs, or any other kind of bulbs or lamps that use a mase pole contact, it shall be designed a new kind of lampholder with all the contact poles isolated (isolamented) from the fixture's mase (body parts).

The use of fixtures' or lamposts' body as electrical conductor is forbiden.

The lampost and the low voltage fixture must be, only, connected to the grounding electrodes network.

1 . Bell-Saucer shaped overhead low-voltage.

Only low voltage "bell-saucer" overhead is available now !

The drawings may help designing this kind of fixtures starting from outside shape and dimensions.

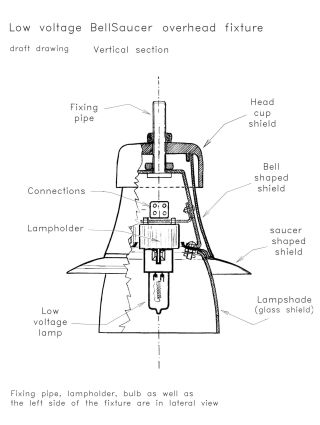

Assembly section

More details for each piece will be available in details.

Standard "Bell-Saucer" shaped low-voltage fixtures :

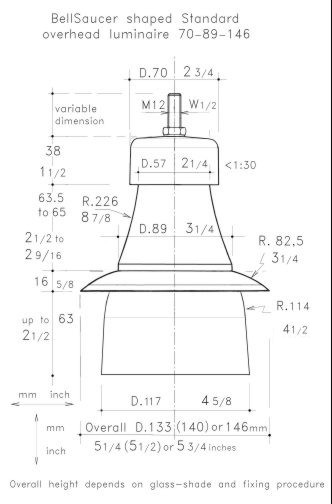

Standard Bell-saucer shaped overhead fixture for low-voltage use. These fixtures are designed as "unclosed". There may be overhead hanged, or on a short side arm pole fixed.

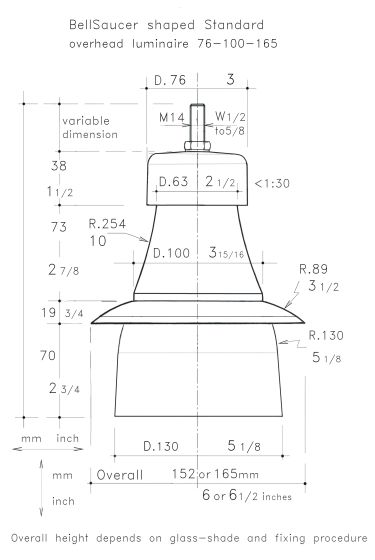

Standard enlarged "Bell-Saucer" low-voltage overhead lighting fixture, for high power (head-lights, projection...) lamps housing. The most suitable mounting height is 3 to 3,80 meters or 10 to 12.5 feet. All kind of high power low-voltage bulbs, lamps or LED-s adaptable to "base-up" burning position (and to unclosed fixtures class) are suitable.

Top

Stylized "Bell-Saucer" shaped low-voltage fixtures :

Stylized common "Bell-Saucer" shaped low-voltage overhead fixtures. This fixtures are designed as "unclosed".
Stylized short "Bell-Saucer" shaped low-voltage overhead fixtures. The most suitable mounting height is 3 to 3,80 meters or 10 to 12.5 feet.

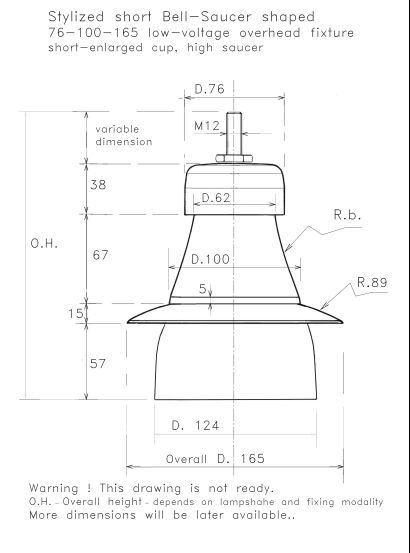

Stylized short enlarged "Bell-Saucer" low-voltage overhead lighting fixtures. Suitable for high power (head-lighting, projection...) low-voltage bulbs. All kind of high power low voltage bulbs, lamps or LED-s adaptable to "base-up" burning position (and to unclosed fixtures class) are suitable.

Top

2 . Side arm low-voltage lanterns

This kind of fixtures are not available in details.
