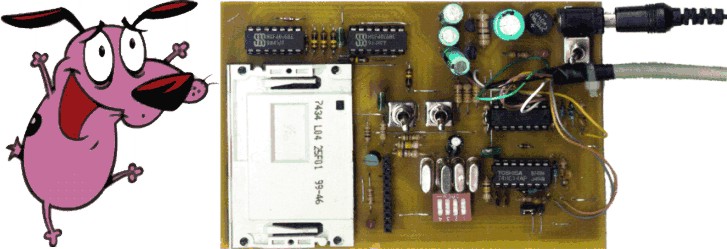

LudiPhoenix II

Smartmouse/Phoenix Programmer with 4 quartzes.
Programs pic and funcards.
With a small additional circuit you can also
program the eeproms type 24xx, 25xx, 93xx
and many types of PIC in DIL socket.
(Instructions in Italian)

I hope I’ll be able to supply the instructions in other languages.

I’ll be thankful if somebody would send me file in other languages and the corrections to the English version.

=============================================================

Use:

- IcProg to program CHIP in DIL socket with Add-on.

- Cardwriter (ver1.87) to program the Funcard and the Piccard.

- Cardwriter (ver2.01) version. Add on Funcard, external eeprom up to 24C512 and ATMEGA161+24C64 and ATMEGA163+24C256. Select None in Select Device and set: Ludi/Pic Mode=2, Atmel Mode=1, Mouse Mode 6 Mhz=0, Mouse Mode 3,5 Mhz=5 in the menu of configuration for use the same way of use described in the file of instruction to use.

Cardwriter Works fine with the LUDIPHOENIX programmer, click here to download instruction to use.
