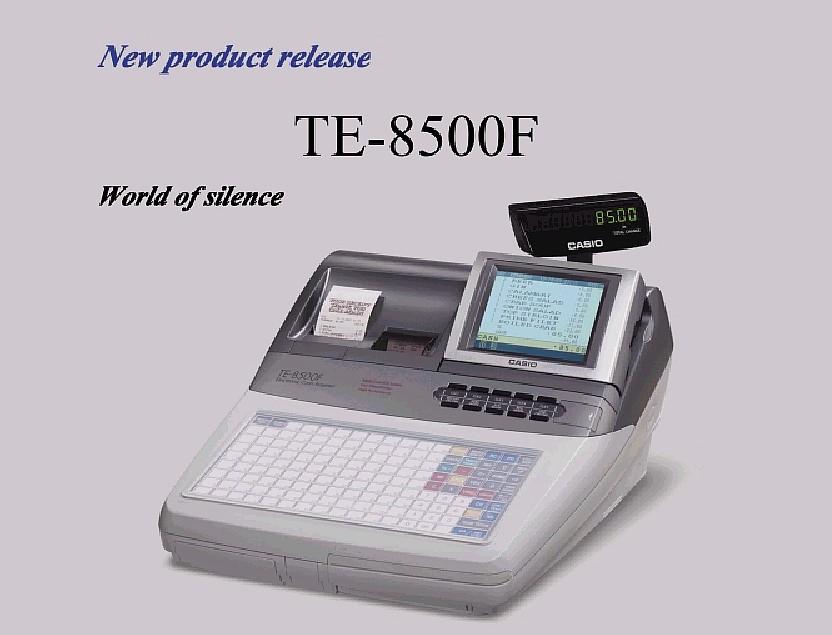

TE-8500F
with Color Display and Flat Keyboard
|
Display Operator display/heading
Multi-Line Color LCD screen with contrast control knob.
Color assignment can be customized with your choice.
Customized operator screen images
TE-8500F
with Color Display and Flat Keyboard
|
Technical Specs |
|
|
|
||
Operator display unit can be adjusted to fit your best readable angle.
Pop up customer display with 10 digits numeric LED.
Optional customer display with 2 lines x 20 alpha numeric display.
Fast silent Printer
58mm thermal receipt and journal printer with fast printing lines.
Auto cutter for receipt printer.
Drop-in paper loading mechanism for easy handling of paper roll.
Graphic logo and Watermark logo offers rich image to your customers.
Multipurpose keys are located on the keyboard with pre-assigned functions as shown below. These keys are possible to customize of its functionality as well as slide-in template to identify each function.
CF (Compact Flash card) interface is equipped as standard for data back up and restore.
4 x RS232e ports for the PC direct communication, modem, bar code scanner, external printers, slip printer and remote customer display.
Com1 with 115kbps high-speed communication.
Com2 and Com3 with +5v power supply.
Built-in Arcnet inline provide register-to-register communication with up to 32 terminals maximum.
Quick and accurate table control function for such as restaurant from single terminal use to multiple terminals and external printers as well as basic bar code reading function to assist quick
registration and more.
Note: specifications and design are subject to change without notice.
