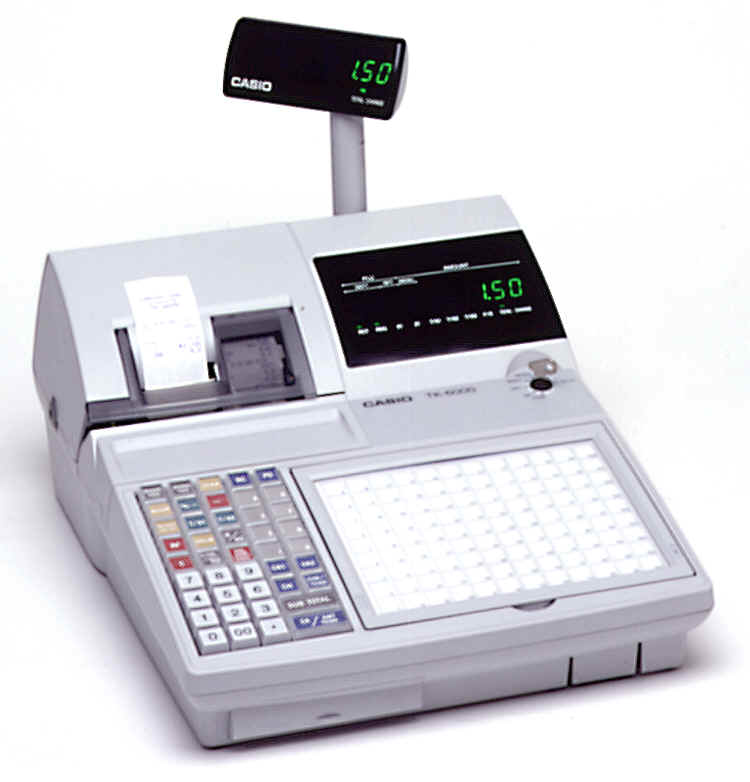

LCR Product TK-6000

TK-6000 Mid-Level Cash Register

Introduction

Flash Rom technology, 106 flat PLUs, 31 raised functions, 2 available ports, check tracking and optional IRC board

Keyboard : 106 flat plus + 31 raised free functions
Customer display: 10 digit
Display: 1 line, 10 digit operator display
Printer: New Epson printer MU-420

TK-6000 Mid-Level Cash Register

Product Features & Description

Technical Specs

Flash Rom technology, 106 flat PLUs, 31 raised functions, 2 available ports, check tracking and optional IRC board

Printer

45 mm wide two station dot matrix print

3.0-lines/second high speed printer
Receipt auto cutter(TK-7000)
4 line x 24-character logo,commercial and trailer messages
1 line x 55-digit validation printing
16-character item descriptors

Large Display

Two lines of 16 characters for operator guidance are available for the TK-7000
Pop up rotary customer display

Clerk key and receipt on/off switch

Memory

Clerk Interrupt Function
Clerk interrupt function is available for quick operation required in busy places such as pubs,where terminals are shared by several clerks.

Guest Check Tracking System
Stand alone detailed check tracking functions provide the capability of handling the check items in the food industry and specialty restaurant markets. Up to 200 tables with a variety of items can be controlled.

Scanning Function
The TK-7000 model comes with a scanning capability under stand alone scanning and it can be expanded to 5,000 items by adding optional memory chips.
Essential functions for the scanning environment such as Not Found PLU(NFP),PLU batch maintenance file,bottle link and Mix & Match functions are available on the TK-7000 model.

Powerful Registration Tools

EAT-IN/TAKE-OUT

EURO

10 TAX TABLE(ADD-IN/ADD-ON)

Hair dresser(clerk change)

Red price *

Stock control *

Bottle link *

Auto check number generation *

Review •Media change

Store/recall *

Arrangement

*:Available with the TK-7000 only

Connectivity and Expandability

PC connection direct or via modem
Up to TWO external printers(UP-250,UP-350)*
RAC-9 memory cassette provides easy and quick upgrades of application software *
Slip printer(SP-1300)
Hand held bar code scanner(HHS-15) *
Scale interface(NCI-6710 for US)
Built-in Arc-net for high performance connection for up to 32 terminals
(TK-6000 required I/O-PB-14 Interface board)

*:Available with the TK-7000 only

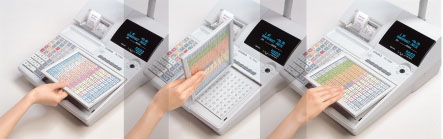

Reversible Flat Keyboard

108-key flat keyboard can be switched between menus 1+2 for quick menu changes.

Menu shift key is also available for accessing up to 6 menu levels.

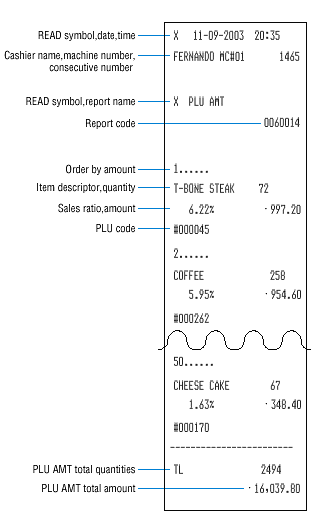

List of reports

*Financial 2**
*Free function 2**
*PLU 2**	by amount by quantity
*PLU stock 1**
*Department 2**
*Group 2**
*Clerk 2**
*Hourly 2**
*Monthly 2**
*Open check 1**
*Scanning PLU 1**
*Not Found PLU 1**
*Table analysis 2**
*Hourly item report 2**
*Mix & Match 2**
*Flash report 1**

*1:Daily report
*2:Daily and periodic report

PLU Sales Best 50 report

Option List

Categories Model name Items TK-6000 TK-7000

Interface board Arc-net communication board I/O-PB-14 • STD

Cable PC link cable PRL-CB-2 • •

External printer cable
(UP-250 and UP-350) PRT-CB-8A (3meter) • •

PRT-CB-8B (5meter) • •

Slip printer cable for SP-1300 PRT-CB-8C • •

Printer External impact type printer UP-250 • •

External thermal type printer UP-350 • •

Power supply unit for UP-250/350 PS-170 • •

Slip printer SP-1300 • •

Scanner Hand held scanner HHS-15 - •

Memory Additional ram chip RAM-610 • •

Memory cassette RAC-9 • •

Cover Wet proof cover for stroke key WT-78 • •

Wet proof cover for flat key WT-79 • •

Drawer Multi drawer kit MDL-10 • •

Coin tray for DL-2766/2767 CTR-29 • •

Coin tray for DL-3616/3617 CTR-D • •

Lid for DL-2766/2767 SLD-1 • •

Lid for DL-3616/3617 SLD-F • •

Clerk key 4 clerk key CLK-K19 • •

6 clerk key CLK-K20 • •

15 clerk key CLK-K21 • •

Paper roll Paper roll P-4575 • •

Ink ribbon Ink ribbon ERC-32 • •

Key sheet holder Flat keyboard key sheet holder SH-KIT5 • •
