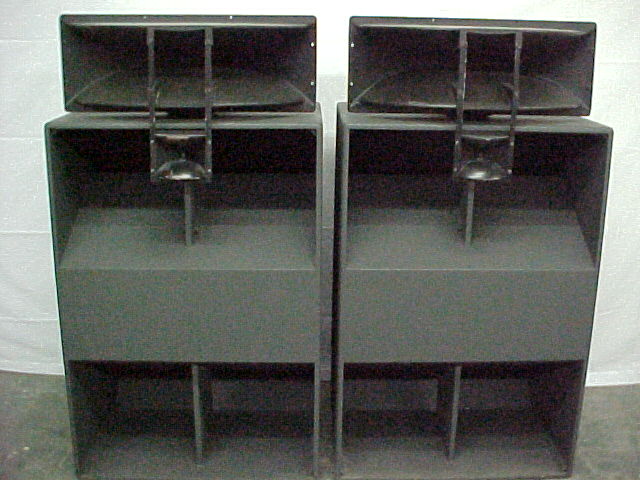

Sentry 4 A
Pro Sound Facts # 7 ... 1.14mB
2240G&H
2340,2345,2350,2355
2482
DH1A ... 118kB
EV library has HP9040
Sunday May 25, 2003
~~~~~~~~~~~
single woofer version of the LABhorn
dwg55a   dwg55b   dwg55c   dwg55d
3.75 meters of throat length
(1/4 lambda of 23 Hz)
excel file
revised Saturday May 31, 2003

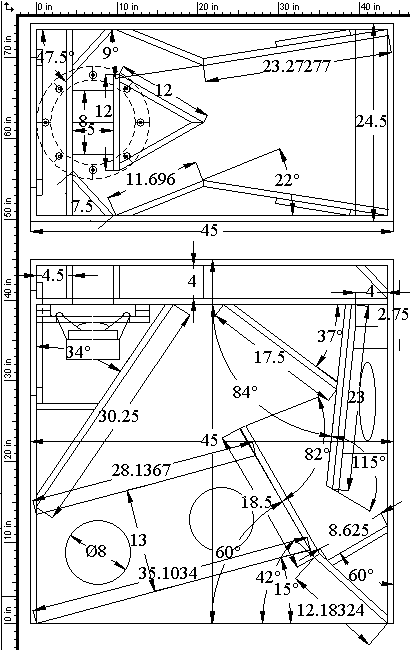

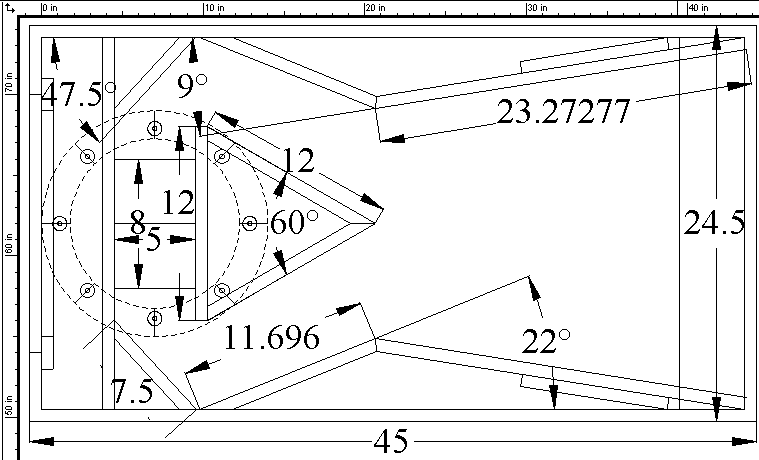

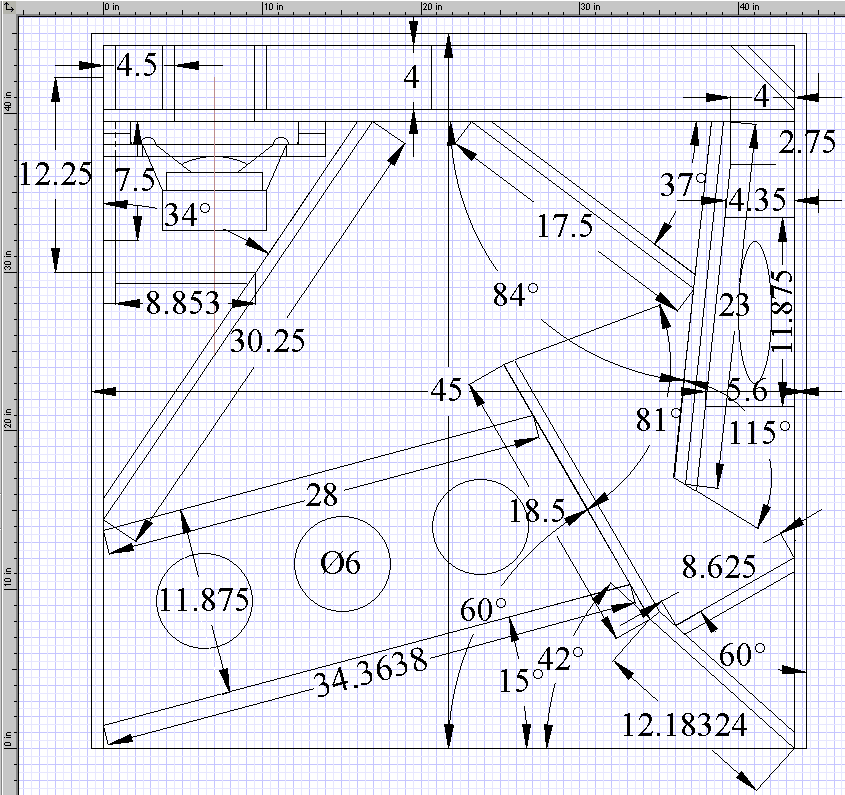

dwg56a   dwg56c   dwg56d
3D:

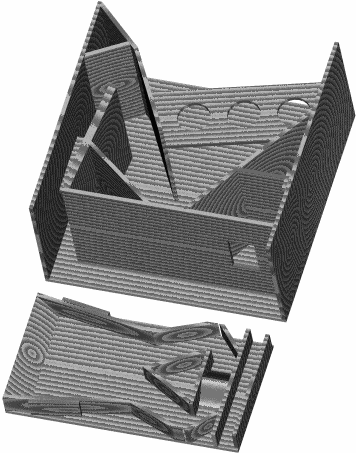

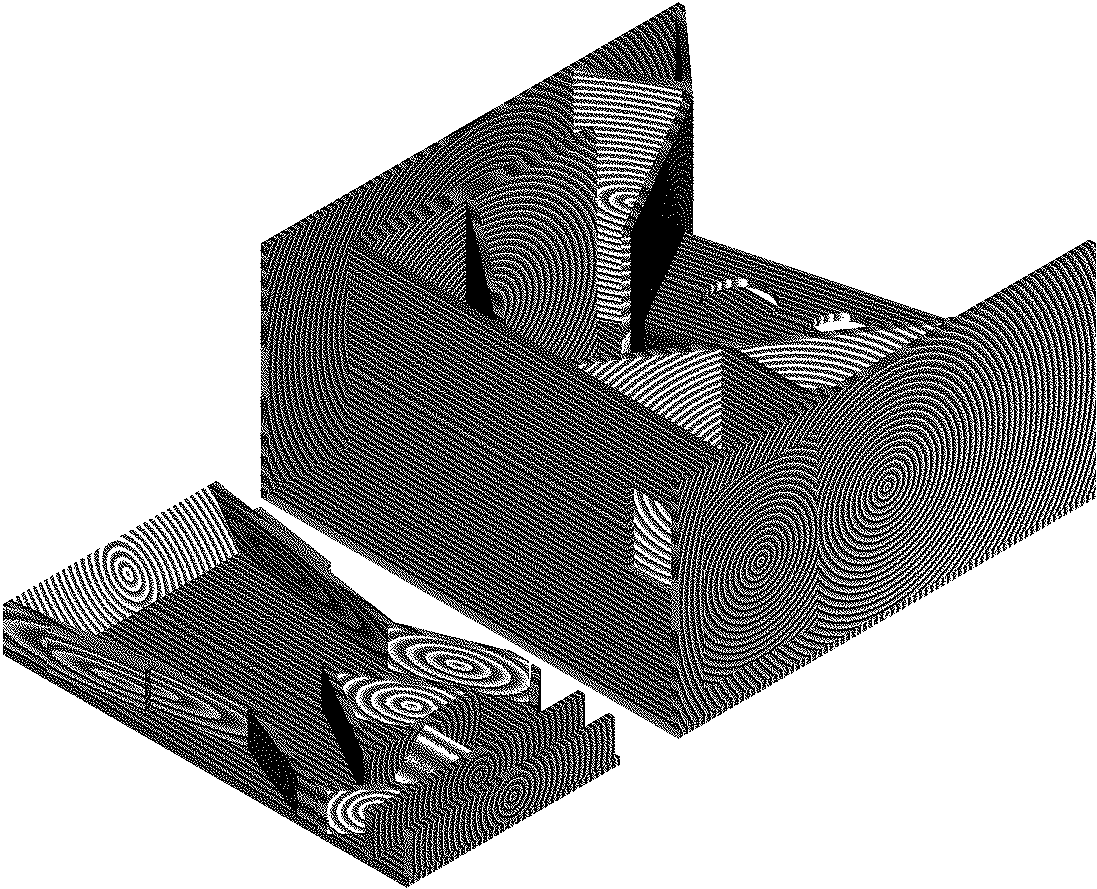

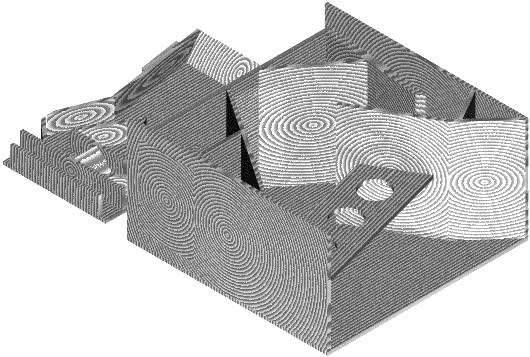

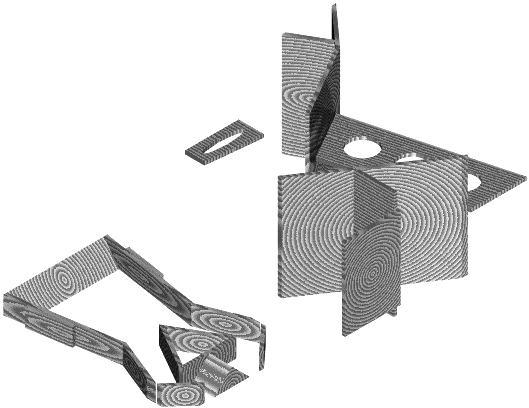

dwg56e dwg56f dwg56g dwg56h
Nov 13-compensated for duplicated area:

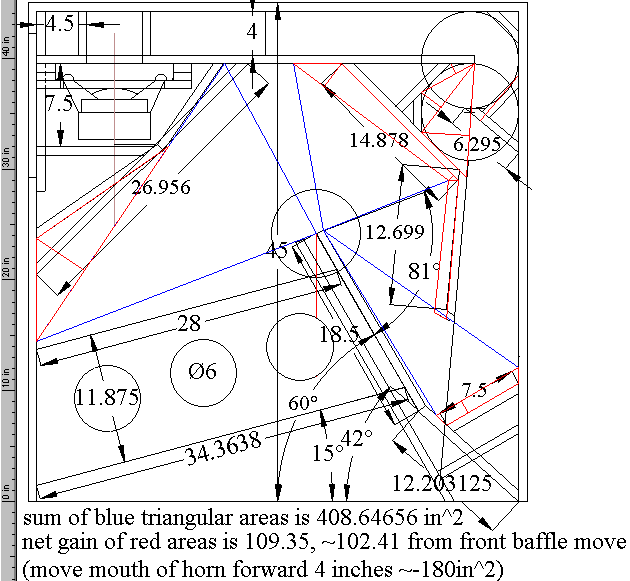

dwg57 dwg58
home
most recent project:
JBL 2025H + Zomax H2017
img6   img7   img8
1 cu ft, Fb:81 Hz,

img9 img10 img11 img12
img13   img14
download limit is ~4.2mB/hr
site gets shut down for 1 hour if exceeded
SM120A ... 684 kB
January 24th, 2004

dwg59
maybe this is a more
realistic design, adjusting for
the constriction on the inward
side of the final mouth flare by
transferring some volume to
the exit of the first u-turn

February 5th, 2004

dwg60

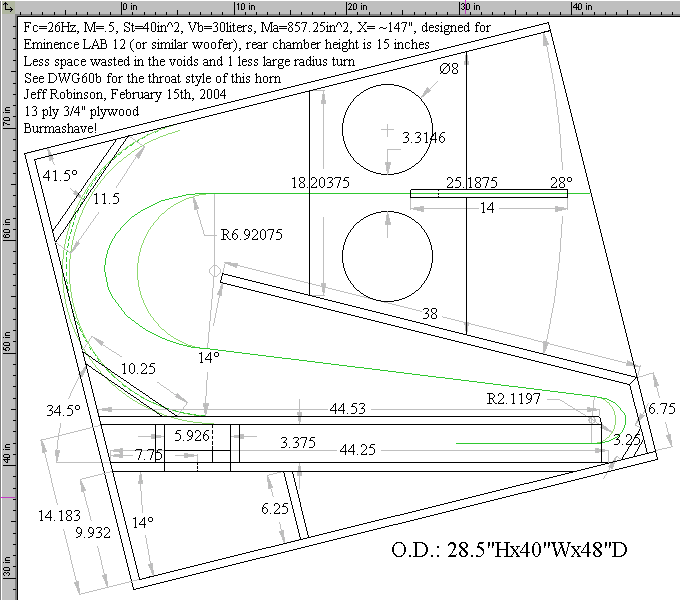

dwg60a   dwg60b    dwg60c

February 22nd, 2004

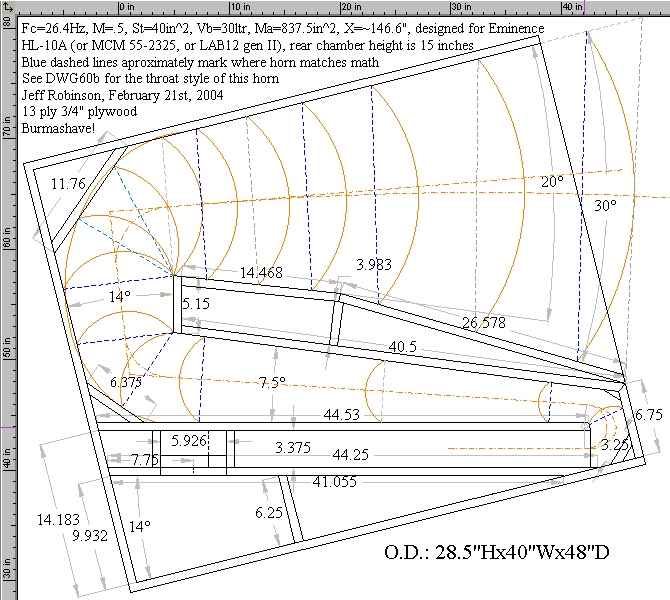

dwg61
I can't seem to let
well enough alone

April 17, 2004

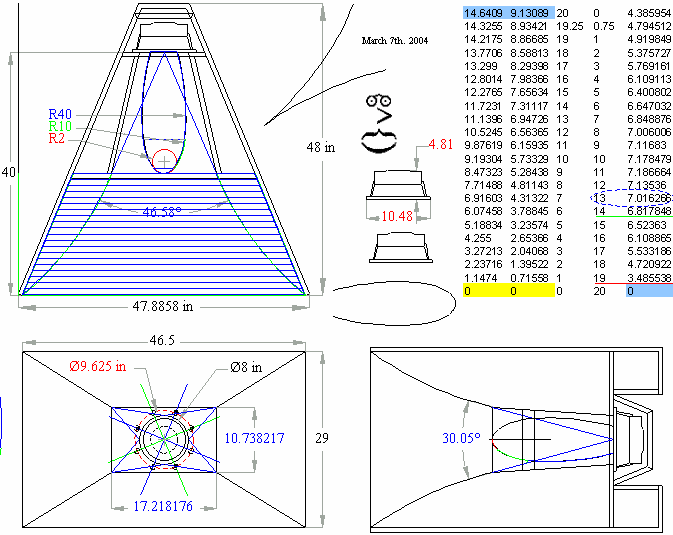

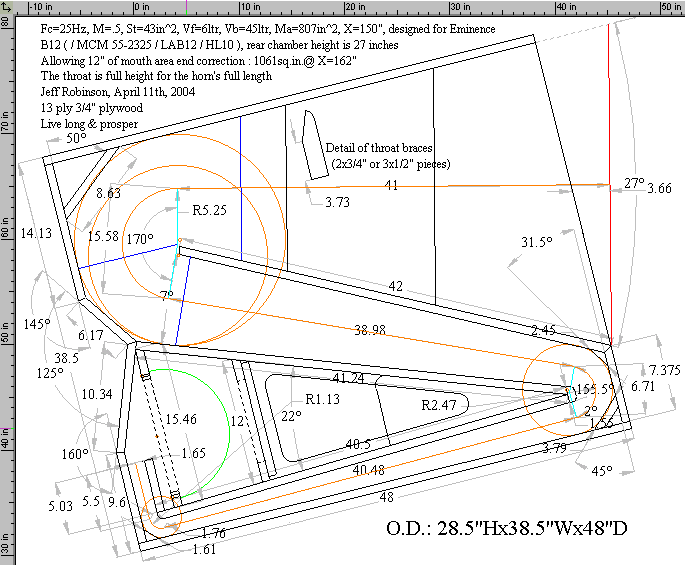

dwg62    dwg64
