Drawings of the plates for my bass cabinet designs.

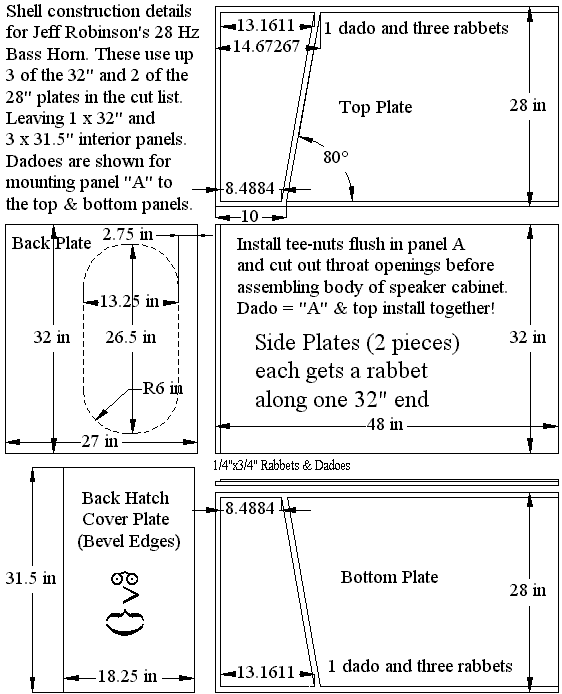

Shell of my 1/16th 28 Hz Bass Horn
Panels A and D
Panels C and K
Panels B, E, F and L
Panels G and J
There are no H or I panels
The U-turn semicircles
the "Lease Breaker" tweaked
Rear corner reflector angle:
min 15, max 22.5 degrees
recommend 18 degrees
Use 1/4" deep rabbets/dadoes for mounting A, B & C (x2)
Use 4xG as alignment battens for D, E, F & H
(this is also the top & bottom plate diagram)
2 of each plate except 1xH & 8xG
Panel A (32" tall to use rabbets)
Panels B & C
Panel D
Panel E
Panel F
Panel G
Panel H (speaker baffle)
Panel I
J(x4) and K are 1.5" square stock
used as corner battens for
mounting I (x 2)
3D cutaway view
