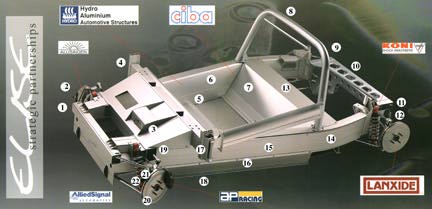

Parts
- replaceable composite
energy-absorbing front sturcture
- front -mounted top
exit radiator for aerodynamic downforce
- patented extruded
pedal box and pedals
- bonded joints using
high performance structural adhesives
- passenger safety cell
comprising side rails, dash beam, tank bay cross members and roll hoop
- anodized thin wall
aluminium extrusions with interlocking joints for tolerance control
- fully protected fuel
tank at centre of gravity
- full roll hoop
- replaceable aluminium
energy absorbing rear structure
- optimized lightweight
steel rear subframe
- wishbone pivot bushes
with high radial and low torsional rates
- compliance steer
control link on rear suspension
- structure utilises
front and rear torque cell concept
- 2D bending for
structural continuity
- side rails and cross
car stuctures for side impact protection
- patented bond gap
control
- extruded door beam and
hinge
- flat underbody for
greater aerodynamic efficiency
- steering rack mounting
minimises column intrustion
- aluminium Metal Matrix
Composite (M.M.C.) brake rotor
- extruded aluminium
suspension upright
- independent toe and
camber adjustment
