| Scooter |
 |

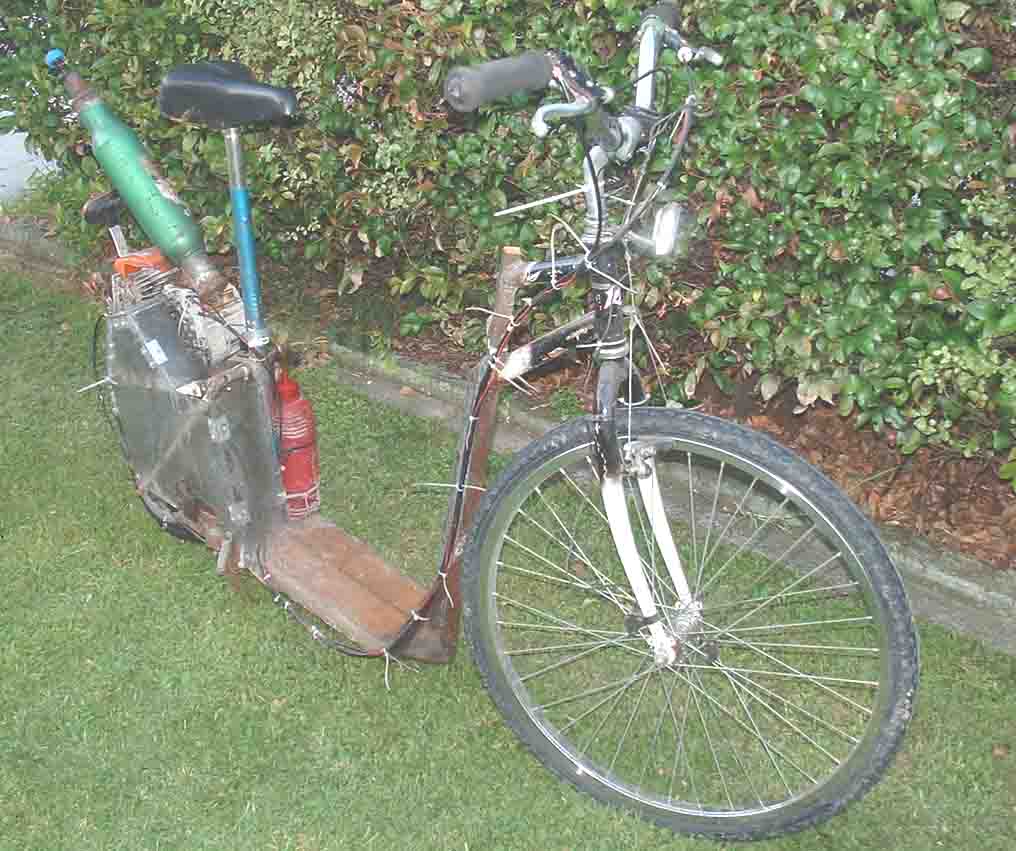

| I acquired a chain saw motor in great condition ( the owner had dropped a large tree on it and the other bits were beyond repair) What a chance to give a GoPed a run for its money It will do 70 kph on the flat Other parts were; An old ladies bike A sack barrow wheel (the tyre only lasted 50 km so a better one is in use) A few odds and ends of steel |
 |
 |
 |
 |
 |

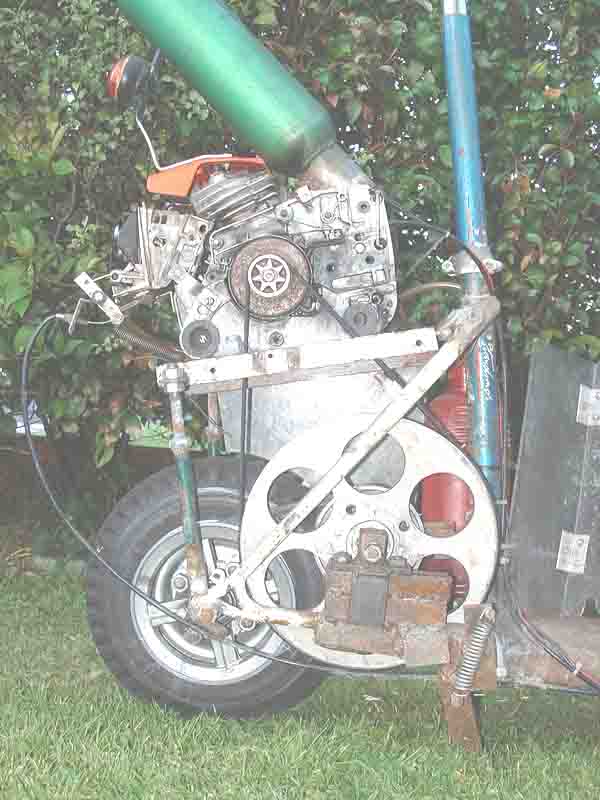

| This is an overview of the drive system The Primary drive is a multi vee belt The pulleys were machined with the router The Second stage is a single vee belt The muffler was kindly donated by a neighbour (without it, its painfull on the ears) |

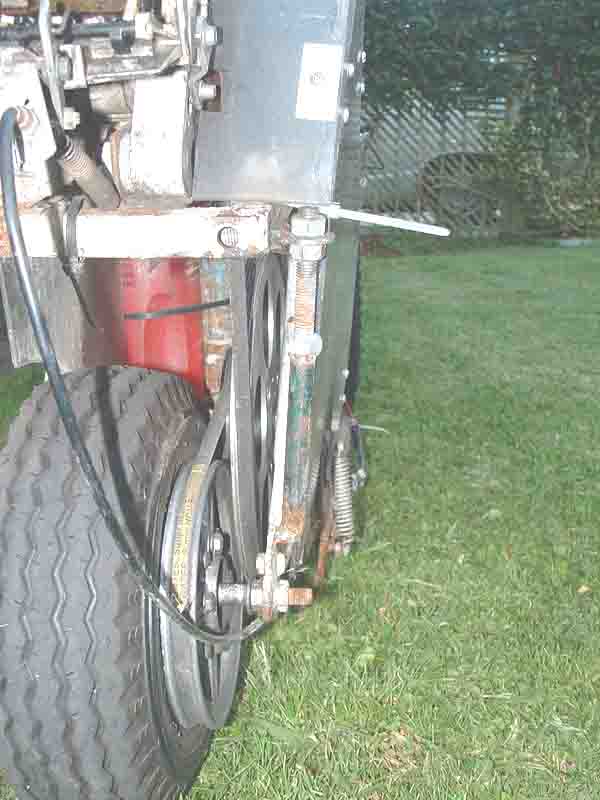

| A view of the second reduction stage |

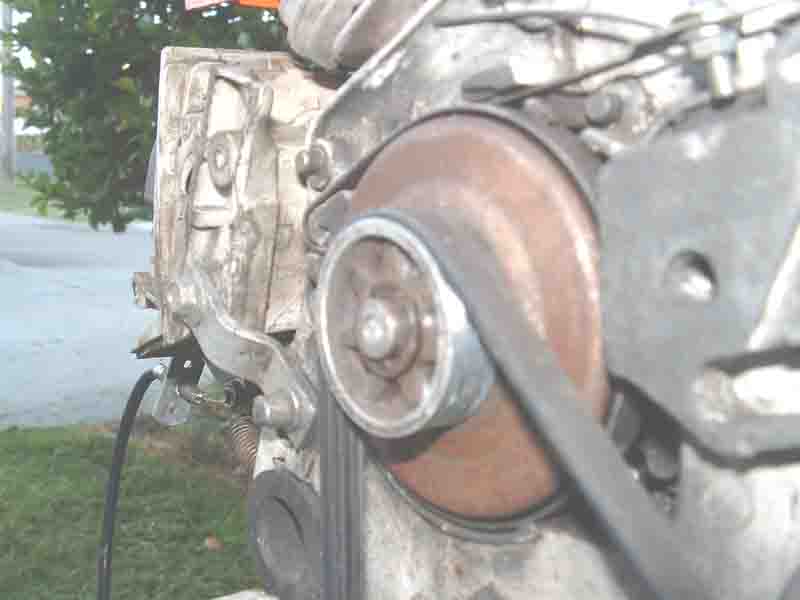

| The small pulley was machined to press over the existing seven tooth chain drive and then set in-place with some epoxy To date this has not moved |

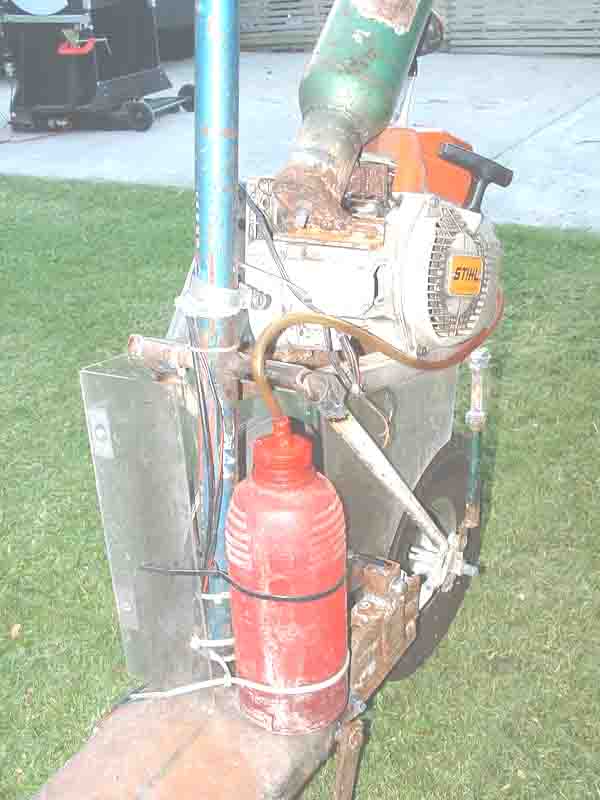

| A look at the fuel system |
 |
