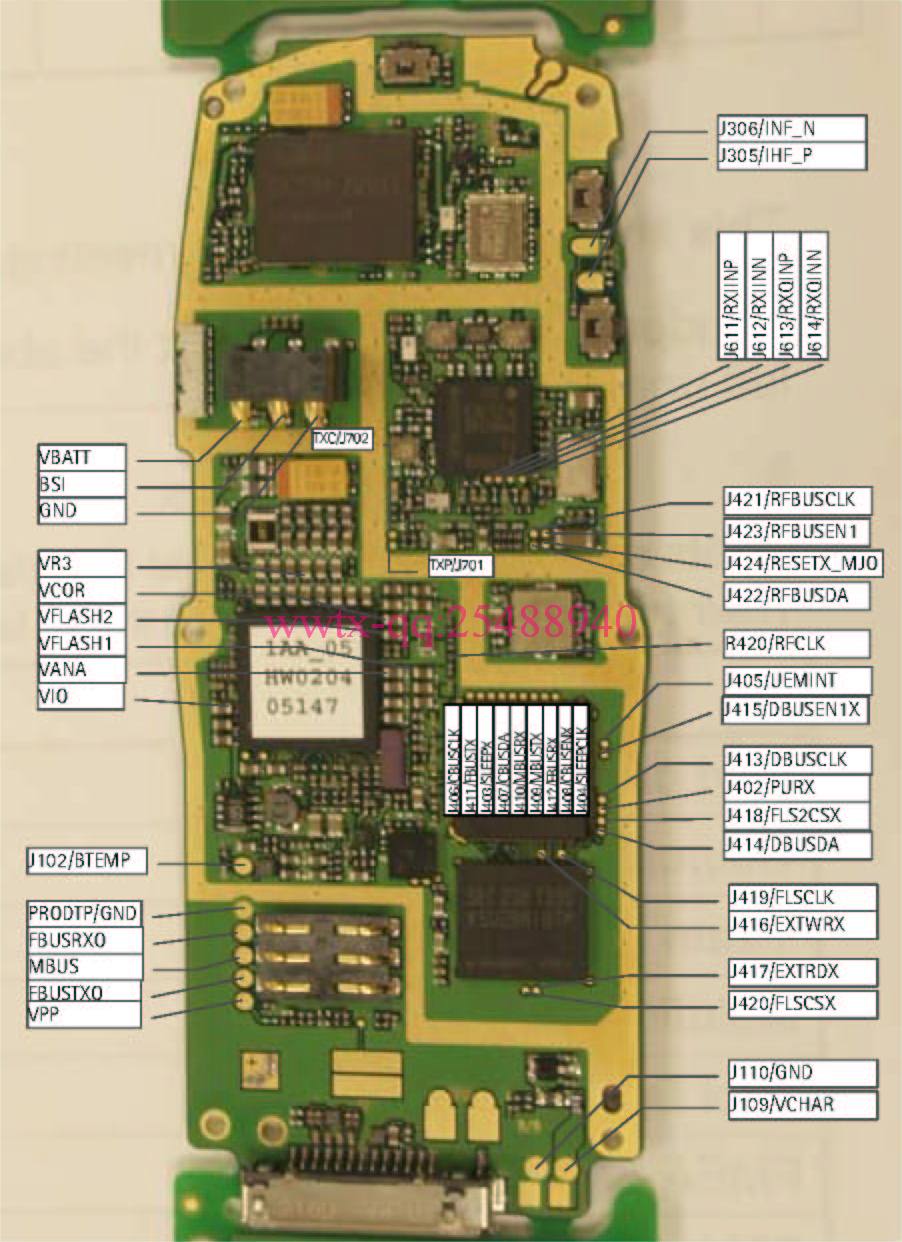

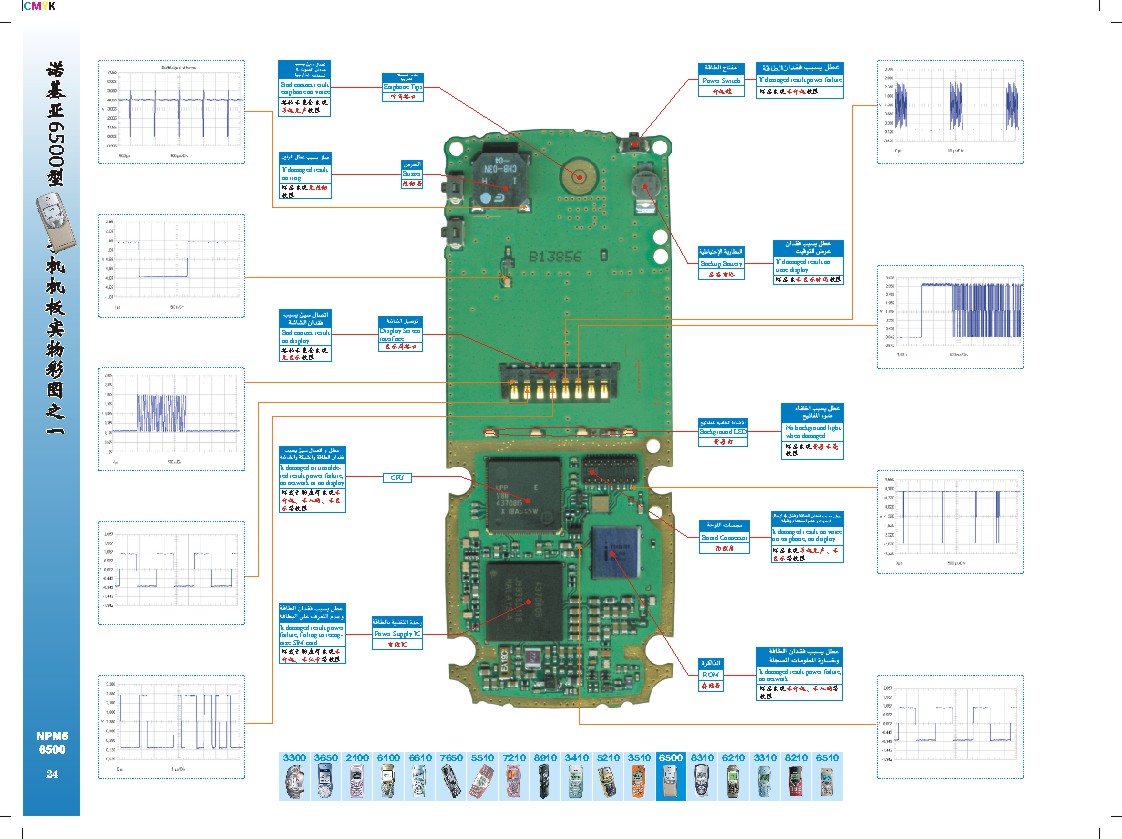

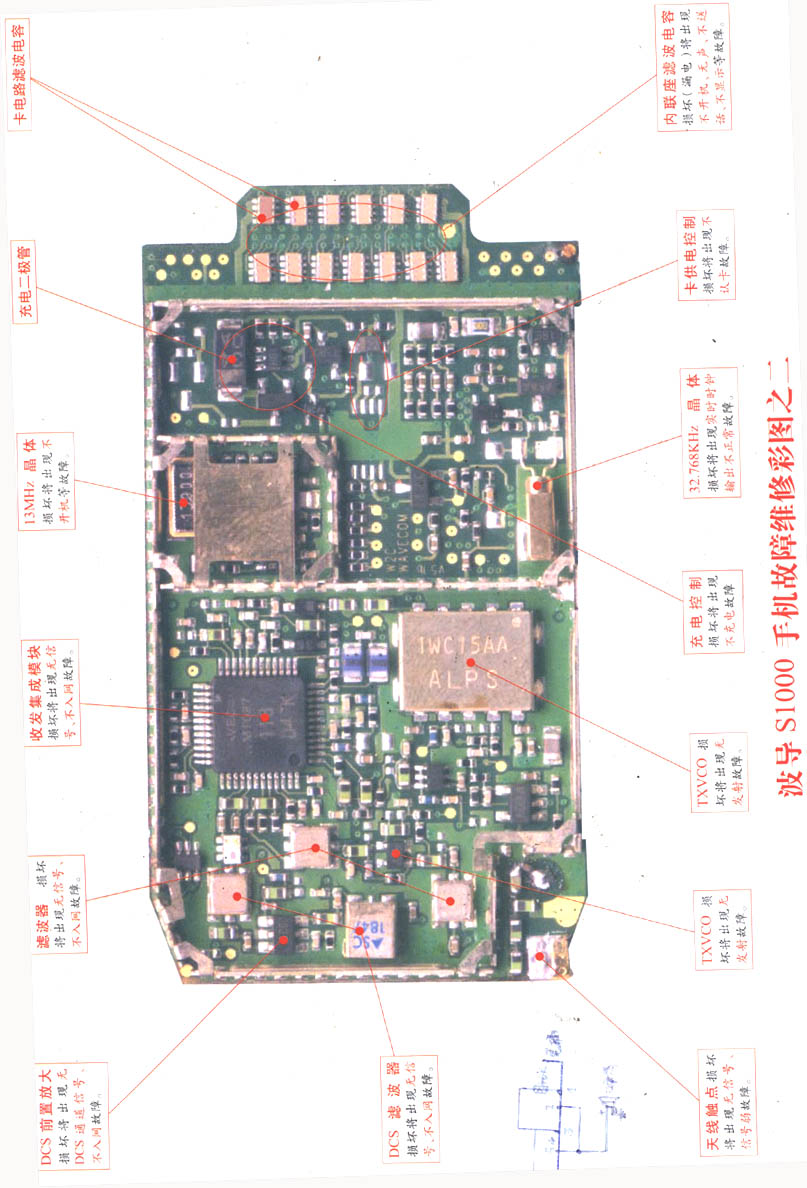

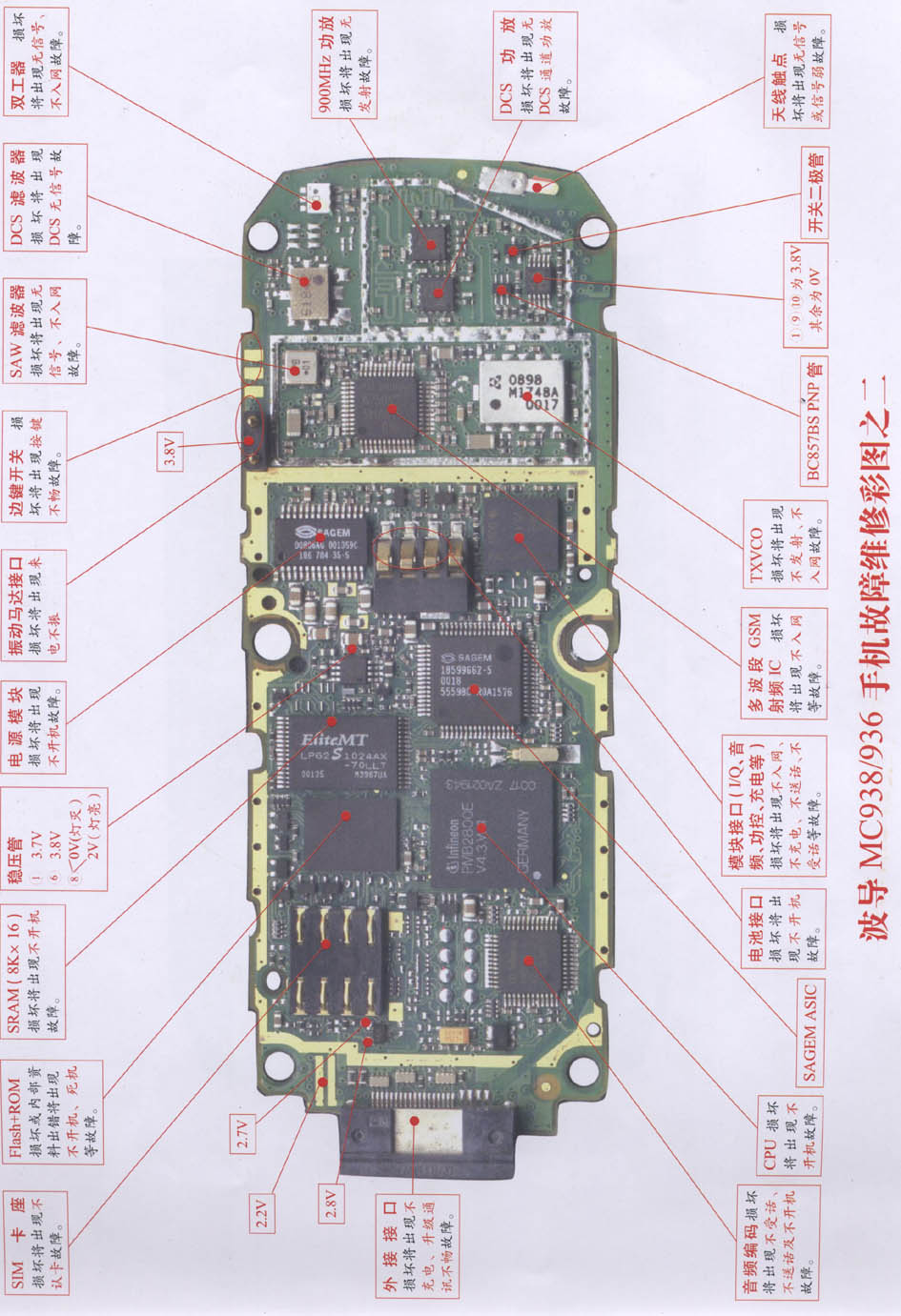

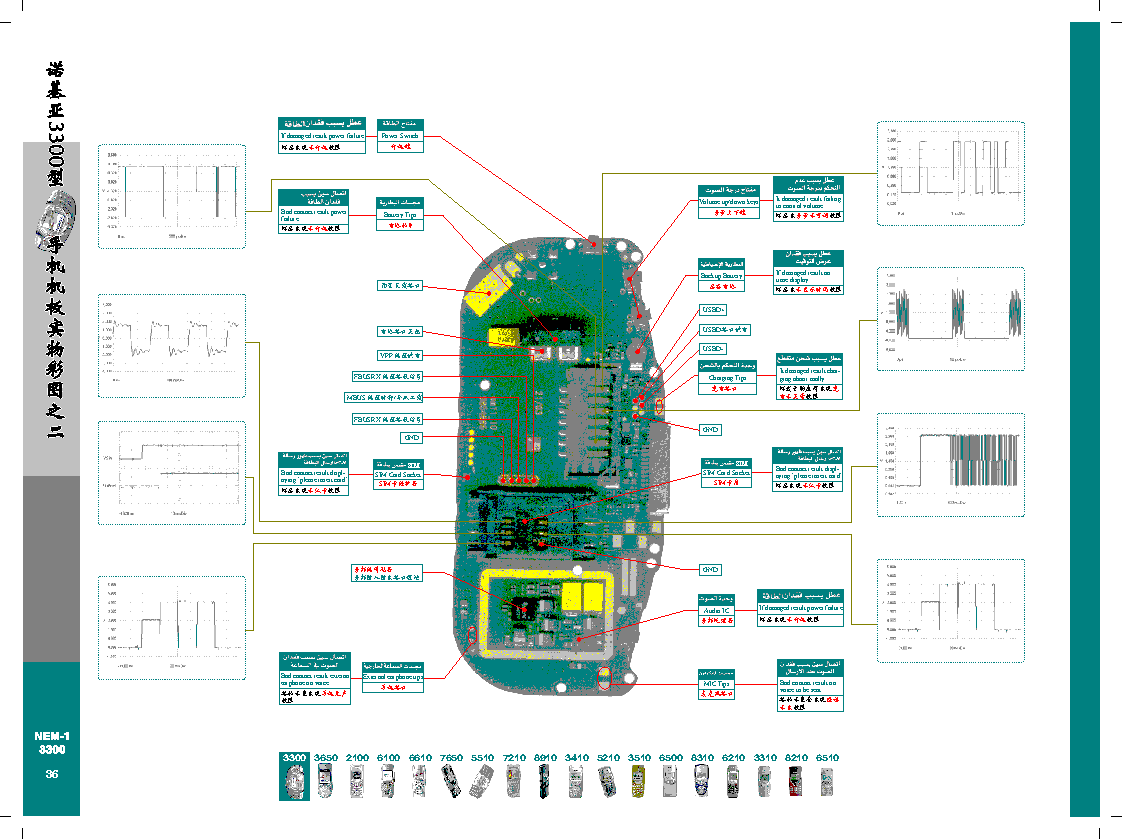

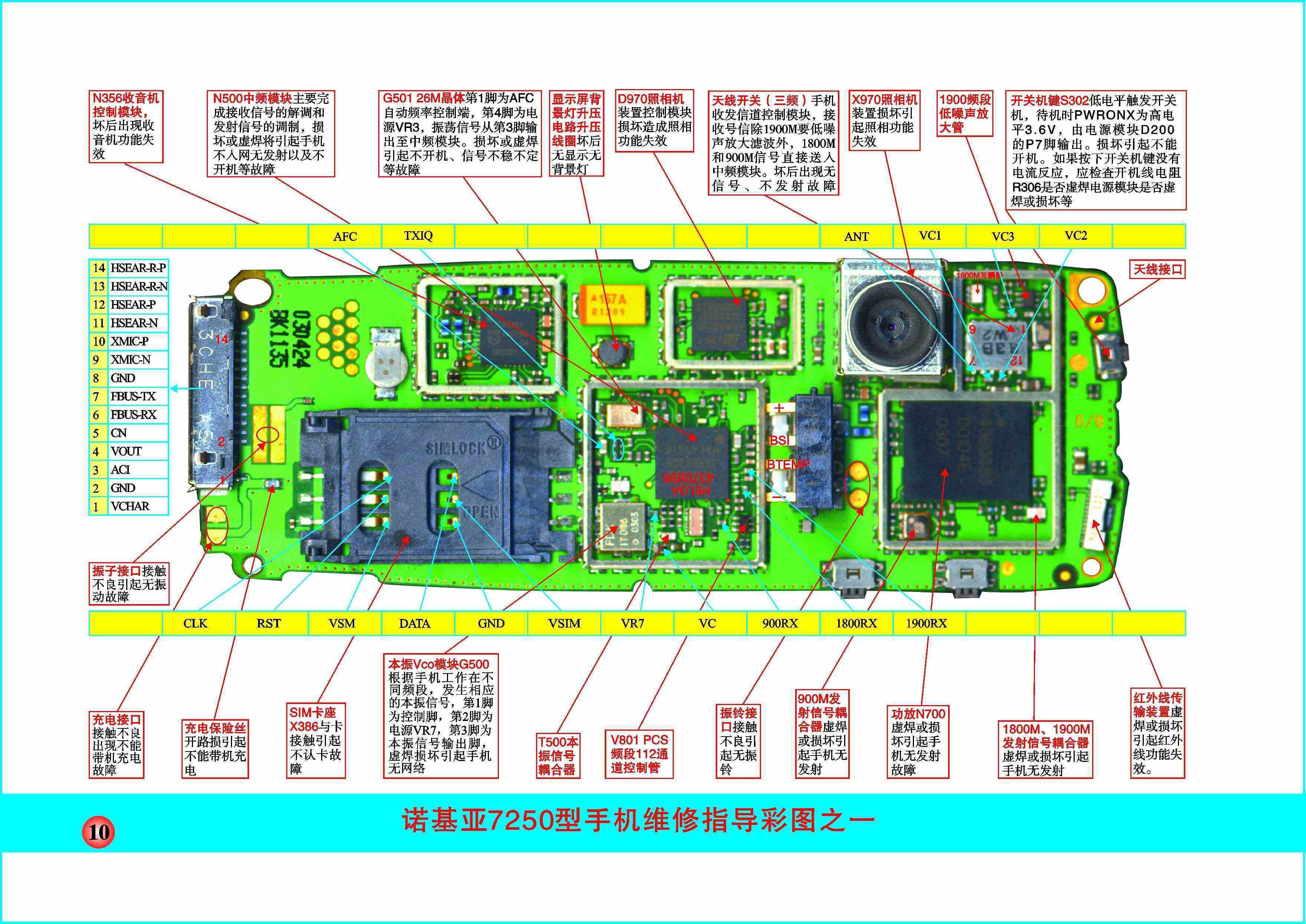

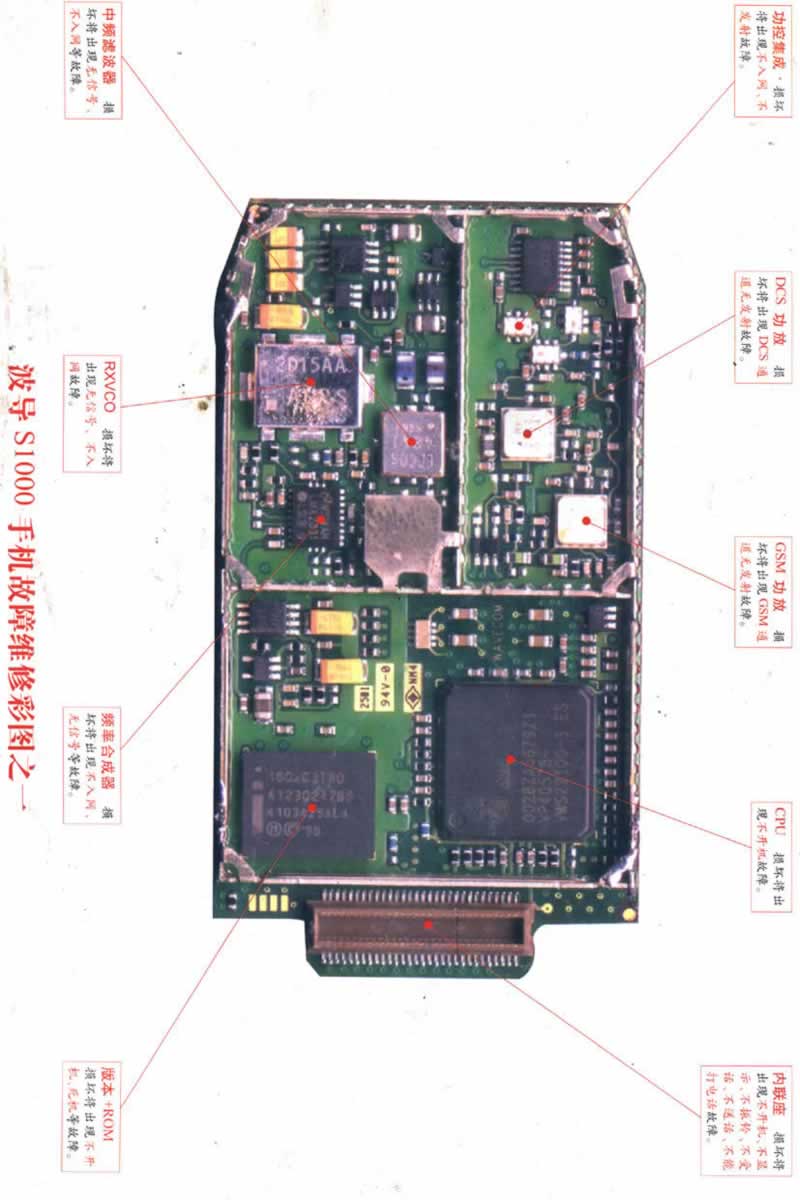

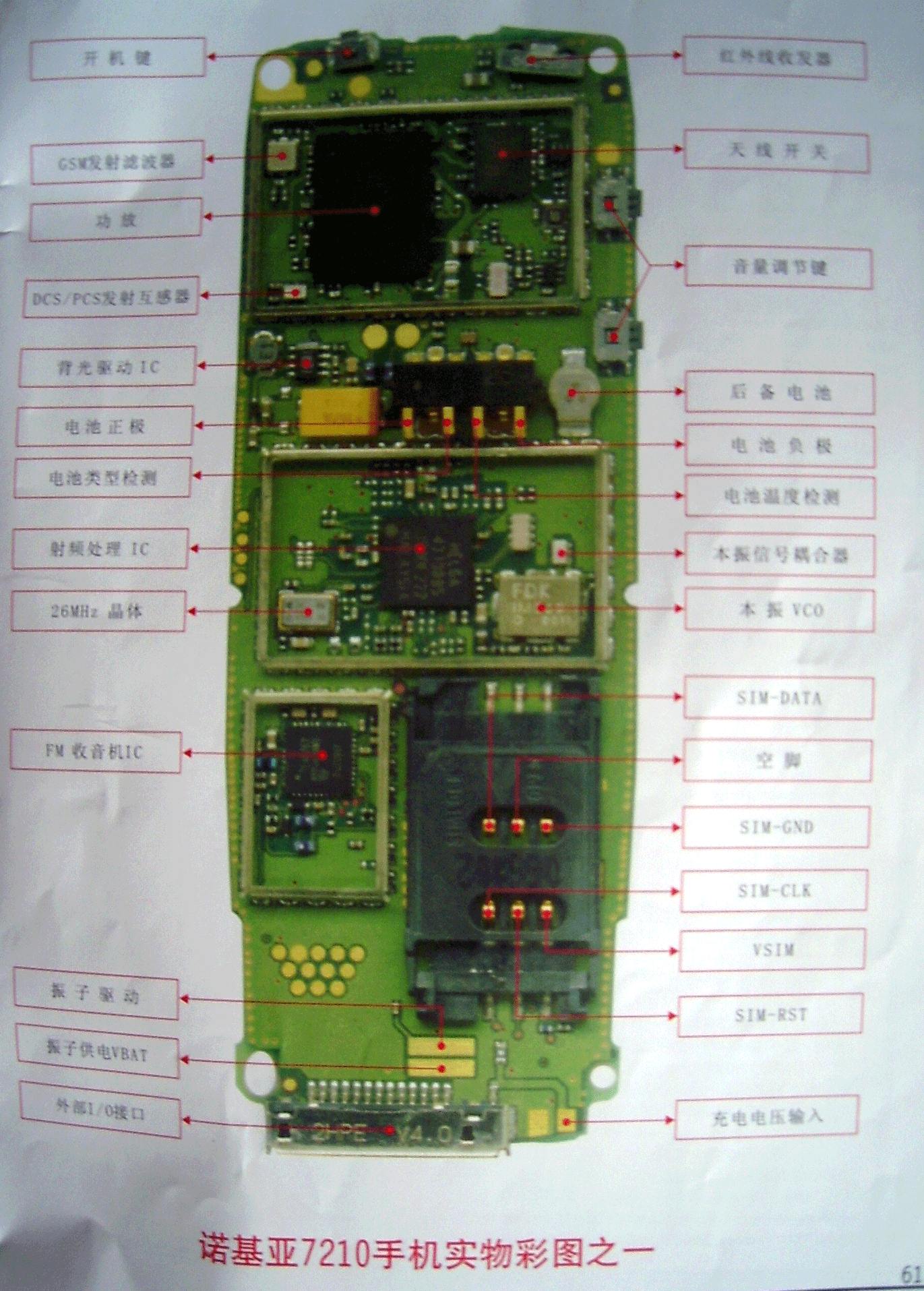

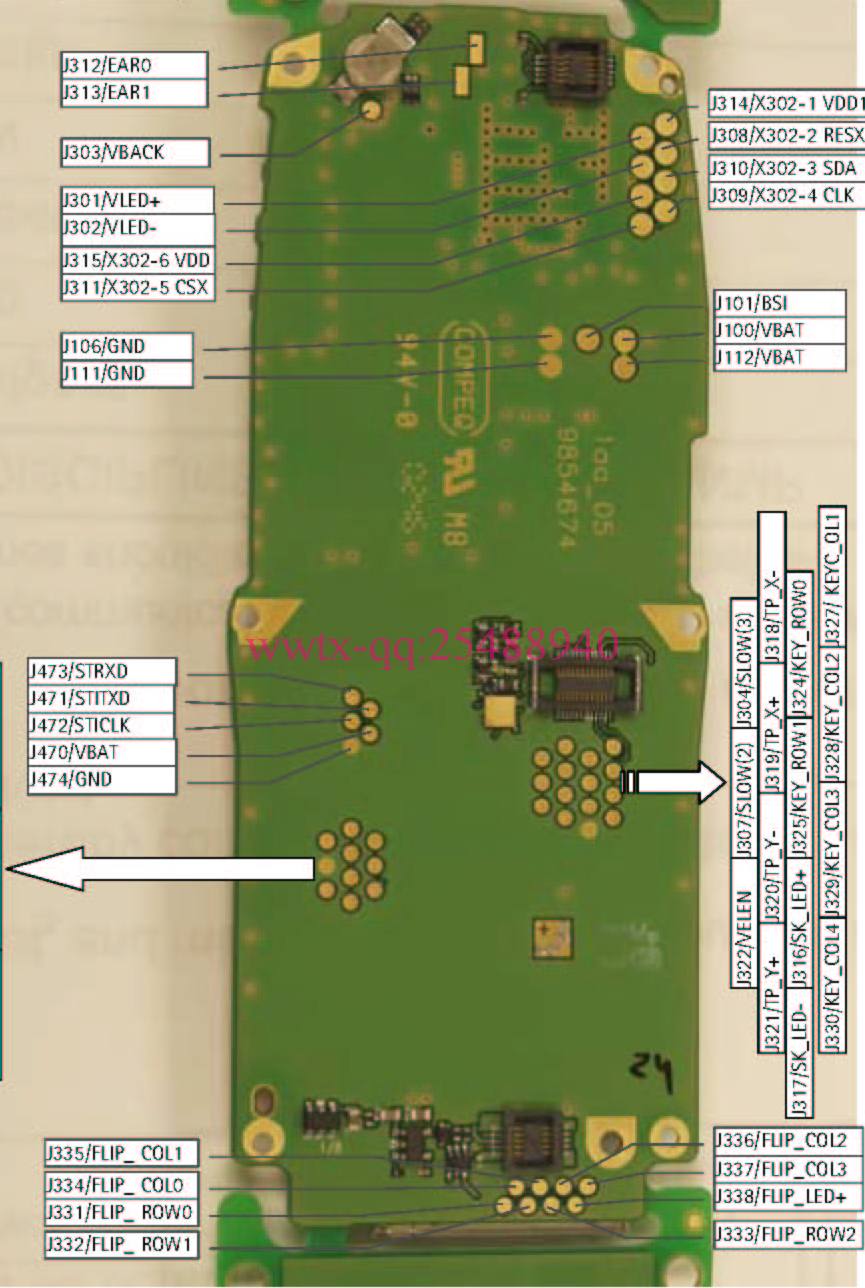

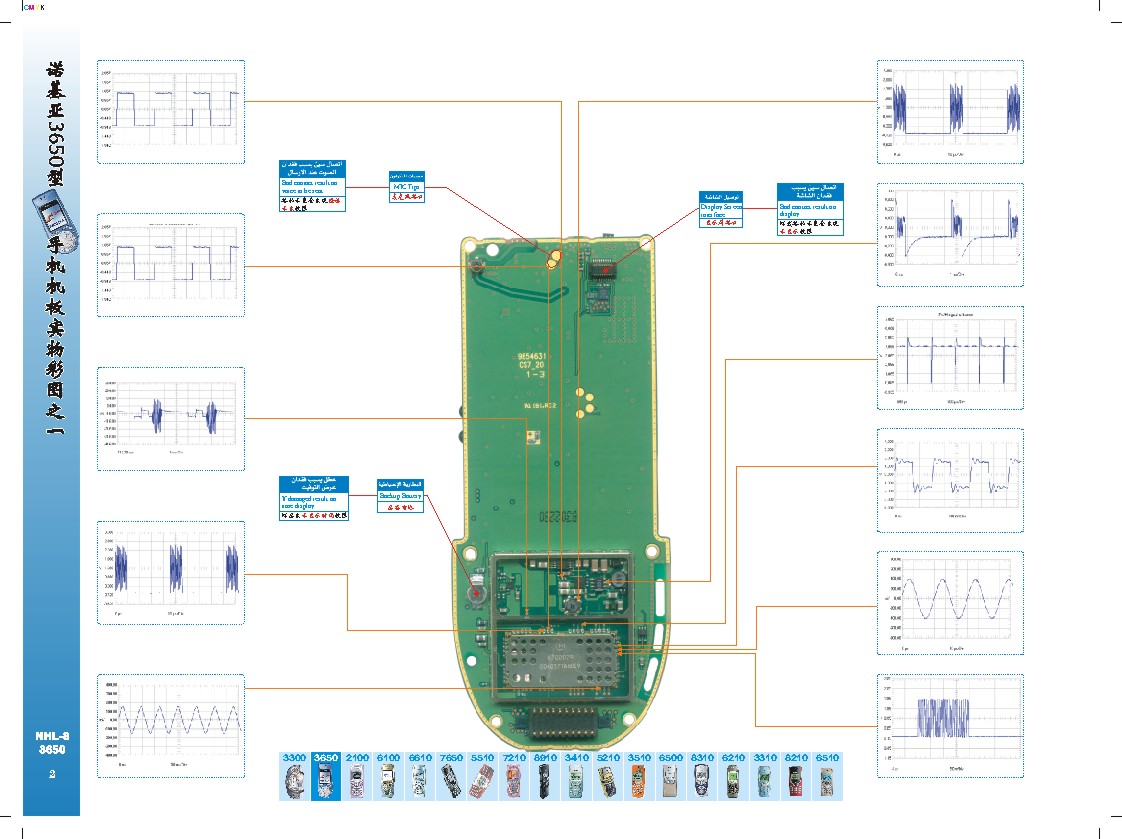

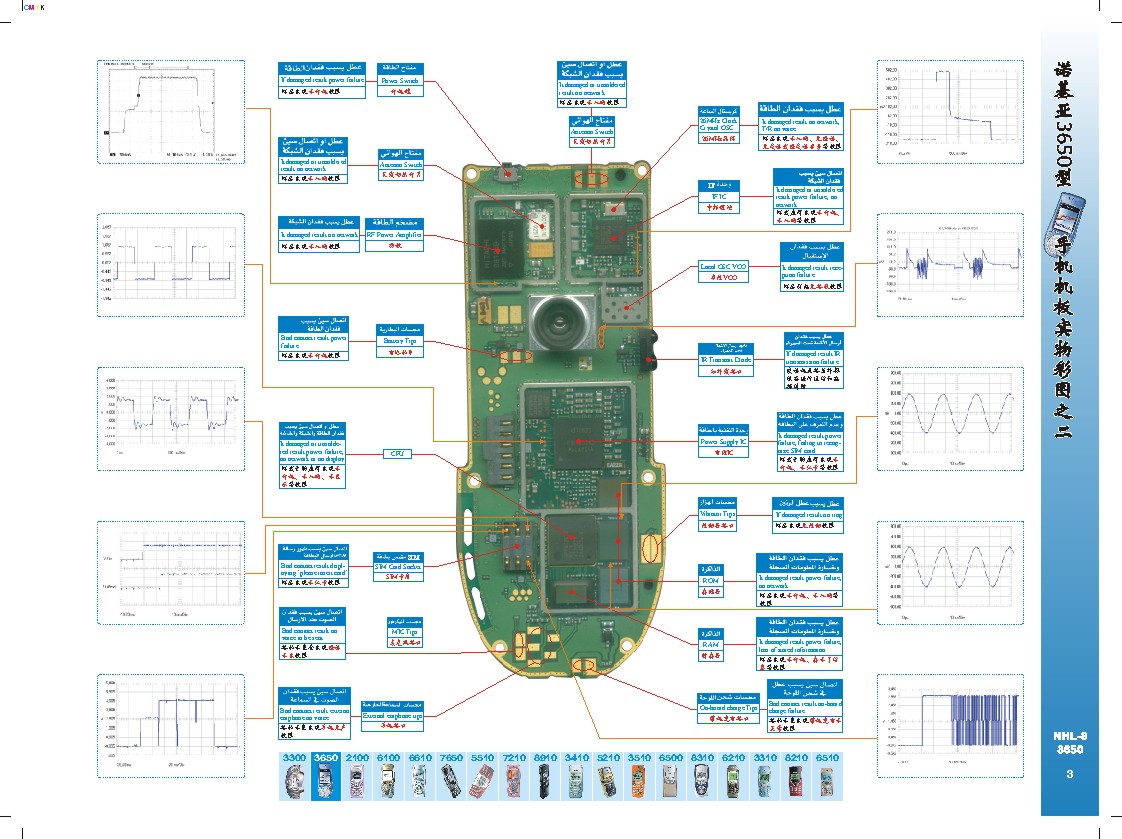

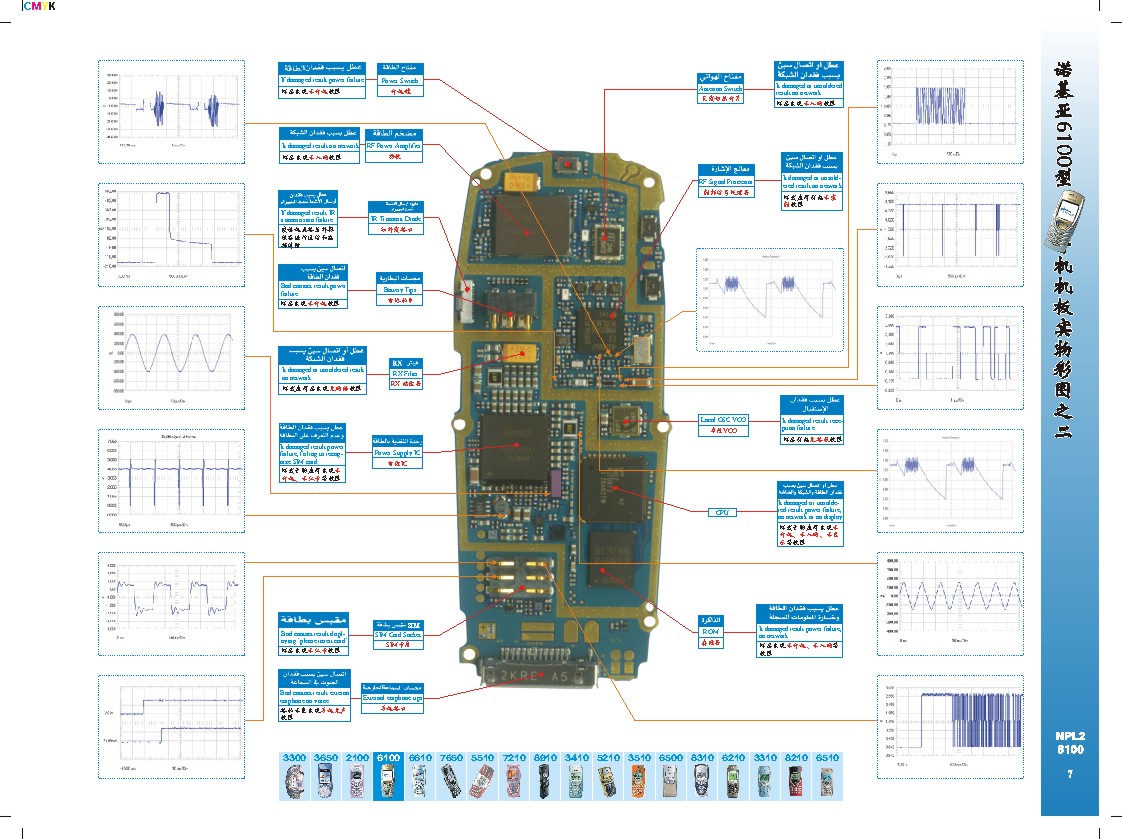

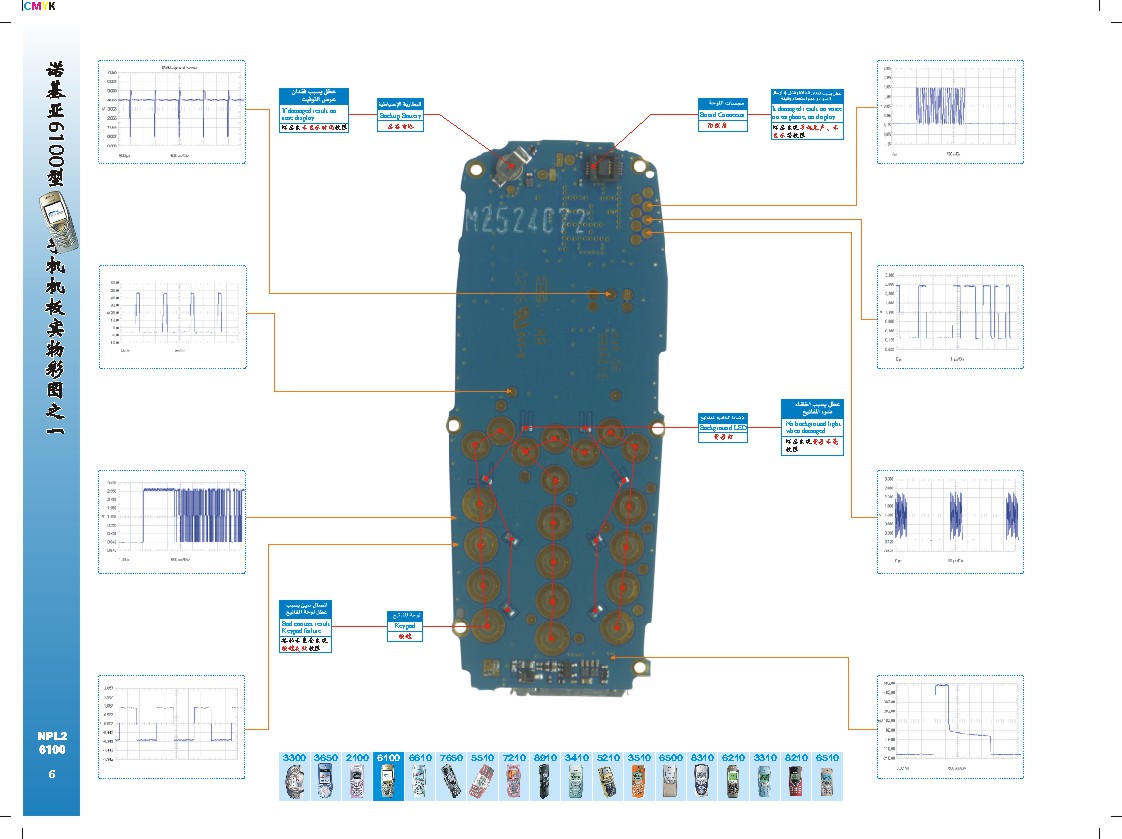

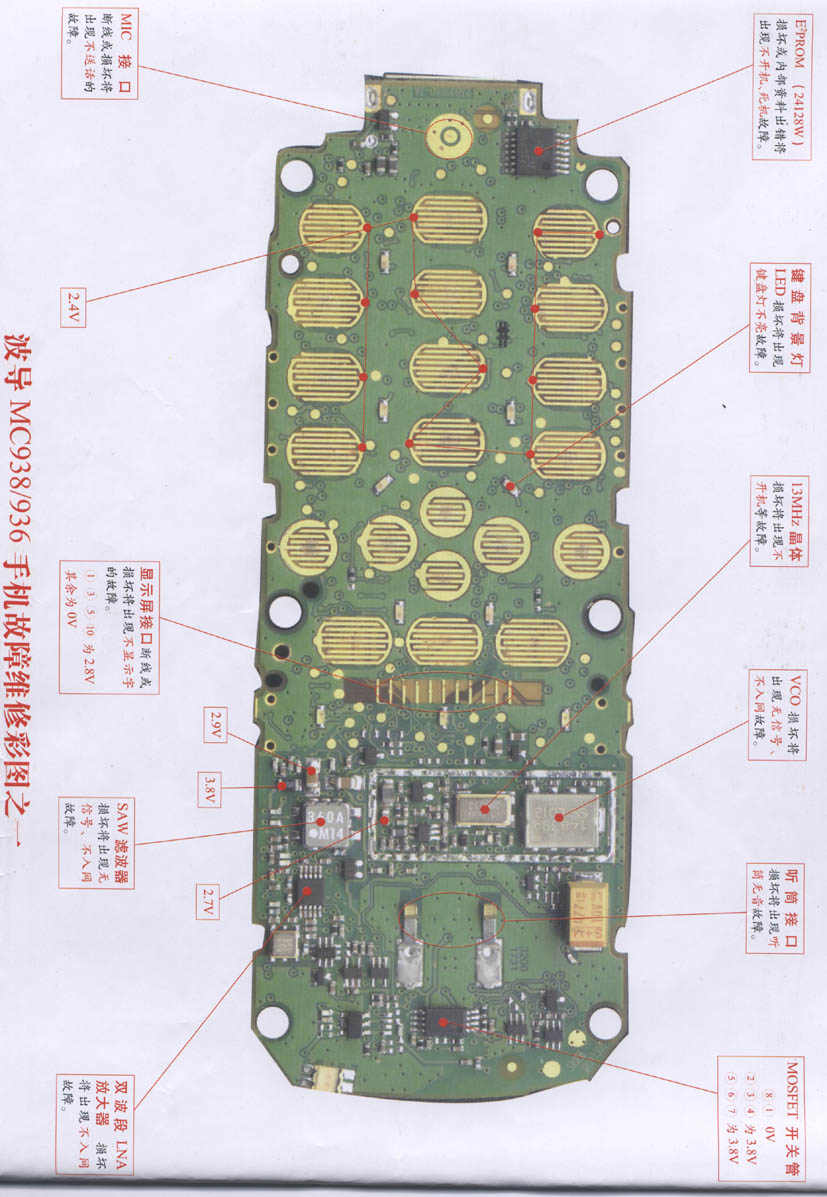

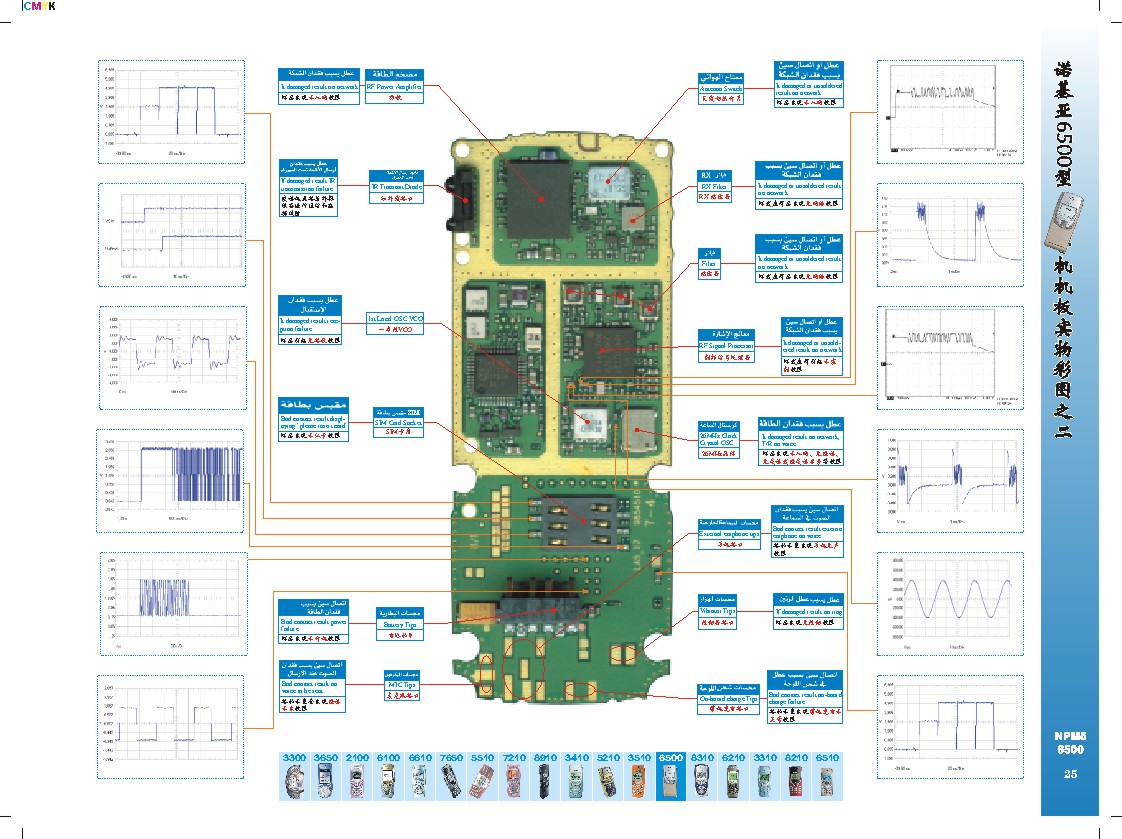

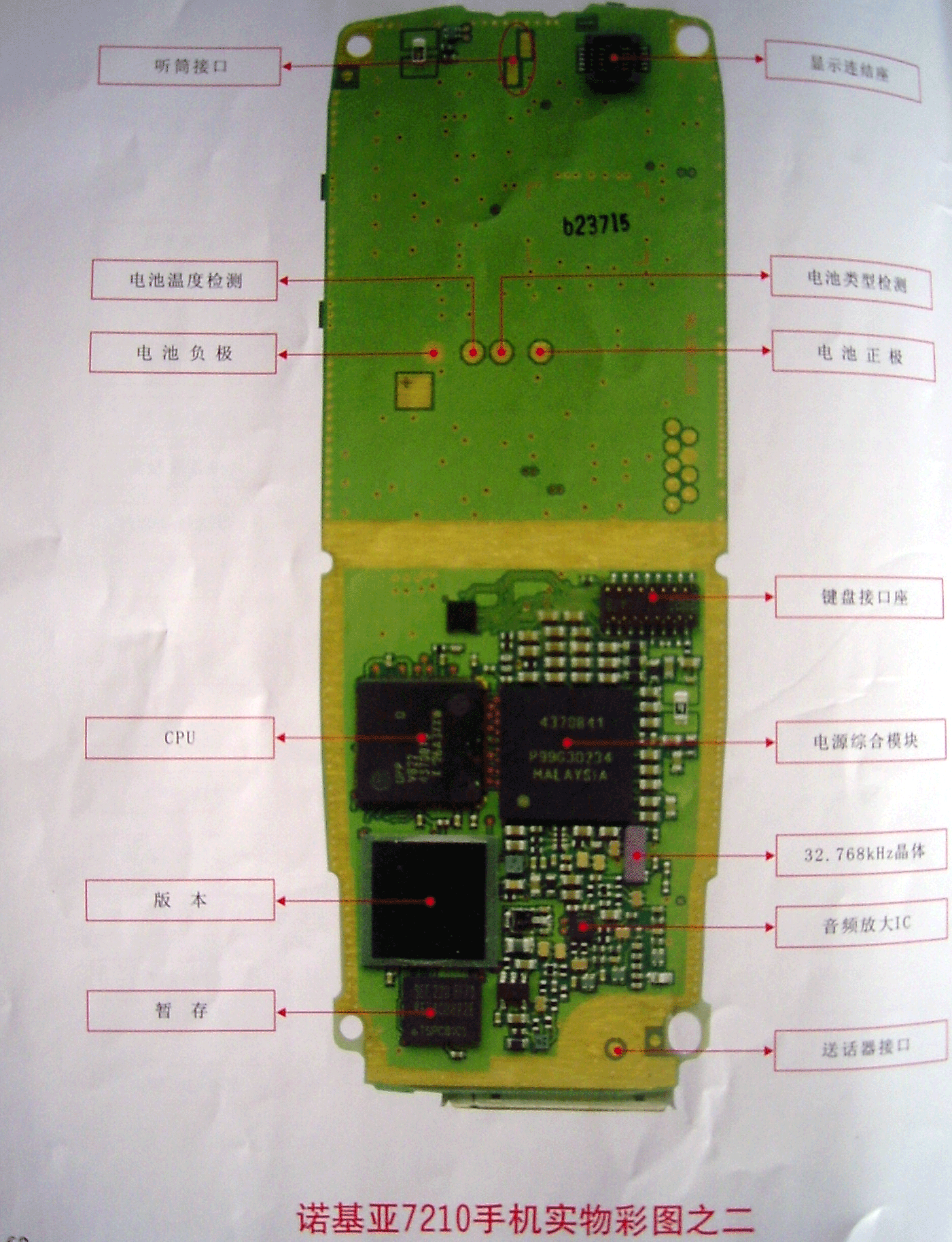

| THE ABOVE IS PHONE DIAGRAM PLEASE FEEL FREE TO DOWNLOADS |
| __________________________________________ |
| FLASHING 3650 ON UFS2 TORNADO 1) FLASH MCU + PPM : ENGLISH MCU C1 + PPM 32 : CHINESE MCU C4 + PPM C4 (OR WRITE PPM ONLY) 2) WRITE PM : INIT LOCAL MODE THEN WRITE PM 3) FORMAT USER AREA : INIT NORMAL MODE INIT TEST MODE FORMAT USER AREA 4) UNLOCK : INIT TEST MODE THEN INIT SIMLOCK THEN FULL FACTORY DEFAULTS 5) WORKS FOR ALL EXCEPT VERSION 4.13 WHERE U NEED TO MODIFIED CABLE TO ______ RJ45 6 - BSI ---|_3.9K_|------X------ BSI PHONE ______ | GND 2 ----------|_68K_|--------------- BECAUSE WITHOUT THESE MODIFICATION PHONES DO NOT SWITCH ON AFTER FLASHING AND NO CHANCE TO MAKE THEM "FULL FACTORY DEFAULTS" |
