B05/40 - 42 - MG EX264 - B07/40 specifications

The new Lola LMP2 design is built to the FIA's revised aerodynamic regulations and features the newly-mandated double rollover hoop. The LMP2’s new carbon composite chassis will be submitted to the full set of revised crash and structural tests laid down by the FIA requiring that LMP2 cars meet the same standards as LMP1 cars.

In an innovative move, the new package will also allow owners of Lola's current LMP675 models to update to full LMP2 specification by purchasing an update kit made up of the new monocoque and bodywork. Not surprisingly, Lola will take the experience and expertise of it’s extensive CFD and aerodynamic capabilities to maximise the aero efficiency in respect of the new regulations that will see the removal of the flat undersides to the cars.
Lola engineers will be utilising the new monocoque as the basis for an LMP1 model in the future. The chassis could also be made available to other manufacturers as a foundation for their own sportscar projects in either of the new categories.
( source Lola Cars )

DESIGN / TECHNICAL SPECIFICATIONS

MONOCOQUE
  The chassis is constructed from carbon fibre in one piece, with symmetrical twin rollover hoops.
Seatbelts  Sparco
Fire extinguisher SPA
BODYWORK
  Construction is pre-preg glass fibre with honeycomb core in order to stiffen the upper panels. The rear wing and underbody will be of a lightweight carbon composite construction.

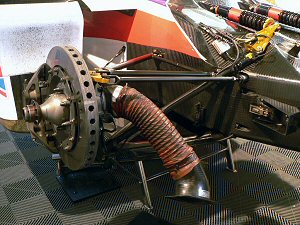

FRONT AND REAR SUSPENSION
  Upper and lower steel-fabricated wishbones, pushrods and rockers transmitting the loads to Ohlins T44 dampers (3 way adjustment). Front and rear uprights are fabricated from aircraft spec steel and TIG-welded.  Quick change anti-rol bars front and rear. Suspension set_ups to be developed using Lola in-house seven-post test rig.

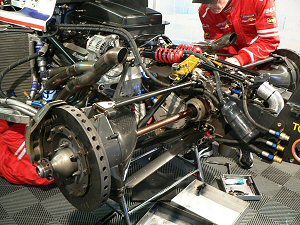

GEARBOX / TRANSMISSION
  Depending on the engine installation (AER turbo 4cyl, Zytek, or Judd V8), one of 2 Lola designed and manufactured gearboxes will be used. Lightweight magnesium castings. Both are 6 speed manual sequential units based on proven Champcar and LMP675 technology.
BRAKE SYSTEM
  Hitco Carbon brakes, discs and pads. AP Racing callipers and master cylinders
Dimensions: Front & rear vented brake discs : 355mm diameter
ENGINE INSTALLATION
  Standard configuration for AER turbo or normally aspirated Judd V8 engines. Alternative installation packages to match customer's choice of engine ( Zytek, Nicholson ... ).
Interface with chassis electrical system to suit selected engine type.

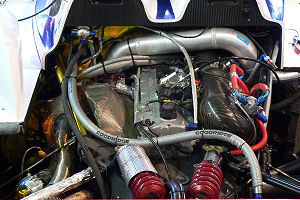

AER engine: starter-alternator assembly is supplied by Lola.
Judd V8 or Zytek : starter is mounted in the bellhousing.
All installation packages will include following components:
- Engine mounting frames
- Transmission bellhousing
- On-board starter motor
- Airbox intake including restrictor and filter
- Air jack system (front and rear) is supplied
- Exhaust system

INSTRUMENTATION

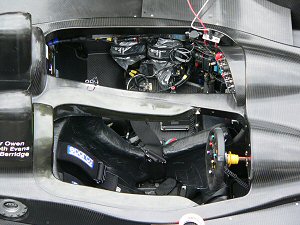

  Motec ADL integrated dash/ logger. The system has the capability to be fully upgraded to suit customer’s data aquisition requirements, including a steering wheel mounted display.
OIL SYSTEM
  Dry sump with 10 litre oil tank
WHEELS
  Oz Wheels. Dimensions:
- Front 18” diameter x 11” wide
- Rear 18” diameter x 13” wide
Tyre Dimensions:
- Front 285/650 x 18” diameter
- Rear 325/650 x 18” diameter
Self-locking wheel hubs to facilitate pit stop
DIMENSION AND WEIGHT
  Overall and Bodywork dimensions within LMP2 rules. Target weight of regulation of 750 kg for complete car.
ELECTRICAL / ELECTRONICS
  Motec ADL integrated panel and data logging system. Military-spec chassis wiring loom with FIA-regulation emergency power cut-off switch. All electrics are mounted directly to the inside of the monocoque for protection, access and reliability.
DMS RT40 12 volt high energy battery for engine starts plus jump battery/recharger plug. Two headlights housed in the nose section plus indicators, two rear red brake lights. Starter: Tilton.
COOLING SYSTEM
  Twin water radiators for engine with separate oil cooler. Charged-air intercooler for turbo engine
FUEL SYSTEM
  Maximum fuel cell capacity can be up to 90 litres. Regulation capacity is achieved by fitting fuel-displacement materials if necessary.
Fuel pump: Bosch
STEARING
  Rack and pinion.
OPTIONNAL
  Semi-auto shift system ( for LMP1 only )
Kyaba power steering
Upgrade kit for B01/60 chassis.

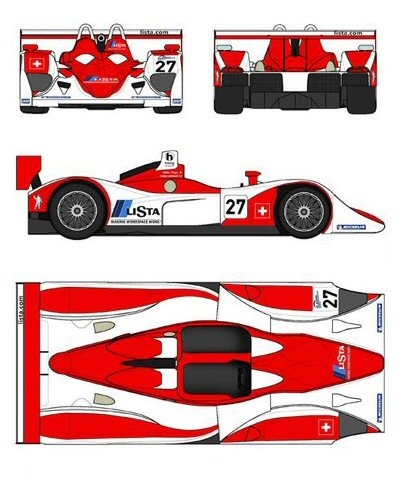

PLANS and DETAILS

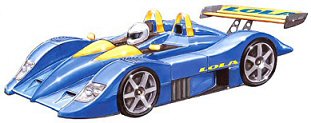

Initial preview
 Revised preview 2004-08

2004-09 / Wind Tunnel Scale 1/2


Final Design 2005-03






B05/40 - AER Turbo


B05/42 - Nicholson McLaren


B05/40 - Judd

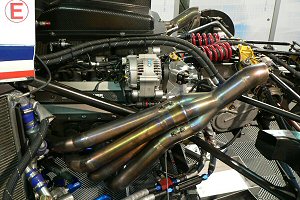

B05/40 - MG
B05/40 - Zytek V8


B06/43 - Acura


B07/40 - Mazda
