| FOR SALE! Rifle Superbike Fairing for ZRX1100 & Etc | |||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||

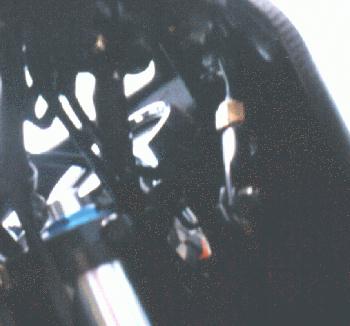

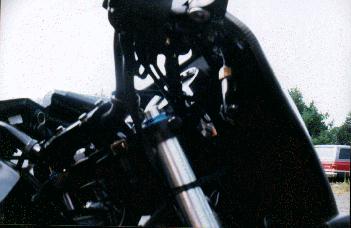

| These two photos show the all important mounting of the "Collet -Struts". Rifle provides these with the mounting kit. The Brass nipple shown allows adjustment. Below this you can see the mounting Bolt and Nut on the Bottom of the strutt --- This bolt PASSES THROUGH THE STOCK FAIRNG MOUNT, providing a very secure mounting point. The top goes to the fairings mounting frame. | |||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||

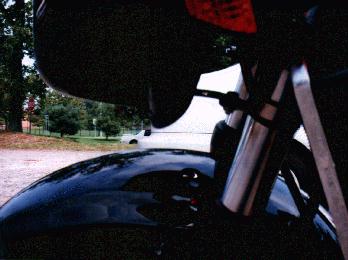

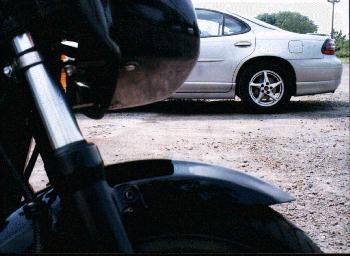

| The bottom mounts. One small problem -- the provided hose clamps are too small -- you will need to buy a pair of larger ones at your local Auto parts store. You can see the bolt heads on the right. To order or for info -- contact Rifle at http:// www.rifle.com or email [email protected] 1-800-262-1237 |
|||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||

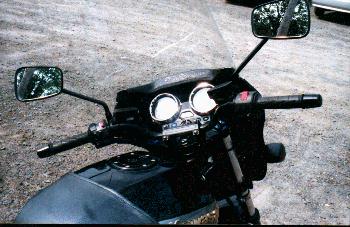

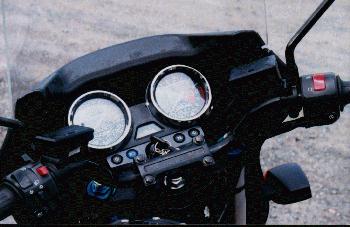

| If left un-trimmed, the cockpit's Dash would cover the top portion of the Tach & Speedo. Unfortunately, with everything black, it is hard to see where the cut is -- but a piece of moulding can be seen just above the gauges. The rough cut I made can be seen on the right as the Dash ends before the windscreen -- you can do better. Again -- if you screw up the Dash -- you can get another for about $20. It does not destroy the fairing! | |||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||
| To get maximium benefit from this fairing -- order the Custom Sized 21" Windscreen! |
|||||||||||||||||||||||||||||
| Click here to return to Homepage | |||||||||||||||||||||||||||||
| You Are Visitor # | |||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||

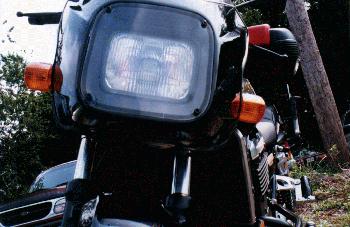

| The mounting hardware is largely concealed from view behind the fairing, which improves the overall look. I have other pictures at www.geocities.com/lje777 Visit www.zrx1100.com |
|||||||||||||||||||||||||||||
