Mishayla's Liquid Cooled Neon - Car Audio System

PPI Pro 12 (x2)

Click on the thumbnail to see a fullsize picture

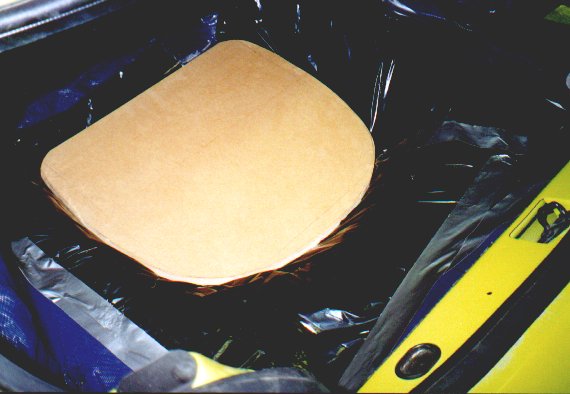

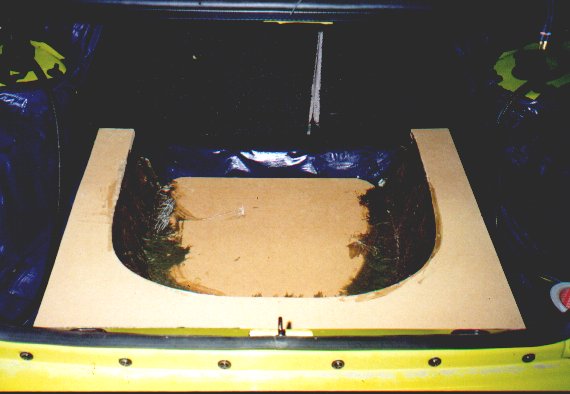

The spare tire wheel was lined with duct tape and a garbage bag. A 3/4" piece of MDF was used as the bottom piece.
Fibreglass walls were attached to the MDF piece.

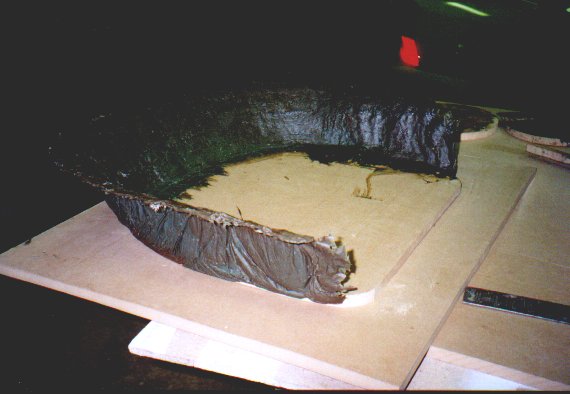

The MDF and fibreglass removed from the car.
Another piece of MDF was attached to the existing enclosure with more fibreglass.

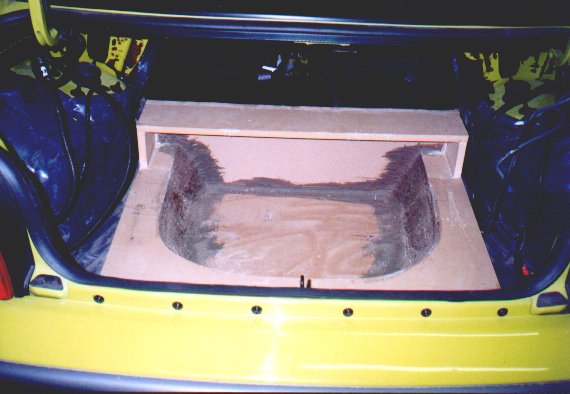

Another couple pieces and the bottom half of the enclosure was done. That's right it's a two piece box assembled in the car.

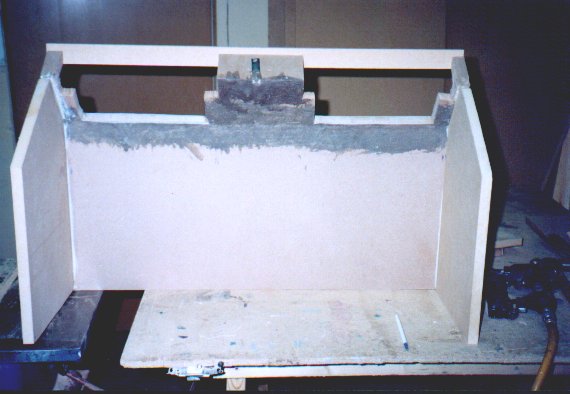

The top half of the enclosure well under way.

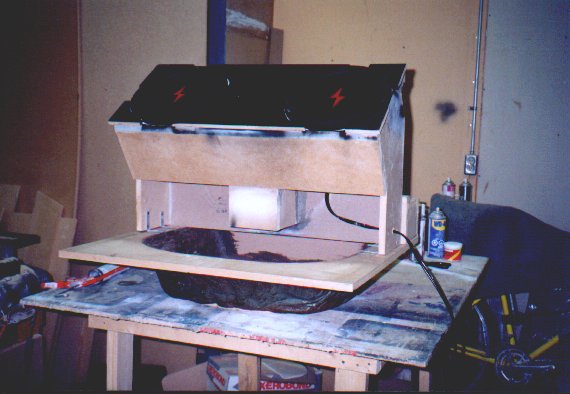

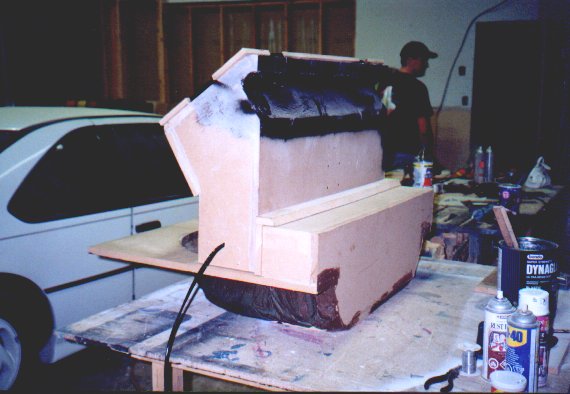

The top half, mostly finished, being test fitted to the bottom half.

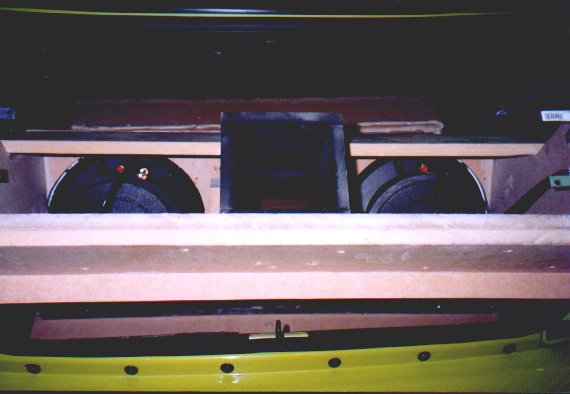

Another view of the box. Keep in mind the subs fire towards the rear of the car.

A shot of the wiring termination on the subs.

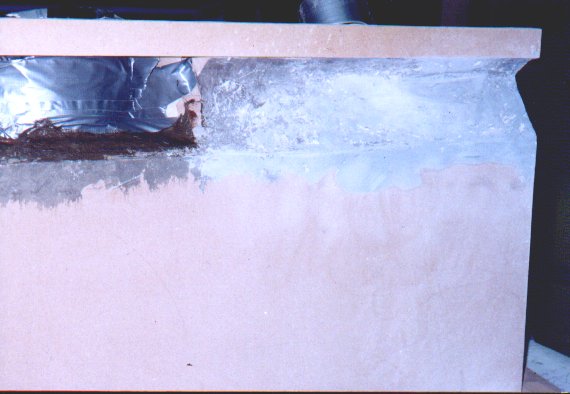

It was a tight fit for the huge magnet assembly, so the enclosure was fibreglassed around the subs.

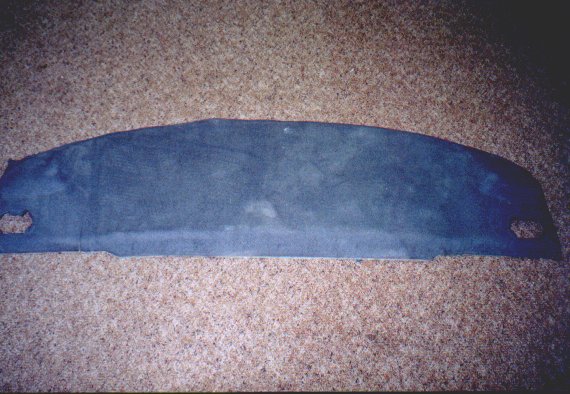

Factory back deck carpet...

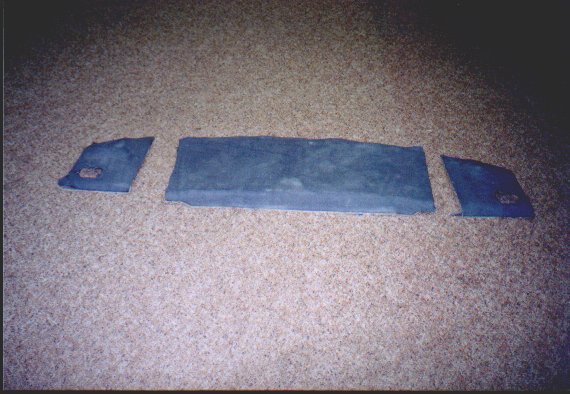

...cut into pieces.

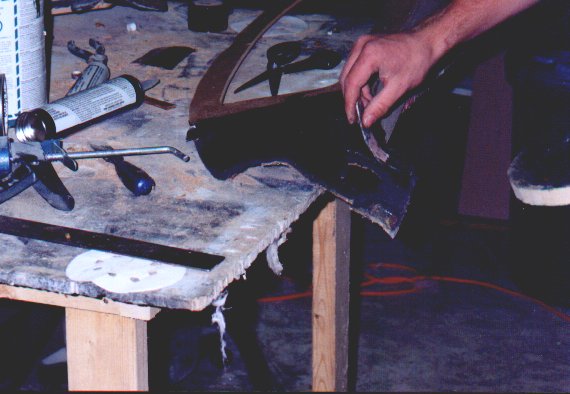

Some MDF and fibreglass and a new back deck starts to take shape.

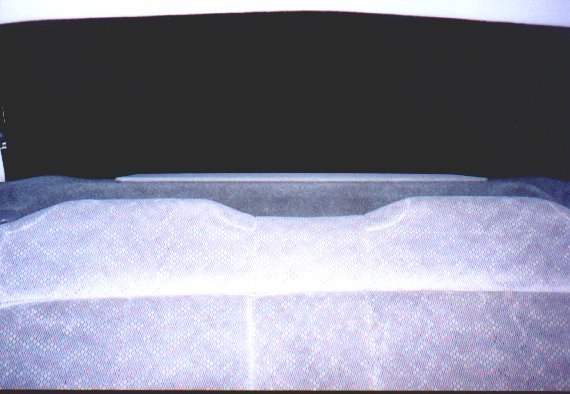

Finished with carpet and a grille. Looks alot higher than factory - it is. But still lower than the spoiler, allowing a clear line of sight out of the rear window.

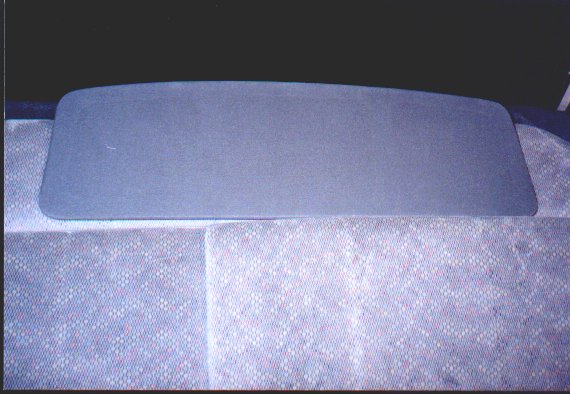

Here's what the grille looks like.

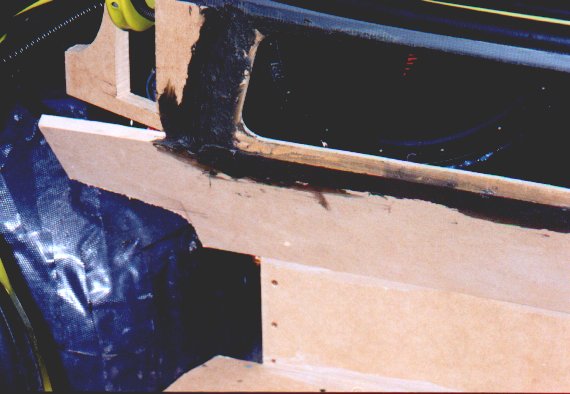

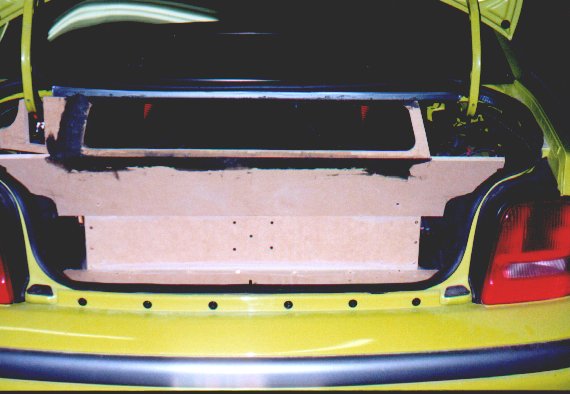

The start of the trim piece for the trunk. As per usual it's done with MDF and fibreglass.

The subs are visible in the rear of the car. No more wondering what's behind the back seat.

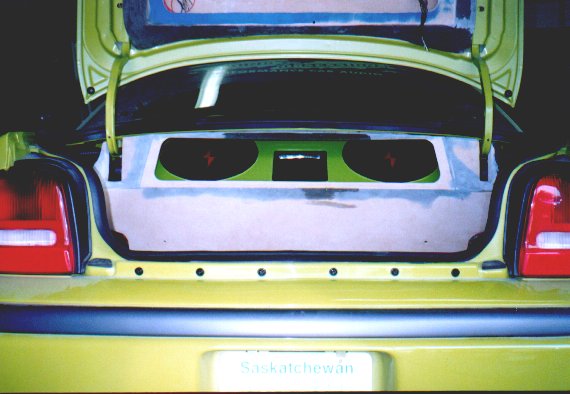

All finished sanding...just needs some plexi and carpet.

Done! With the grille off and the neon lights on, you can see half the subs in the rear window and the other half through the plexi. Very cool.
�
More pictures coming soon!

Use the Pull-down menu to View the Install of the Selected Component

Hosted by www.Geocities.ws

The spare tire wheel was lined with duct tape and a garbage bag. A 3/4" piece of MDF was used as the bottom piece.		Fibreglass walls were attached to the MDF piece.
The MDF and fibreglass removed from the car.		Another piece of MDF was attached to the existing enclosure with more fibreglass.
Another couple pieces and the bottom half of the enclosure was done. That's right it's a two piece box assembled in the car.		The top half of the enclosure well under way.
The top half, mostly finished, being test fitted to the bottom half.		Another view of the box. Keep in mind the subs fire towards the rear of the car.
A shot of the wiring termination on the subs.		It was a tight fit for the huge magnet assembly, so the enclosure was fibreglassed around the subs.
Factory back deck carpet...		...cut into pieces.
Some MDF and fibreglass and a new back deck starts to take shape.		Finished with carpet and a grille. Looks alot higher than factory - it is. But still lower than the spoiler, allowing a clear line of sight out of the rear window.
Here's what the grille looks like.		The start of the trim piece for the trunk. As per usual it's done with MDF and fibreglass.

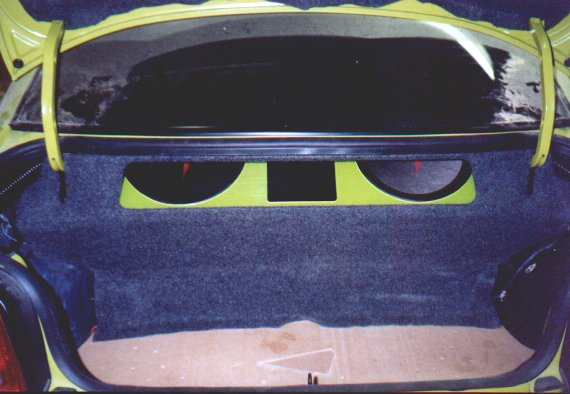

The subs are visible in the rear of the car. No more wondering what's behind the back seat.		All finished sanding...just needs some plexi and carpet.
