Eclipse 5301

Click on the thumbnail to see a fullsize image

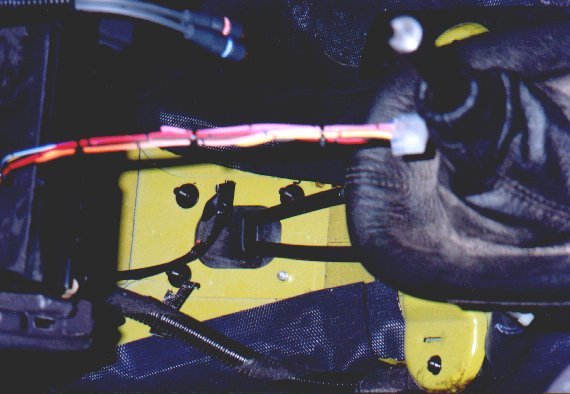

All four wires were tied at regular intervals, just because.

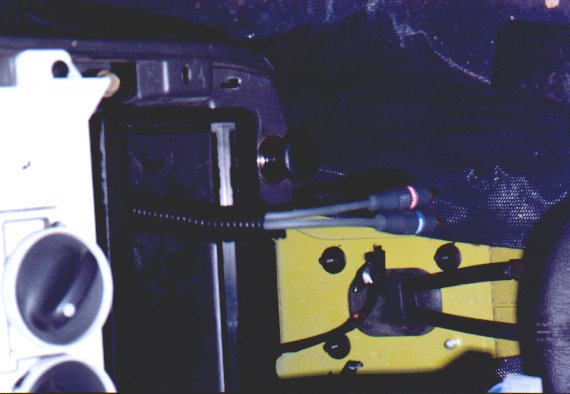

The RCA's were protected with loom.

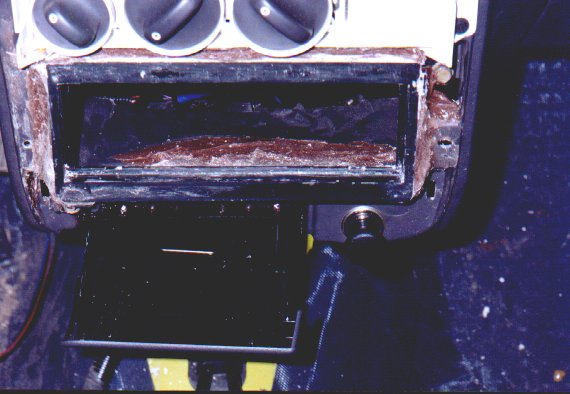

A dash kit was reinforced with fibreglass as Dodge only provides a 2 bolt mount for it.
The deck is trimmed in black plexiglass which has a backlit fuse status display engraved into the back of it. An LED comes on when the fuse blows.

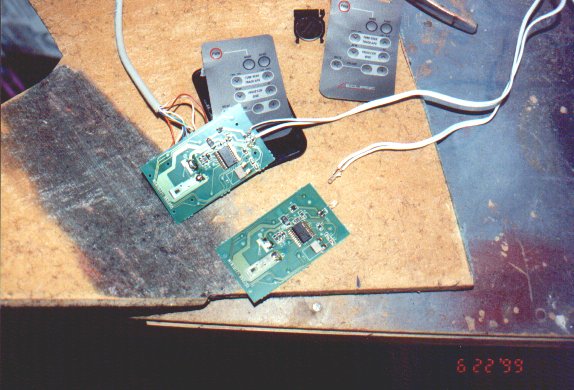

Some surgery on an Eclipse remote...this picture shows how the infrared LED was extended.

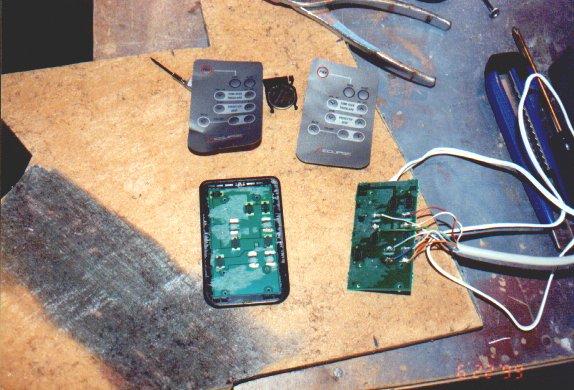

Here wires are added to the circuit board to allow momentary switches to be installed elsewhere.
